KNX Fan-Coil Actuator Compact Flush-mounted | 3-fold

Information

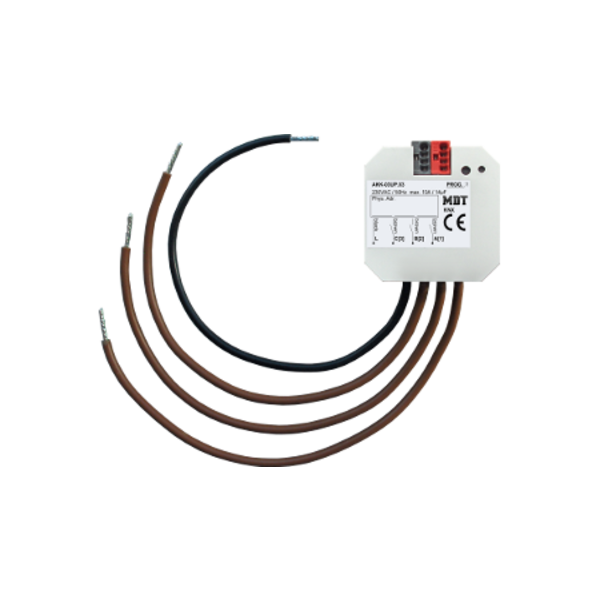

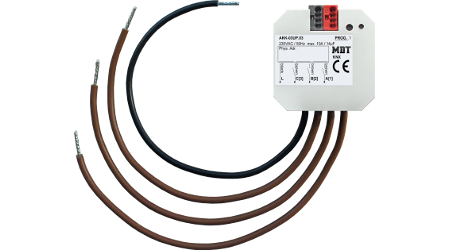

MDT AKK-03UP.03 KNX Switch Actuator with Fan-Coil Function, 3-fold, Flush-Mounted

The MDT AKK-03UP.03 is a compact KNX switch actuator with 3 channels and an integrated fan-coil function for controlling fans with three speeds and fan coil units. This device is suitable for both 2-pipe and 4-pipe systems, allowing manual and automatic control of fans and convectors. The outputs are interlocked through software to ensure efficient and safe operation.

Product Features

• 3-channel switch actuator with fan-coil function.
• Outputs interlocked via software control.
• Direct control by three 1-bit objects or a single 1-bit object (+/-).
• Automatic control by 1-byte control value (0-100%).
• Suitable for 2-pipe and 4-pipe systems.
• Output objects to control valves for heating/cooling.
• Day/Night function to limit fan speed at night.
• Emergency operation if the control variable fails.
• Switch actuator mode with time functions (switch-on/switch-off delay).
• Staircase lighting function with adjustable warning time.
• Status feedback for each channel (active/passive).
• Logical linking of binary data, 8 scenes per channel.
• Central switching functions and lockout functions for forced operation.
• Adjustable behavior in case of bus voltage return.
• Quick application download via ETS (long frame support from ETS 5).
• Flush-mounted installation in an electrical box.
• Manufactured in Germany, ISO 9001 certified.
• 3 years warranty.

Technical Data

• Number of outputs: 3
• Output switching ratings:
  • Ohmic load: 10 A
  • Capacitive load: 14 µF at 10 A
• Voltage: 230 V AC
• Maximum inrush current: 150 A / 150 µs
• Maximum load:
  • Incandescent lamps: 1500 W
  • Halogen lamps (230 V): 1200 W
  • Halogen lamps (electronic transformer): 500 W
  • Fluorescent lamps (not compensated): 500 W
  • Fluorescent lamps (parallel compensated): 120 W
  • Maximum number of electronic transformers: 2
• Relay lifespan (mechanical): 1,000,000 operations
• Maximum total current of the actuator: 16 A
• Fuse protection: 10 A
• KNX interface specification: TP-256 with long frame support for ETS 5
• Available application software from ETS 4
• Permitted wire gauge: KNX bus connection: Ø 0.8 mm, solid core
• Power supply: KNX bus
• Power consumption: typically < 0.3 W
• Operating temperature range: 0 ... 45 °C
• Enclosure protection rating: IP20
• Dimensions (W x H x D): 41 x 41 x 22 mm

Note: This device is suitable for use in dry rooms only and must be installed in a closed compact box or in a power distribution board on DIN rails (35 mm). It is recommended to use the ETS software for project design and commissioning.
