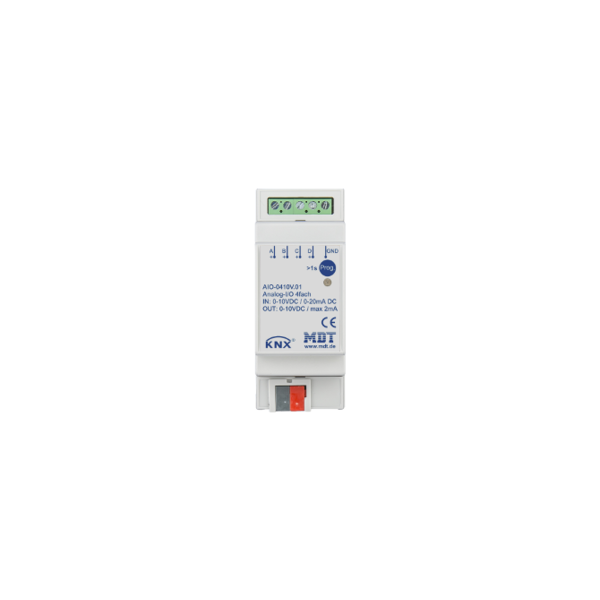

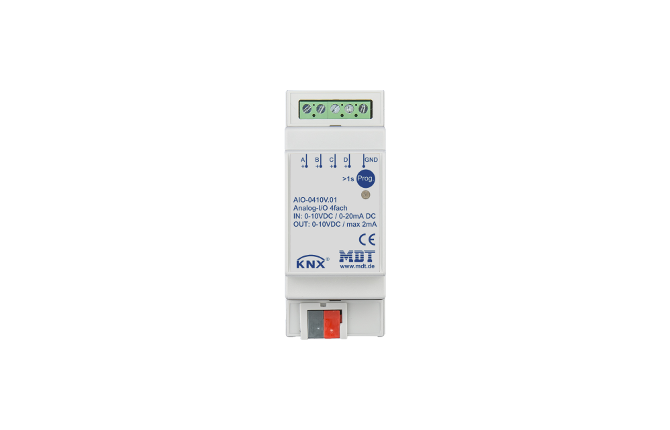

KNX Analog Input/Output DIN rail 0-10 V | 4-fold
€136,50 Excl. tax
€182,00 Excl. tax
€165,17 Incl. tax €220,22 Incl. tax. Out of stock, but available
€165,17 Incl. tax €220,22 Incl. tax. Out of stock, but available
The analog input/output is suitable for devices with 0-10V inputs and recording 0-20mA/0-10V data. Each channel is independently configurable. Width: 2 TE. Read more
Specifications
Brand:
MDT
Article number:
AIO-0410V.01
EAN:
4251916130015
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
MDT Analog In-/Output 4-fold 0-10V
The MDT KNX Analog In-/Output 4-fold is ideal for controlling devices with 0-10V inputs, such as ventilation systems, and for recording 0-20mA (4-20mA) or 0-10V measurement data, for example from level or pressure sensors. Each channel can be configured independently as input or output and is galvanically isolated from the KNX bus.
Main Features:
- Each channel can be independently configured (input/output).
- Inputs/outputs are galvanically isolated from the bus.
- Inputs/outputs are galvanically connected together.
- Voltage for output operation is generated internally by the actuator, no external power supply required.
- Input mode: 0-10V/2-10V or 0-20mA/4-20mA (switchable).
- Output mode: 0-10V, controlled via 1 Byte, 2 Byte float or 1 Bit objects.
- Day/night function to limit control value.
- Emergency mode if control value fails.
- Min/max function and wire breakage detection available in the input module.
- Threshold and traffic light function available for inputs.
- Quick application download with long frame support (ETS5 or higher).
- Dimensions (W x H x D): 41 x 41 x 12 mm (flush-mounted version).
- Width: 2TE for DIN rail mounting (AIO-0410V.01 version).
Technical Specifications:
- Number of channels: 4
- Inputs: 0-10V/2-10V or 0-20mA/4-20mA (switchable)
- Internal resistance: 130kΩ
- Current loop: 0-20mA/4-20mA
- Current loop resistance: 266Ω
- Outputs: 0-10V
- Output current: max. 2mA
- Minimum load resistance: 5kΩ
- KNX interface: TP-256
- Available application software: ETS 4/5
- Permitted wire gauge: 0.5-4.0 mm² solid core, 0.5-2.5 mm² stranded
- KNX bus connection: 0.8 mm Ø, solid core
- Power supply: KNX bus
- Power consumption: typ. < 0.3W
- Operating temperature range: 0°C to +40°C
- Enclosure: IP 20
- Dimensions (DIN rail version): 2TE
The MDT KNX Analog In-/Output 4-fold is ISO 9001 certified and manufactured in Germany. It comes with a 3-year warranty.
