KNX Analog Input/Output Flush-mounted 0-10 V | 2-fold
€102,00 Excl. tax
€136,00 Excl. tax
€123,42 Incl. tax €164,56 Incl. tax. In stock (1)
€123,42 Incl. tax €164,56 Incl. tax. In stock (1)
The analog input/output provides flexible control and data recording for devices with 0-10V signals, such as ventilation systems and sensors. Each channel can be configured independently as input or output. Read more
Specifications
Brand:
MDT
Article number:
AIO-0210V.01
EAN:
4251916130008
Availability:
In stock (1)
Delivery time:
Will be shipped within 1 to 2 working days.
Information

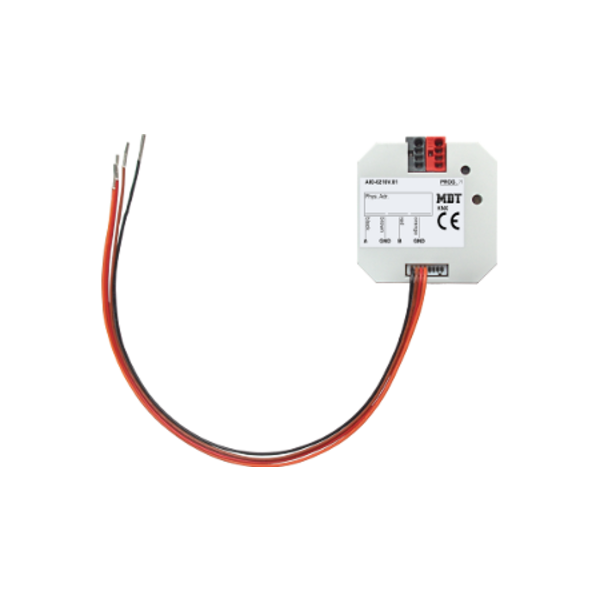

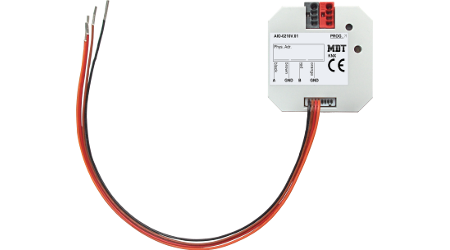

MDT Analog Input/Output 2-fold 0-10V | Flush-mounted
The MDT analog input/output is suitable for controlling devices with 0-10V inputs (e.g. ventilation systems) and recording 0-20mA/0-10V measurement data, such as fill level or pressure sensors. Each channel can be configured independently as input or output and is galvanically separated from the KNX bus.
Key product features:
- Each channel can be independently configured as input/output
- Galvanic isolation from the bus and between inputs/outputs
- No external power supply required, output voltage is generated internally
- Supported input signals: 0-10V, 2-10V or 0-20mA, 4-20mA (switchable)
- Output signal: 0-10V, controlled via 1Byte, 2Byte floating point or 1Bit objects
- Day/night function to limit control values
- Emergency mode activates on faulty values
- Min/max detection, threshold, and wire break detection
- Fast application download (ETS5 or higher, long frame support)
- Suitable for installation in standard flush-mounted boxes
Technical specifications:
- Dimensions (WxHxD): 41 mm x 41 mm x 12 mm
- Power supply: via KNX bus, typical consumption <0.3W
- Input signals: voltage input 0-10V / 2-10V, current loop 0-20mA / 4-20mA
- Resistance for voltage input: 130kΩ
- Resistance for current loop: 266Ω
- Output voltage: 0-10V
- Maximum output current: 2mA
- Minimum load on output: 5kΩ
- Operating temperature range: 0°C to +40°C
- Protection class: IP20 (for indoor use only)
- KNX interface: TP-256
- Supported wire gauges: 0.5-4.0 mm² solid core, 0.5-2.5 mm² stranded
The device is produced in Germany and comes with a 3-year warranty. Certified according to ISO 9001.
