Lumento X3 v2 PWM CV Dimmer 3 channels for LED loads
€151,83 Incl. tax €204,07 Incl. tax. Out of stock, but available
Specifications
Information

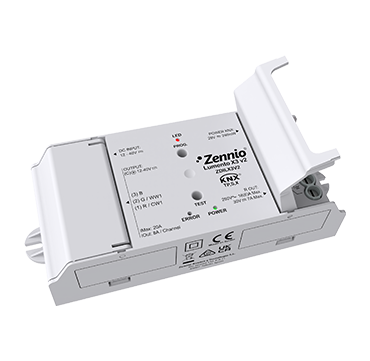

Product Description Lumento X3 v2 art.nr.; ZDILX3V2
The Lumento X3 v2 is a 3-channel Constant Voltage PWM LED dimmer designed for DC LED loads with a power supply range of 12-40 V. This device provides advanced functionalities, including support for RGB configurations, Human Centric Lighting (HCL), and color temperature control. Compatible with KNX Secure, this dimmer ensures safe and reliable communication. Each channel supports a maximum load of 8 A, with a total load capacity of 20 A per device.
Main Features:
- Constant Voltage regulation via 3 PWM channels (1000 Hz)
- Configurable channels: independent, RGB, or TW + 1 independent channel
- Relay output (16 A) for controlling LED power supplies or other applications
- Compatible with KNX Data Secure
- Manual operation via test button with LED status indicator
- Data retention in case of KNX bus failure
- Compact size: 137.4 x 55 x 30.5 mm, suitable for installation in distribution boxes or false ceilings
- Protection against short circuits and overheating
Technical Specifications:
- Number of channels: 3 (Constant Voltage PWM)
- Maximum load per channel: 8 A
- Total maximum load: 20 A
- Relay output: 16 A, potential-free
- Power supply: 12-40 V DC
- KNX voltage: 29 V DC, consumption: max. 10 mA
- Operating temperature: 0°C to +55°C
- Protection level: IP20
