KNX RF+ Switch Actuator 1-fold Flush, 230V, 10A
€143,39 Incl. tax €191,18 Incl. tax. In stock (8)
Specifications
Information

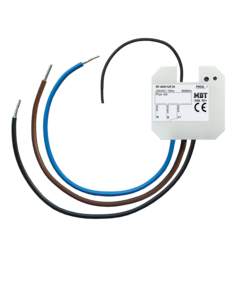

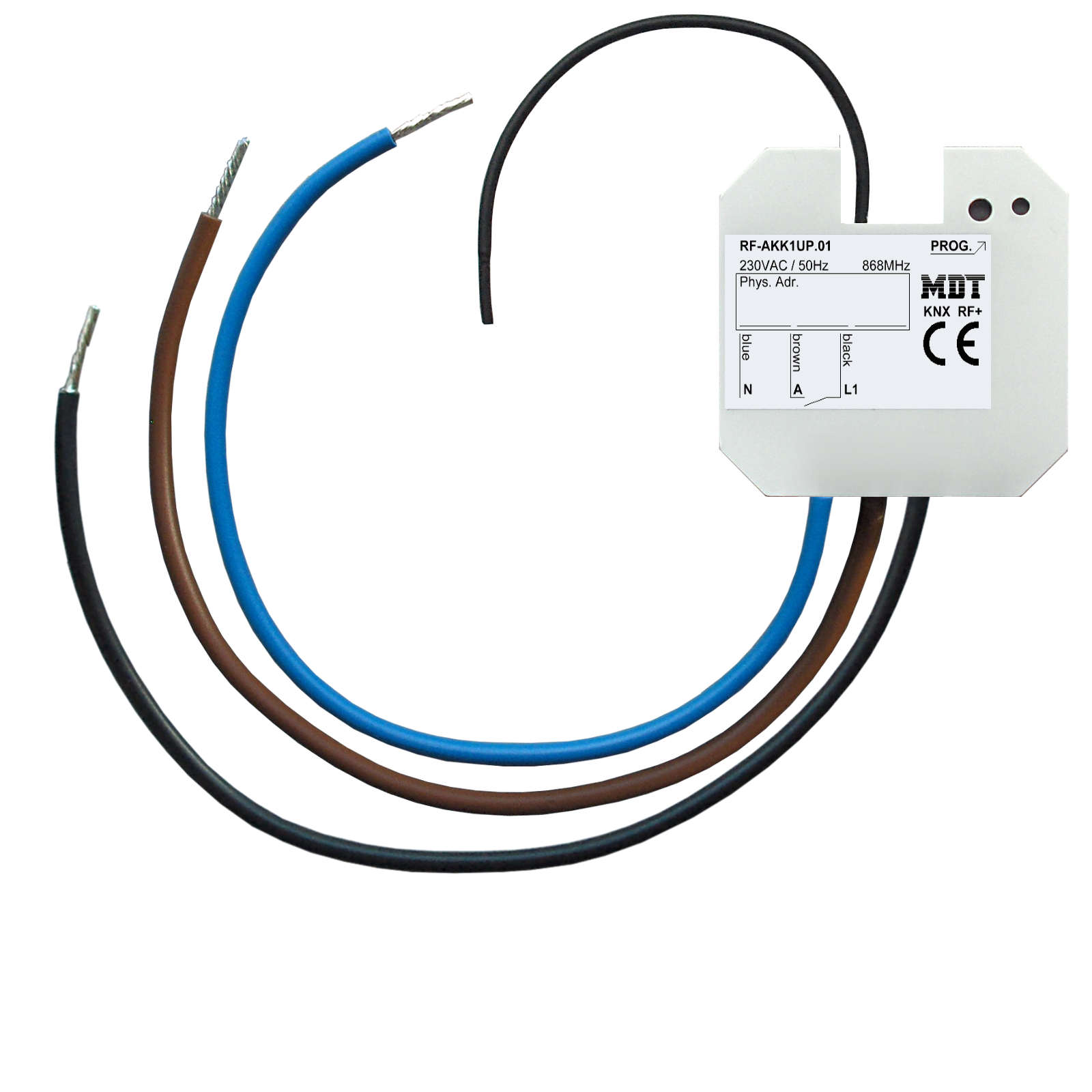

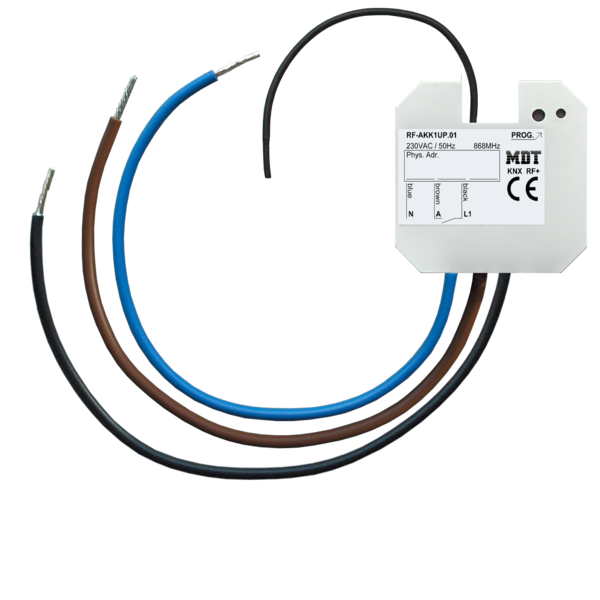

KNX RF+ Switch Actuator 1-fold - RF-AKK1UP.01
The MDT KNX RF+ Switch Actuator 1-fold receives KNX / EIB telegrams and switches 1 independent load. The device is ideal for conventional installations without KNX bus cables. The connection to the KNX bus is realized via the MDT KNX RF+ Line Coupler. It uses monostable relays and provides extensive functions like logical operation, status response, block functions, central switching, delay functions, and staircase lighting function. Additionally, it provides time and scene control.
Key Features:
- New KNX RF+ protocol in system mode
- Monostable relay
- Supports ETS5 for project design and commissioning
- Functions like switch-on/off delay, staircase lighting, and logical linking of binary data
- 8 scenes per channel
- Central and block functions
- Adjustable behavior in case of bus voltage failure or recovery
- Power supply: 230VAC, max. 10A switching power
- Compatible with KNX RF S-Mode
- Dimensions: 41mm x 41mm x 24mm
- IP20 enclosure
- Operating temperature: 0 to +45°C
In case of power failure, all outputs are switched off, and upon mains voltage recovery, the relay position is restored. Download the application software via the MDT website.
