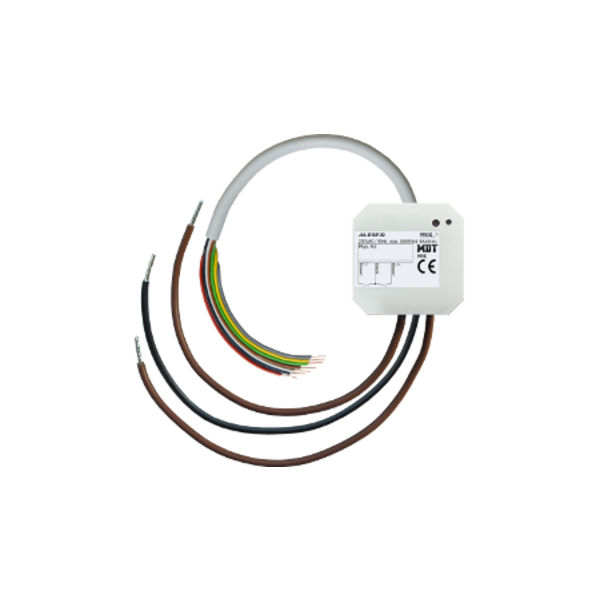

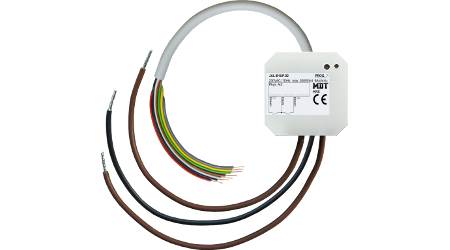

1-fold shutter actuator flush 6A-300W 230V with 4 potential-free inputs

0 Review(s)

€88,40 Excl. tax €136,00 Excl. tax
€106,96 Incl. tax €164,56 Incl. tax. Out of stock, but available

Unit price: €88,40 / Piece

Flush-mounted shutter actuator for 1 channel. Compatible with existing buttons and window contacts. Supports automatic shading, precise positioning, and various alarm and central functions. Read more

Specifications

Brand:

MDT

Article number:

JAL-B1UP.02

EAN:

4251916130664

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

Flush-Mounted Shutter Actuator - 1 Channel

The flush-mounted version of the MDT Shutter Actuator is ideal for decentralized installation on shutter or sunblind motors. This model supports the use of existing conventional buttons or window contacts, which can be directly connected and evaluated via floating binary inputs.

Key Features:

Compatible with existing conventional shutter buttons and window contacts
Supports automatic shading and slat adjustment with sun position calculation
Precise positioning via tip operation
Adjustable travel times for upward and downward movements
Extended 1-bit automatic positions and logical functions
1-byte absolute positioning for shutters and blinds
Alarm, central, and block functions
Priority and forced operation with automatic release time
Configurable behavior in case of bus voltage failure or recovery
Includes 3-year warranty

Technical Specifications:

Number of Channels	1
Switching Rating per Channel	6A
Voltage	230VAC
Maximum Load per Channel	300W per motor
Output Life Expectancy (mechanical)	1,000,000 operations
Protection Class	IP20
Dimensions (W x H x D)	41mm x 41mm x 22mm

For project design and commissioning of the MDT Shutter Actuator, it is recommended to use the ETS software. Download the application software at www.mdt.de/Downloads.html.
