GVS KI/U 04.01.1 KNX push-button interface | 4-fold potential-free
€67,70 Excl. tax
€89,55 Excl. tax
€81,92 Incl. tax €108,36 Incl. tax. Out of stock, but available
€81,92 Incl. tax €108,36 Incl. tax. Out of stock, but available
Push-button interface with 4 outputs and 4 binary inputs for potential-free application, suitable for 60mm boxes. Supports switching, dimming, blind control, and scene storage. Power: 21-30V DC via bus. Read more
Specifications
Brand:
GVS Videostar
Article number:
KI/U 04.01.1
EAN:
634949971215
SKU:
636839
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

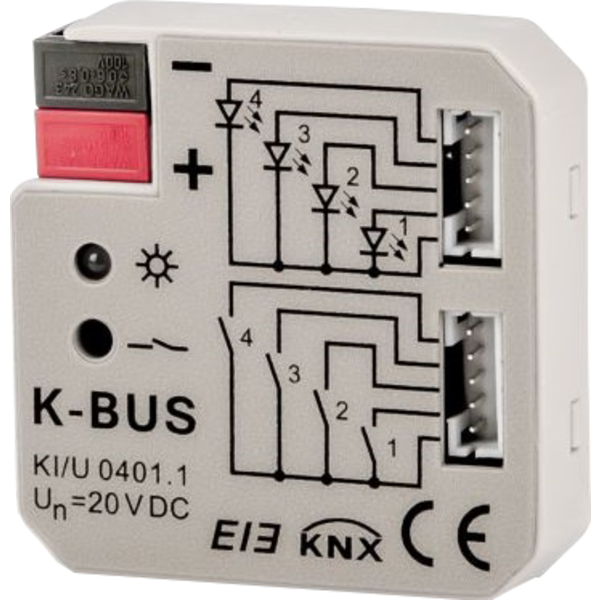

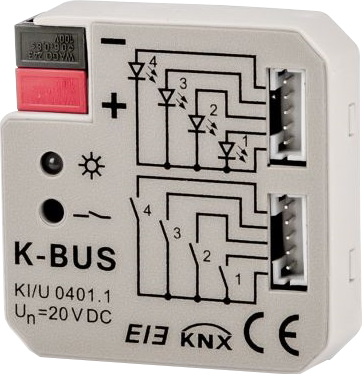

GVS 4-Fold Push-Button Interface for 60mm Flush-Mounted Boxes
The GVS 4-fold push-button interface offers four independently configurable outputs and four binary inputs suitable for potential-free applications. The device is designed for installation in 60mm flush-mounted boxes behind conventional switches or buttons. This interface converts each action of the connected button into a command sent to the actuator.
Main Features
- Switching and dimming functions (1-button operation supported)
- Blind and shutter control (1-button operation supported)
- Value transmission and forced control
- Scene storage and control
- Switching sequences
- Pulse counting
- Multi-operation mode
- LED functions for status indication
Technical Specifications
- Power supply: 21-30V DC via the bus
- Inputs/outputs: 4, configurable as potential-free binary inputs or outputs
- Input signal voltage: 20V DC
- Input current: 0.5mA
- Output voltage: 5V DC
- Max. output current: 2.5mA, limited by a 2kΩ resistor
- Protection: Short-circuit proof, overload protection, reverse polarity protection
- Installation: Suitable for 60mm flush-mounted boxes
- Dimensions: 46 x 46 x 11.7mm
- Operating temperature: -5°C to +45°C
Important Note: Installation and commissioning should only be carried out by qualified personnel. Adhere to relevant standards and guidelines for safe and correct operation.
