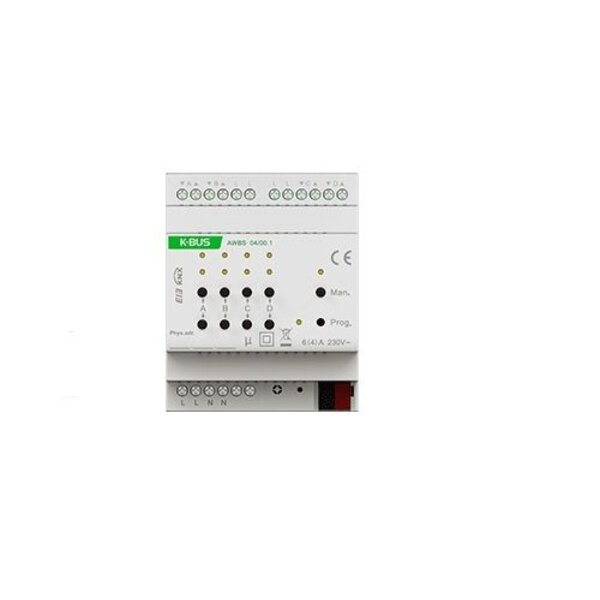

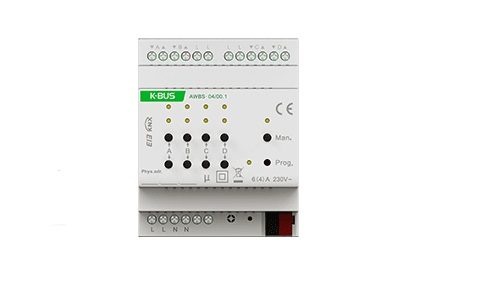

GVS 636830 KNX shutter actuator | 4-fold 6Amp
€155,64 Excl. tax
€205,88 Excl. tax
€188,32 Incl. tax €249,11 Incl. tax. Out of stock, but available
€188,32 Incl. tax €249,11 Incl. tax. Out of stock, but available
Smart blind and shutter control with 4 outputs at 6A for precise light regulation, weather protection, and auto sunshade. DIN-rail, manual operation. Read more
Specifications
Brand:
GVS Videostar
Article number:
AWBS-04/06.2
EAN:
634949971208
SKU:
636830
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
Intelligent Blind and Shutter Control with KNX, 4x 6A
This advanced KNX actuator provides extensive capabilities for controlling blinds and shutters. With 4 independent outputs of 6A each, it allows precise light control and protects the space from weather conditions such as wind, rain, and frost. The automatic sunshade function ensures comfort and energy savings.
Features:
- Movement Directions: Up/Down
- Stop/Slat Adjustment: Precise control
- Position Setting: 0…100%
- Automatic Sun Protection: Integrated
- Weather Monitoring: Wind, rain, and frost
- Block, Status, and Forced Operation: Built-in
- LED Display: Status indication
- Operation Modes: Venetian Blind and Shutter
Technical Specifications:
- Power Supply: 21~30 V via KNX bus
- Operating Load: <12mA
- Power Consumption: Max. 360 mW
- Outputs: 4 independent, each 6A
- Switching Voltage: 230V AC 50/60 Hz
- Dimensions: 72 x 90 x 64.2 mm
- Mounting: 35 mm DIN-rail
Important Note: Project planning and commissioning require ETS (from version 3.0d). Multi-phase installation on a DIN rail is possible.
