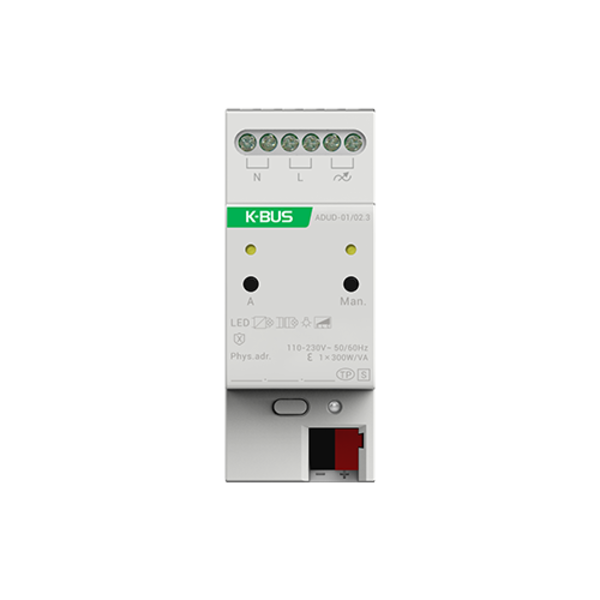

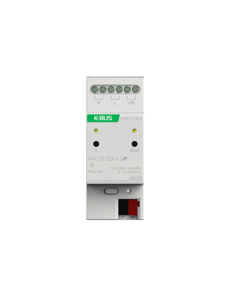

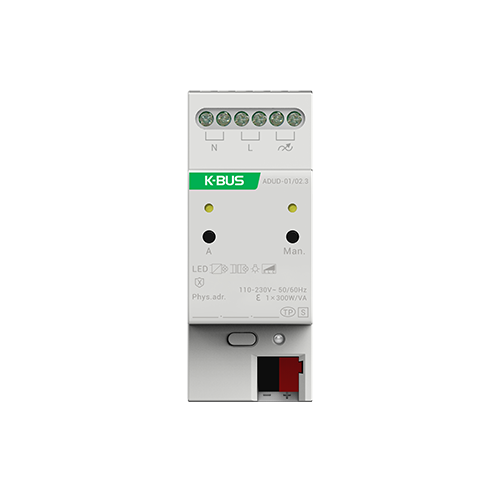

English: The GVS KNX Universal Dimmer Actuator, 1-channel, provides advanced dimming functionality for various types of lamps, including incandescent, halogen, LED, and energy-saving lamps. With KNX Data Secure, this device offers reliable protection against unauthorized access, ideal for modern lighting control systems. This dimmer supports both leading and trailing edge dimming and offers multiple dim curves, such as linear, exponential, and logarithmic.

Main Features

• Switching and relative/absolute dimming capability
• Status feedback and fault notifications for short-circuit, over-voltage, under-voltage, and over-temperature
• Supports six dim curves: linear, exponential, cubic, quadratic, logarithmic, root, and user-defined
• Leading and trailing edge phase dimming for optimal dimming performance
• Manual operation and output indication
• KNX Data Secure for enhanced security
• Central control support (only for 2- and 4-channel models)
• Individual or parallel output (parallel to expand load, only for 2- and 4-channel models)
• Additional functions like staircase lighting, flashing switch, delay, scenes, threshold, forced operation, and logical functions (AND, OR, XOR)

Technical Specifications

• Power Supply: Bus voltage 21-30V DC via KNX bus
• Bus Current: <6mA/24V, <5.5mA/30V (1-channel); <7mA/24V, <6mA/30V (2-channel); <7.5mA/24V, <6.5mA/30V (4-channel)
• Bus Consumption: <165mW (1-channel); <180mW (2-channel); <195mW (4-channel)
• Max Output Capacity (110V): 10-150W (for both leading and trailing edge)
• Max Output Capacity (230V): 10-300W (for both leading and trailing edge)
• Max Load HV LED (110V): 2-30W (leading edge), 2-150W (trailing edge)
• Max Load HV LED (230V): 2-60W (leading edge), 2-300W (trailing edge)
• Max Load LV LED with electronic transformer (110V): 2-40W (leading edge), 2-150W (trailing edge)
• Max Load LV LED with electronic transformer (230V): 2-80W (leading edge), 2-300W (trailing edge)
• Standby Loss: Approx. 0.7W
• Power Loss: ≤2W per channel
• Wiring: KNX bus connection and screw terminals for outputs
• Wire Range: 0.2-2.5 mm² (1-channel); 0.2-6.0 mm² (2/4-channel)
• Operating Temperature: -5°C to +45°C
• Storage Temperature: -25°C to +55°C
• Transport Temperature: -25°C to +70°C
• Humidity: <93%, no condensation
• Mounting: On 35mm DIN rail
• Dimensions: 36 x 90 x 64 mm (1-channel); 72 x 90 x 64 mm (2-channel); 144 x 90 x 64 mm (4-channel)
• Weight: 0.2kg (1-channel); 0.3kg (2-channel); 0.5kg (4-channel)

Available Models

• GVS 88188759: Universal Dimmer Actuator, 1-channel - ADUD-01/02.3 - KNX Secure
• GVS 88188032: Universal Dimmer Actuator, 2-channel - ADUD-02/02.3 - KNX Secure
• GVS 88188773: Universal Dimmer Actuator, 4-channel - ADUD-04/02.3 - KNX Secure

With KNX Data Secure support, this dimmer actuator ensures a reliable and secure lighting solution for residential and commercial applications. Its versatility and compatibility with various lamp types make it an ideal energy-efficient solution for modern lighting control systems.
