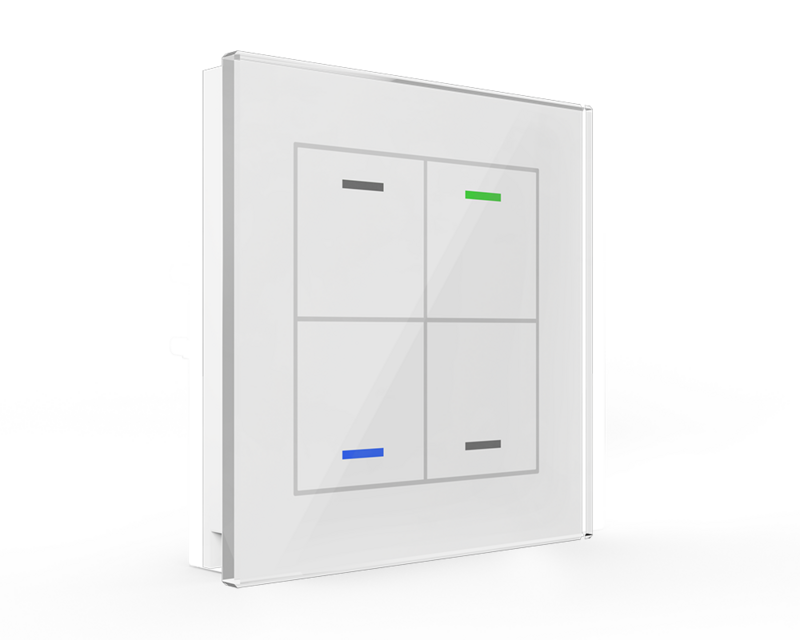

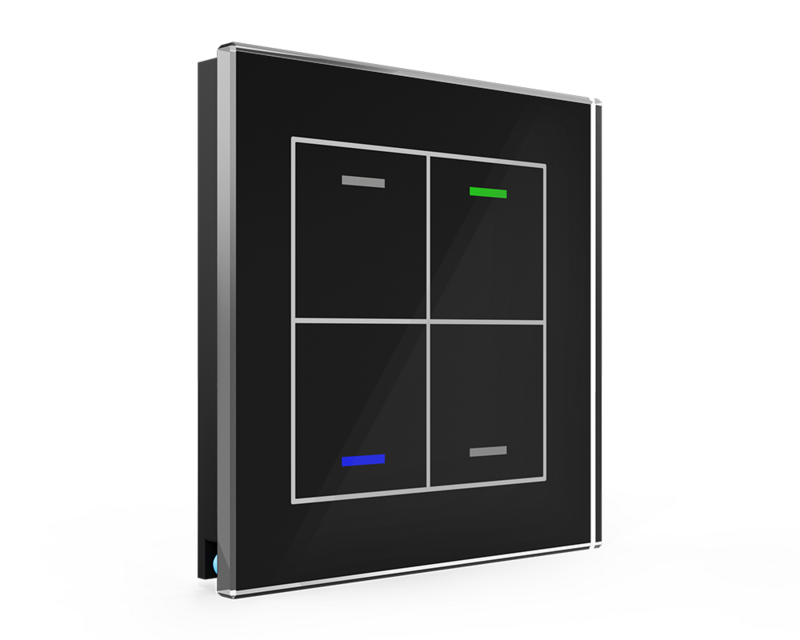

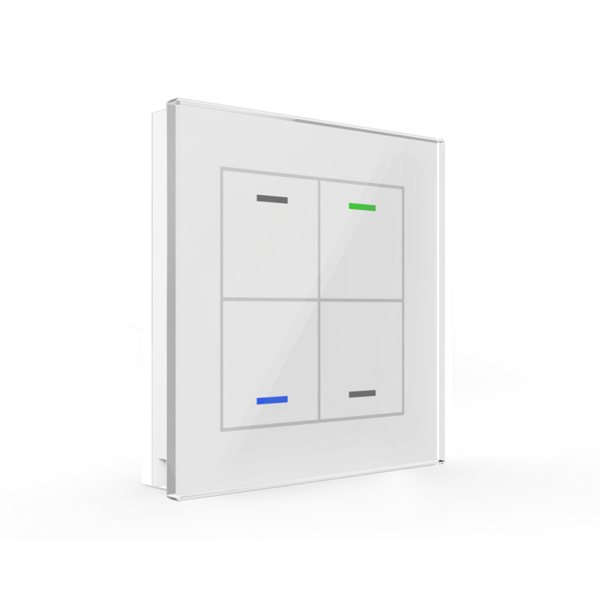

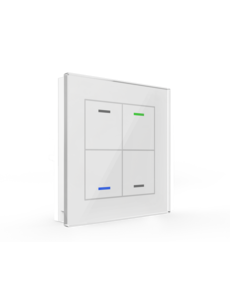

Glass Push-button II Lite 4-fold with Temperature Sensor

Technical Data and Variants

The Glass Push-button II Lite 4-fold with temperature sensor is designed for use in smart homes and commercial automation systems. This KNX device supports both 1- and 2-button operation per sensor area, with RGBW status LEDs displaying the current status and programmable via internal or external objects. The LED brightness can be adjusted based on day/night settings or a brightness object, offering additional flexibility in various environments.

The integrated temperature sensor provides accurate measurements in the range of 0°C to +40°C, ideal for climate control in smart homes. Thanks to the multi-touch function, up to four values or data points can be sent to different objects with a single button press. The device also features four integrated logic blocks and a slap function with an additional switch channel, which can be useful for controlling group functions such as operating multiple blinds or light groups simultaneously.

Key technical features of the Glass Push-button II Lite:

• Dimensions (W x H x D): 92 mm x 92 mm x 29.5 mm
• Protection class: IP20
• Operating temperature range: 0°C to +45°C
• Temperature sensor range: 0°C to +40°C
• Power supply: KNX bus, typical consumption <0.5W
• 1- and 2-button operation for switching, dimming, blind control, and value input
• RGBW LED status display per button pair, adjustable via day/night or brightness object
• Slap function for group control with additional switch function
• Four programmable logic blocks
• Installation in a standard flush-mounted box
• Built-in bus coupling unit
• Manufactured in Germany according to ISO 9001 standards, 3-year warranty

Other available models in this series include:

• BE-GTL10W.01 Glass Push Button II Lite 1-fold, White, NEUTRAL version
• BE-GTL1TW.01 Glass Push Button II Lite 1-fold, White, NEUTRAL version with temperature sensor
• BE-GTL10W.A1 Glass Push Button II Lite 1-fold, White, UP/DOWN symbol
• BE-GTL1TW.B1 Glass Push Button II Lite 1-fold, White, I/O symbol, with temperature sensor
• BE-GTL10S.01 Glass Push Button II Lite 1-fold, Black, NEUTRAL version
• BE-GTL1TS.01 Glass Push Button II Lite 1-fold, Black, NEUTRAL version with temperature sensor
• BE-GTL10S.A1 Glass Push Button II Lite 1-fold, Black, UP/DOWN symbol
• BE-GTL1TS.B1 Glass Push Button II Lite 1-fold, Black, I/O symbol, with temperature sensor
• BE-GTL20W.01 Glass Push Button II Lite 2-fold, White, NEUTRAL version
• BE-GTL2TW.01 Glass Push Button II Lite 2-fold, White, NEUTRAL version with temperature sensor
• BE-GTL20W.A1 Glass Push Button II Lite 2-fold, White, UP/DOWN symbol
• BE-GTL2TW.B1 Glass Push Button II Lite 2-fold, White, I/O symbol, with temperature sensor
• BE-GTL2TW.C1 Glass Push Button II Lite 2-fold, White, UP/DOWN and I/O symbol, with temperature sensor
• BE-GTL2TW.D1 Glass Push Button II Lite 2-fold, White, I/O and UP/DOWN symbol, with temperature sensor
• BE-GTL20S.01 Glass Push Button II Lite 2-fold, Black, NEUTRAL version
• BE-GTL2TS.01 Glass Push Button II Lite 2-fold, Black, NEUTRAL version with temperature sensor
• BE-GTL20S.A1 Glass Push Button II Lite 2-fold, Black, UP/DOWN symbol
• BE-GTL2TS.B1 Glass Push Button II Lite 2-fold, Black, I/O symbol, with temperature sensor
• BE-GTL2TS.C1 Glass Push Button II Lite 2-fold, Black, UP/DOWN and I/O symbol, with temperature sensor
• BE-GTL2TS.D1 Glass Push Button II Lite 2-fold, Black, I/O and UP/DOWN symbol, with temperature sensor
• BE-GTL40W.01 Glass Push Button II Lite 4-fold, White, NEUTRAL version
• BE-GTL4TW.01 Glass Push Button II Lite 4-fold, White, NEUTRAL version with temperature sensor
• BE-GTL40S.01 Glass Push Button II Lite 4-fold, Black, NEUTRAL version
• BE-GTL4TS.01 Glass Push Button II Lite 4-fold, Black, NEUTRAL version with temperature sensor

The models without temperature sensors can be found in a separate product overview at KNXWarehouse.com or check related products.
