Glass Push-button II Lite 2-fold with temp.sensor

Information

Datasheet

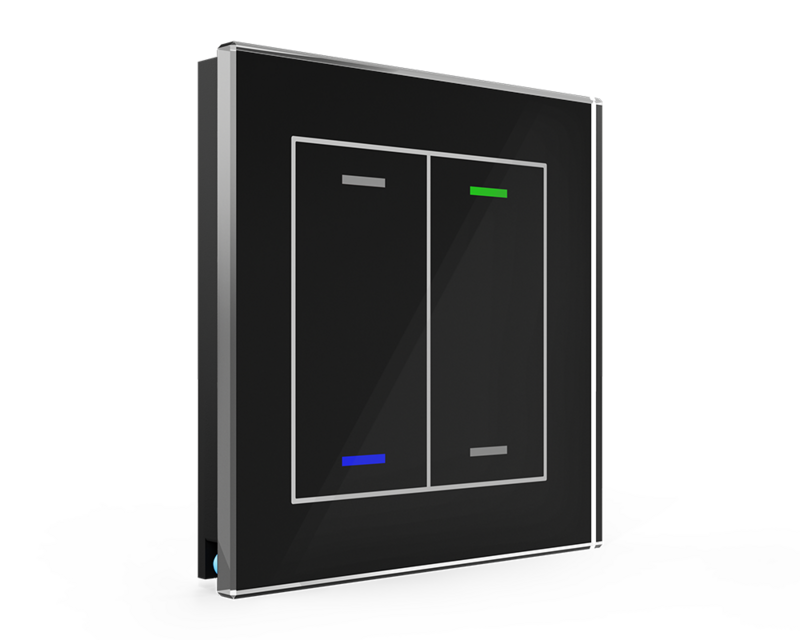

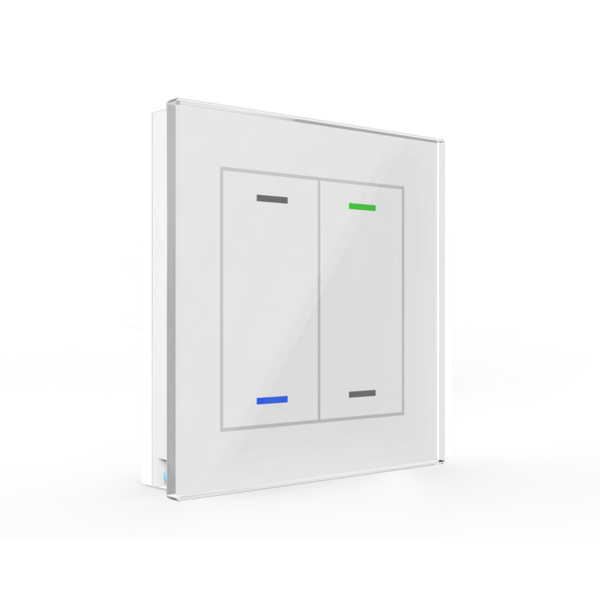

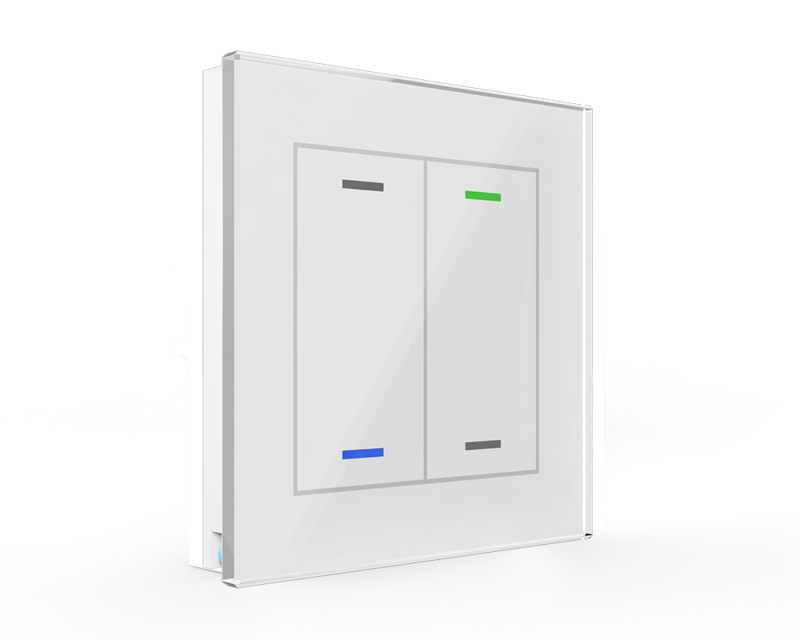

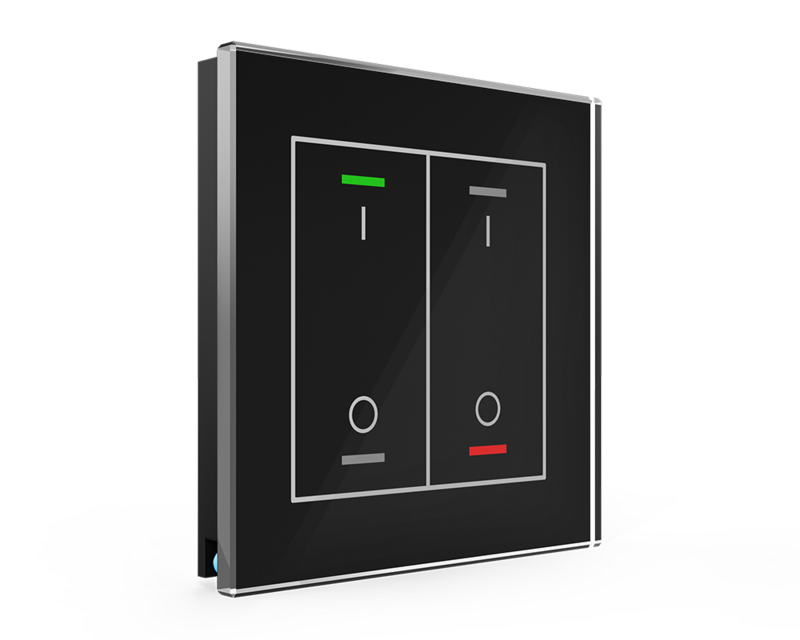

Glass Push-button II Lite 2-fold with Temperature Sensor

The Glass Push-button II Lite 2-fold with temperature sensor offers a comprehensive and flexible control system for switching, dimming, and controlling blinds and scenes in a KNX system. The device supports both 1-button and 2-button operation and features innovative group control through long or extra-long button presses. Thanks to the integrated RGBW status LEDs, the brightness can be adjusted via day/night or brightness objects, and the system status is clearly displayed.

Main Features:

• 1 or 2-button operation for controlling lights, blinds, and scenes.
• Integrated temperature sensor with a measurement range of 0°C to +40°C.
• RGBW status LEDs for visual feedback, with brightness adjustable via day/night or brightness objects.
• Innovative multi-touch functionality allows up to 4 different values or DPTs to be sent to one or multiple objects.
• Built-in group control for blinds, where the standard button press controls individual blinds, and the extra-long press controls the entire group.
• 4 integrated logic blocks for advanced automation and control within the KNX system.
• Supports short and long button press functions for extended control options.

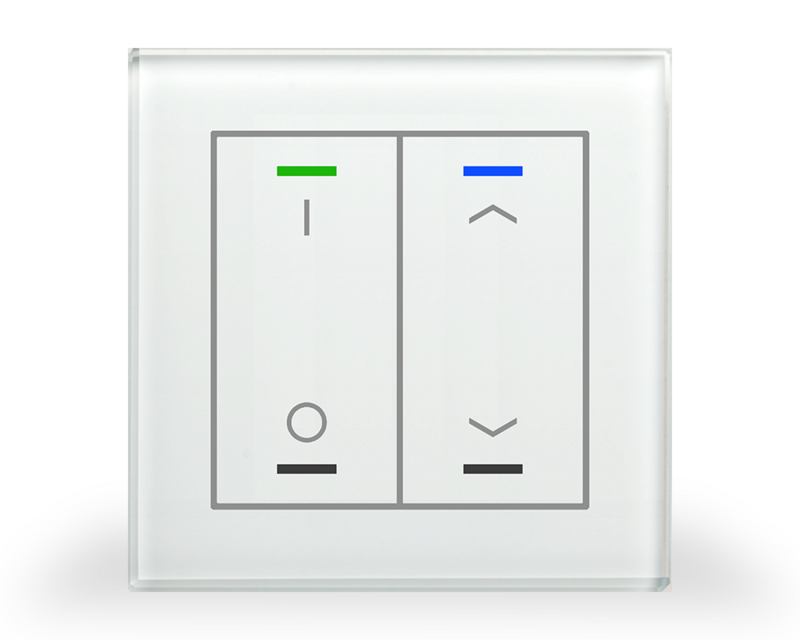

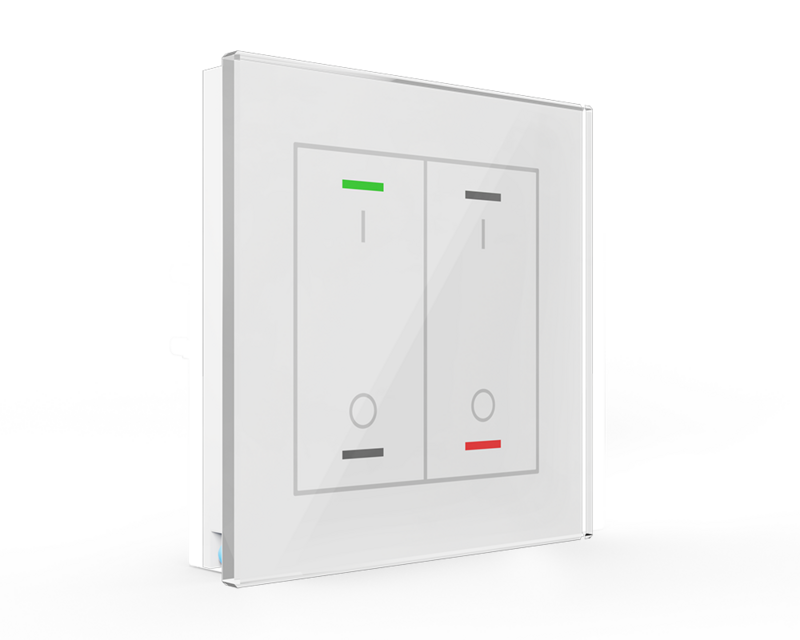

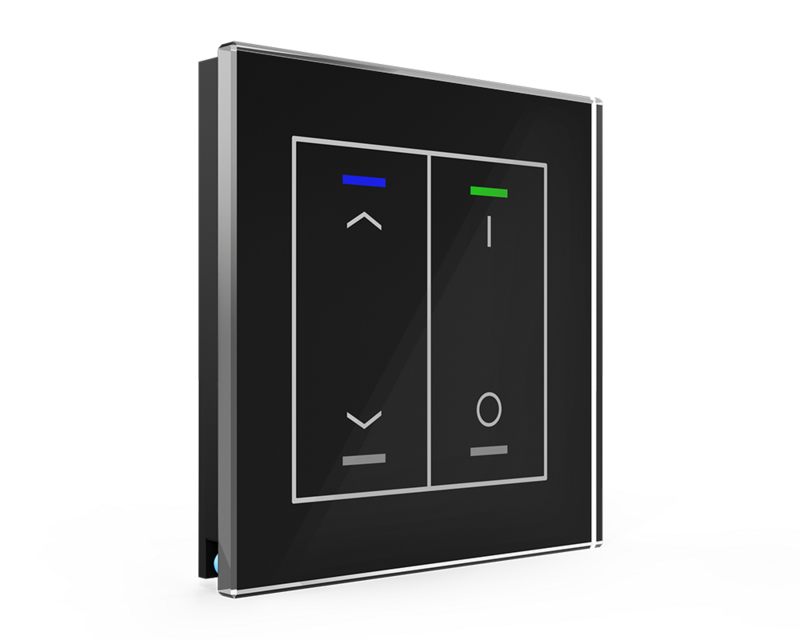

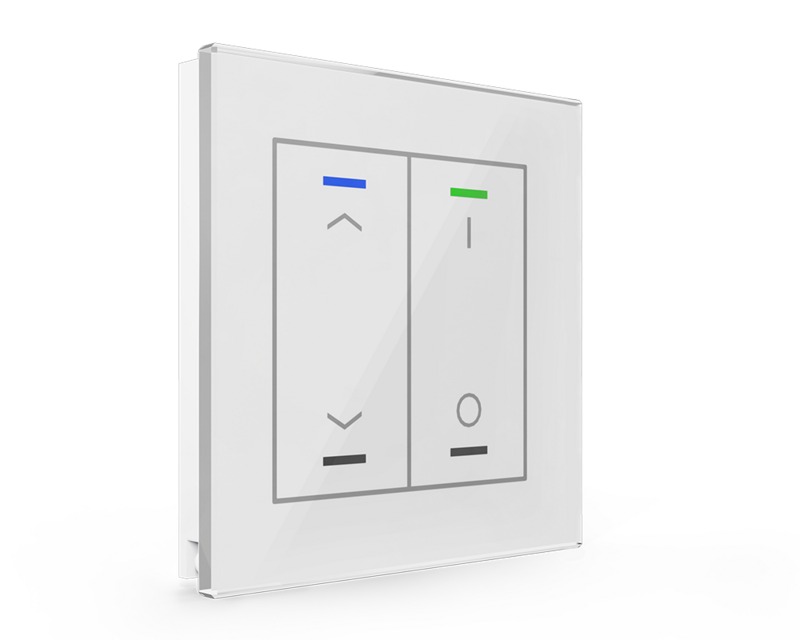

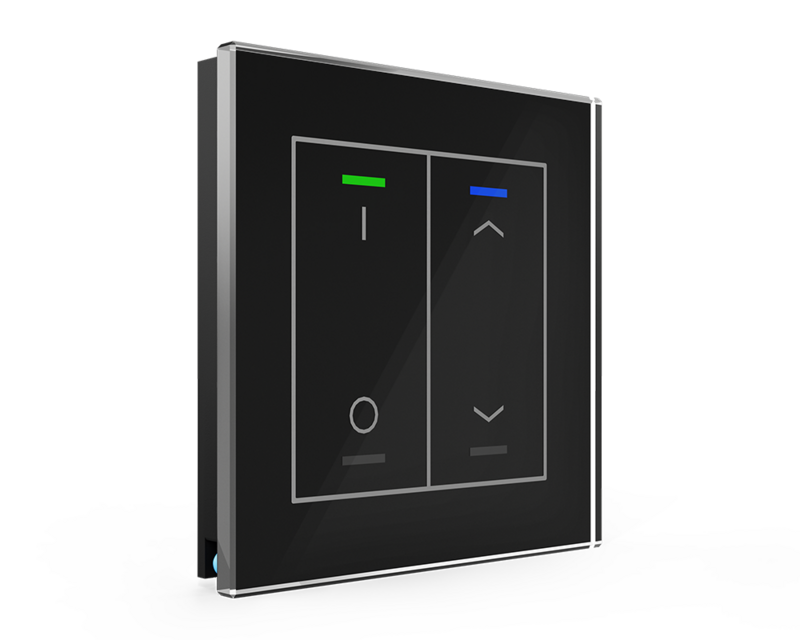

• Available in white or black glass with various symbol options (UP/DOWN, I/O).

Technical Specifications:

• Dimensions (W x H x D): 92mm x 92mm x 29.5mm
• Temperature range: 0°C to +40°C
• Power supply: KNX bus
• Power consumption: Typically < 0.5W
• Protection class: IP20
• Operating temperature range: 0°C to +45°C
• Multi-touch capability for triggering multiple commands with a single button
• RGBW status LEDs, adjustable via ETS (brightness, color)
• Integrated bus coupling unit
• Suitable for installation in standard flush-mounted boxes
• Supports KNX standard TP-256 interface

Available Versions:

In addition to this version with a temperature sensor, the following models in this series are available:

• BE-GTL10W.01 Glass Push Button II Lite 1-fold, White, Version NEUTRAL
• BE-GTL1TW.01 Glass Push Button II Lite 1-fold, White, Version NEUTRAL, with temperature sensor
• BE-GTL10W.A1 Glass Push Button II Lite 1-fold, White, Version UP/DOWN symbol
• BE-GTL1TW.B1 Glass Push Button II Lite 1-fold, White, Version I/O symbol, with temperature sensor
• BE-GTL10S.01 Glass Push Button II Lite 1-fold, Black, Version NEUTRAL
• BE-GTL1TS.01 Glass Push Button II Lite 1-fold, Black, Version NEUTRAL, with temperature sensor
• BE-GTL10S.A1 Glass Push Button II Lite 1-fold, Black, Version UP/DOWN symbol
• BE-GTL1TS.B1 Glass Push Button II Lite 1-fold, Black, Version I/O symbol, with temperature sensor
• BE-GTL20W.01 Glass Push Button II Lite 2-fold, White, Version NEUTRAL
• BE-GTL2TW.01 Glass Push Button II Lite 2-fold, White, Version NEUTRAL, with temperature sensor
• BE-GTL20W.A1 Glass Push Button II Lite 2-fold, White, Version UP/DOWN symbol
• BE-GTL2TW.B1 Glass Push Button II Lite 2-fold, White, Version I/O symbol, with temperature sensor
• BE-GTL20S.01 Glass Push Button II Lite 2-fold, Black, Version NEUTRAL
• BE-GTL2TS.01 Glass Push Button II Lite 2-fold, Black, Version NEUTRAL, with temperature sensor
• BE-GTL40W.01 Glass Push Button II Lite 4-fold, White, Version NEUTRAL
• BE-GTL4TW.01 Glass Push Button II Lite 4-fold, White, Version NEUTRAL, with temperature sensor
• BE-GTL40S.01 Glass Push Button II Lite 4-fold, Black, Version NEUTRAL
• BE-GTL4TS.01 Glass Push Button II Lite 4-fold, Black, Version NEUTRAL, with temperature sensor

Products without a temperature sensor are listed in a separate product overview at KNXWarehouse.com or in related products.
