Glass Push-button II Lite 1-fold with Temperature Sensor

The Glass Push-button II Lite 1-fold with temperature sensor is a high-end KNX device designed for modern home automation. It offers flexible control for switching, dimming, blind control, and scenes. Thanks to the new multi-touch function, up to four different values or datapoints can be sent to one or more objects, such as lighting and blinds. The RGBW status LEDs can be controlled internally or externally, with adjustable brightness via day/night mode or brightness object. The device supports 1- or 2-button operation and offers versatile functions for both short and long button presses.

Technical Data

• Dimensions (W x H x D): 92 mm x 92 mm x 29.5 mm
• Protection class: IP20
• Operating temperature: 0°C to +45°C
• Temperature sensor range: 0°C to +40°C
• Power supply: KNX Bus
• Power consumption: typically less than 0.5 W
• Connection: KNX bus connection with solid core wire, 0.8 mm diameter
• Supported KNX specifications: TP-256
• Supported software versions: ETS 4/5
• Operation: 1- or 2-button operation for switching, dimming, blinds control, and scenes
• LED status: RGBW LEDs per button, programmable for status display
• Mounting: Flush-mounted in standard installation box
• Built-in logic blocks: 4 logic blocks for advanced functions

This device enables user-friendly control with short and long button press functions, and offers innovative group control for blinds and shutters. The multi-touch function allows you to perform multiple functions with a single button press. Additionally, the integrated temperature sensor allows for precise climate control. The device is easy to install using a standard flush-mounted box and meets the highest quality standards, manufactured in Germany and certified according to ISO 9001. It comes with a 3-year warranty.

Available Versions in this Series

• BE-GTL10W.01 Glass Push Button II Lite 1-fold, White, NEUTRAL

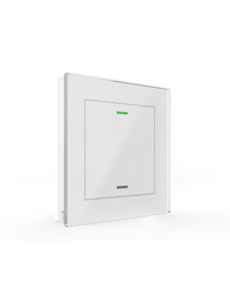

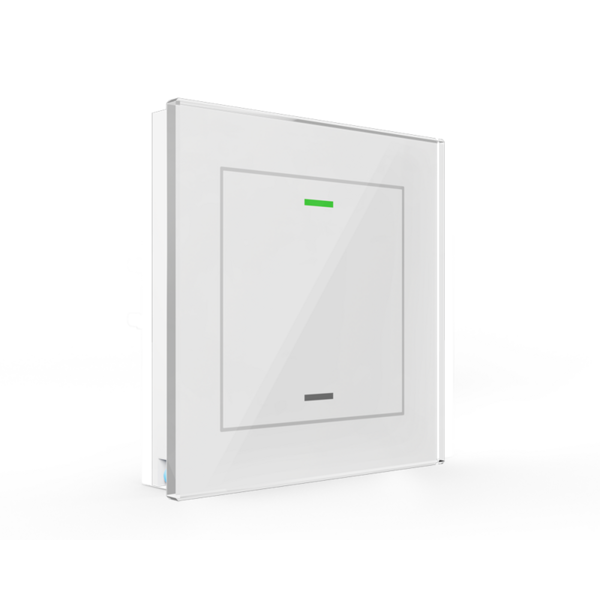

• BE-GTL1TW.01 Glass Push Button II Lite 1-fold, White, NEUTRAL, with temperature sensor
• BE-GTL10W.A1 Glass Push Button II Lite 1-fold, White, UP/DOWN symbol

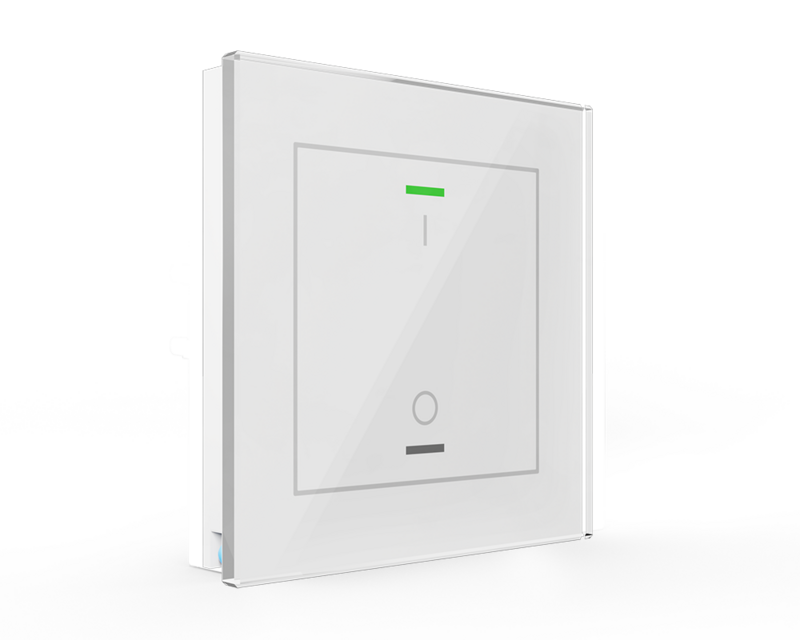

• BE-GTL1TW.B1 Glass Push Button II Lite 1-fold, White, I/O symbol, with temperature sensor

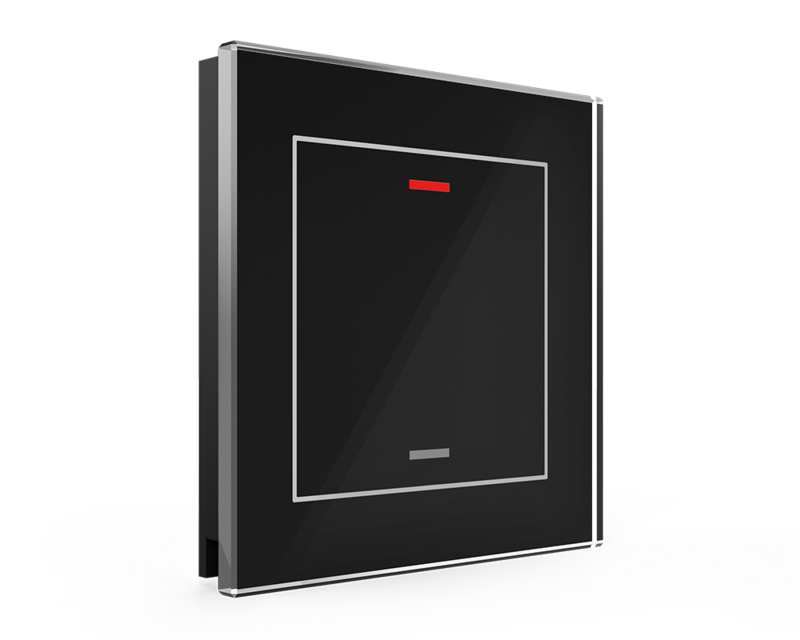

• BE-GTL10S.01 Glass Push Button II Lite 1-fold, Black, NEUTRAL
• BE-GTL1TS.01 Glass Push Button II Lite 1-fold, Black, NEUTRAL, with temperature sensor
• BE-GTL10S.A1 Glass Push Button II Lite 1-fold, Black, UP/DOWN symbol
• BE-GTL1TS.B1 Glass Push Button II Lite 1-fold, Black, I/O symbol, with temperature sensor
• BE-GTL20W.01 Glass Push Button II Lite 2-fold, White, NEUTRAL
• BE-GTL2TW.01 Glass Push Button II Lite 2-fold, White, NEUTRAL, with temperature sensor
• BE-GTL20W.A1 Glass Push Button II Lite 2-fold, White, UP/DOWN symbol
• BE-GTL2TW.B1 Glass Push Button II Lite 2-fold, White, I/O symbol, with temperature sensor
• BE-GTL2TW.C1 Glass Push Button II Lite 2-fold, White, UP/DOWN and I/O symbol, with temperature sensor
• BE-GTL2TW.D1 Glass Push Button II Lite 2-fold, White, I/O and UP/DOWN symbol, with temperature sensor
• BE-GTL40W.01 Glass Push Button II Lite 4-fold, White, NEUTRAL
• BE-GTL4TW.01 Glass Push Button II Lite 4-fold, White, NEUTRAL, with temperature sensor

The items without a temperature sensor can be found in a separate product listing on KNXWarehouse.com or under related products.
