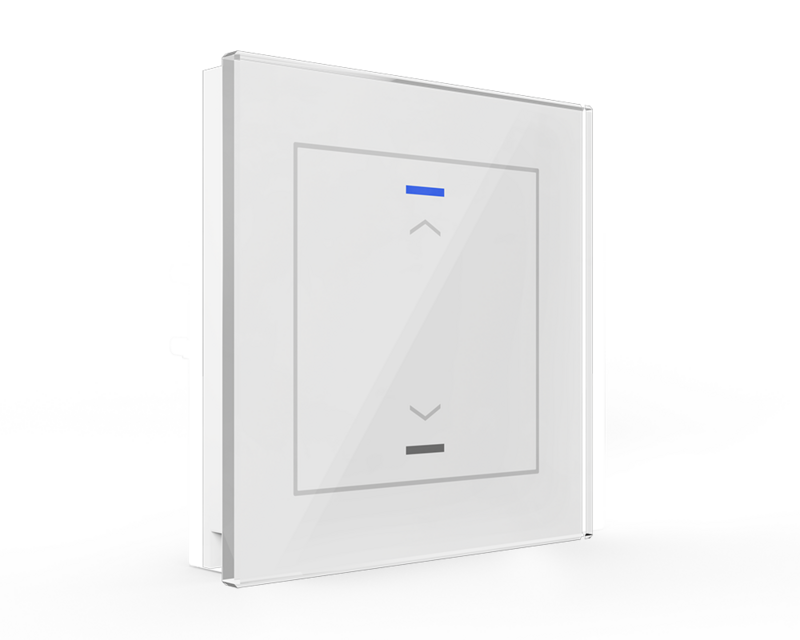

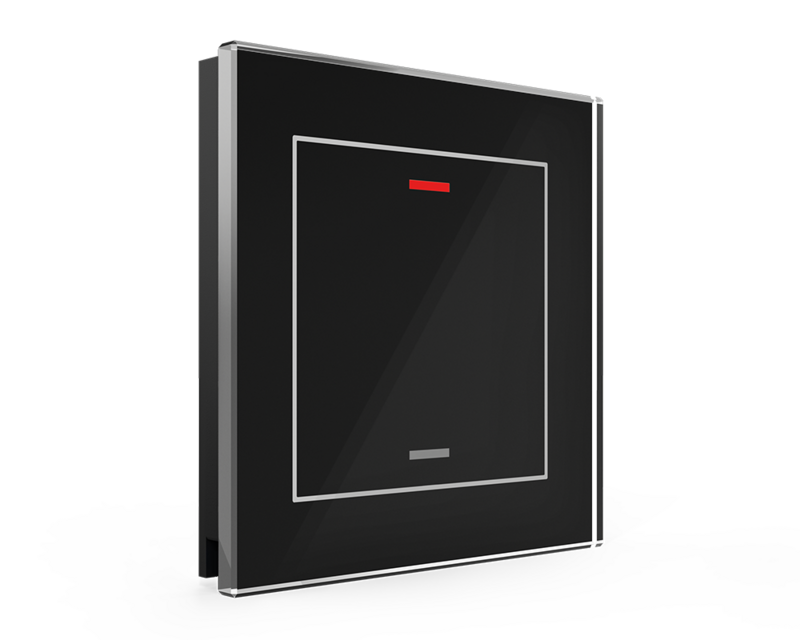

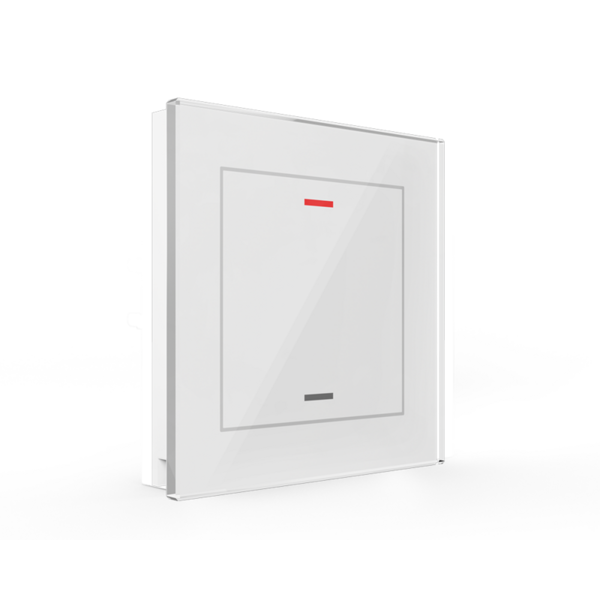

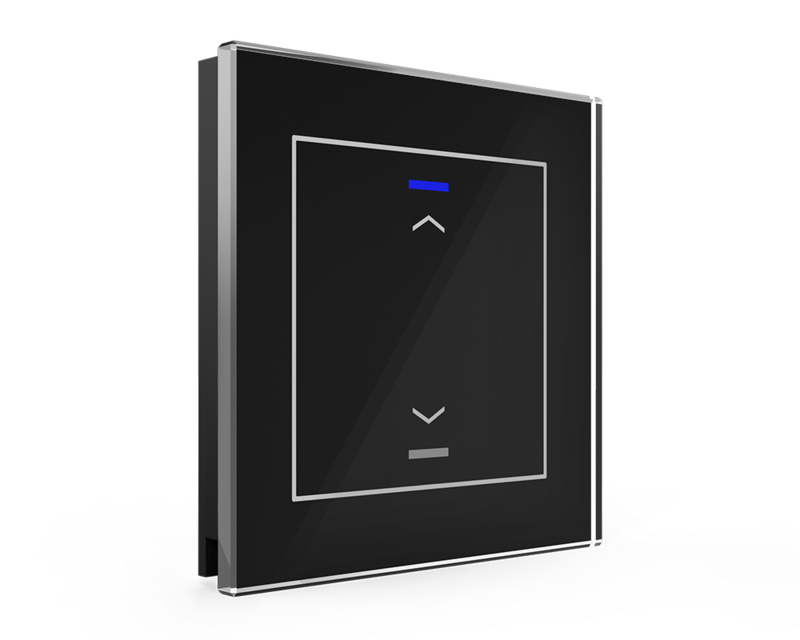

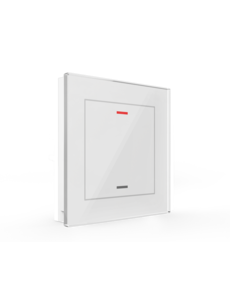

Glass Push-button II Lite 1 fold

0 Review(s)

€86,45 Excl. tax €133,00 Excl. tax
€104,60 Incl. tax €160,93 Incl. tax. Out of stock, but available

Unit price: €86,45 / Piece

The Glass Push-button II Lite provides flexible control for switching, dimming, and blinds. Features RGBW status LEDs and customizable logic. Available with 1 to 4 sensor areas and optional temperature sensor. Read more

Specifications

Brand:

MDT

Article number:

BE-GTL10W.01

EAN:

4251916110413

Availability:

Out of stock, but available

Delivery time:

Will be shipped within approximately 8 working days.

Information

Datasheet

Glass Push-button II Lite 1-gang

Glass Push-button II Lite 1-gang offers extensive and flexible control of KNX systems. This device supports switching, dimming, blind control, scenes, and sending values. Thanks to the programmable sensor areas and RGBW status LEDs, which can be controlled internally or externally, a variety of functions can be configured per button. The LED brightness is adjustable via a day/night mode or brightness objects. The device supports 1-button operation and includes 4 integrated logic blocks for more complex functionality.

Technical Specifications:

1-button operation for switching, dimming, blinds, and sending values
Slap function with an additional switch channel
RGBW status LEDs per button pair, adjustable via day/night mode or brightness object
Multi-touch functionality, allowing up to 4 values or data points to be sent to different objects
Innovative group control for long/extra long button presses
Available with or without a temperature sensor (temperature range: 0°C to +40°C)
Dimensions (W x H x D): 92 mm x 92 mm x 29.5 mm
Power supply via KNX bus, typical consumption: < 0.5W
Operating temperature range: 0°C to +45°C
Protection rating: IP20
Integrated bus coupling unit
Installation in a flush-mounted box, for use only in dry indoor rooms
ISO 9001 certified, made in Germany
Variants with symbols: Neutral, UP/DOWN, I/O symbols

The following article versions are available in the Glass Push-button II Lite series:

BE-GTL10W.01 Glass Push-button II Lite 1-gang, White, Neutral
BE-GTL1TW.01 Glass Push-button II Lite 1-gang, White, Neutral, with temperature sensor
BE-GTL10W.A1 Glass Push-button II Lite 1-gang, White, UP/DOWN symbol
BE-GTL1TW.B1 Glass Push-button II Lite 1-gang, White, I/O symbol, with temperature sensor
BE-GTL10S.01 Glass Push-button II Lite 1-gang, Black, Neutral
BE-GTL1TS.01 Glass Push-button II Lite 1-gang, Black, Neutral, with temperature sensor
BE-GTL10S.A1 Glass Push-button II Lite 1-gang, Black, UP/DOWN symbol
BE-GTL1TS.B1 Glass Push-button II Lite 1-gang, Black, I/O symbol, with temperature sensor
BE-GTL20W.01 Glass Push-button II Lite 2-gang, White, Neutral
BE-GTL2TW.01 Glass Push-button II Lite 2-gang, White, Neutral, with temperature sensor
BE-GTL20W.A1 Glass Push-button II Lite 2-gang, White, UP/DOWN symbol
BE-GTL2TW.B1 Glass Push-button II Lite 2-gang, White, I/O symbol, with temperature sensor
BE-GTL2TW.C1 Glass Push-button II Lite 2-gang, White, UP/DOWN and I/O symbol, with temperature sensor
BE-GTL2TW.D1 Glass Push-button II Lite 2-gang, White, I/O and UP/DOWN symbol, with temperature sensor
BE-GTL20S.01 Glass Push-button II Lite 2-gang, Black, Neutral
BE-GTL2TS.01 Glass Push-button II Lite 2-gang, Black, Neutral, with temperature sensor
BE-GTL20S.A1 Glass Push-button II Lite 2-gang, Black, UP/DOWN symbol
BE-GTL2TS.B1 Glass Push-button II Lite 2-gang, Black, I/O symbol, with temperature sensor
BE-GTL2TS.C1 Glass Push-button II Lite 2-gang, Black, UP/DOWN and I/O symbol, with temperature sensor
BE-GTL2TS.D1 Glass Push-button II Lite 2-gang, Black, I/O and UP/DOWN symbol, with temperature sensor
BE-GTL40W.01 Glass Push-button II Lite 4-gang, White, Neutral
BE-GTL4TW.01 Glass Push-button II Lite 4-gang, White, Neutral, with temperature sensor
BE-GTL40S.01 Glass Push-button II Lite 4-gang, Black, Neutral
BE-GTL4TS.01 Glass Push-button II Lite 4-gang, Black, Neutral, with temperature sensor
