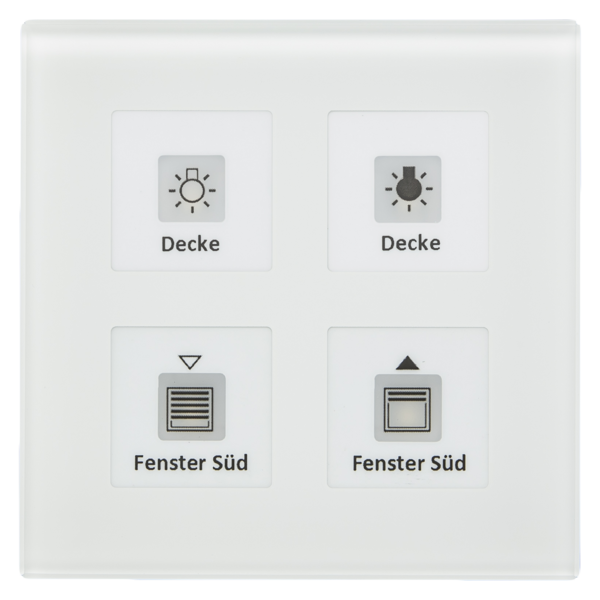

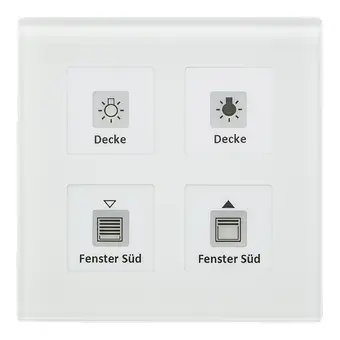

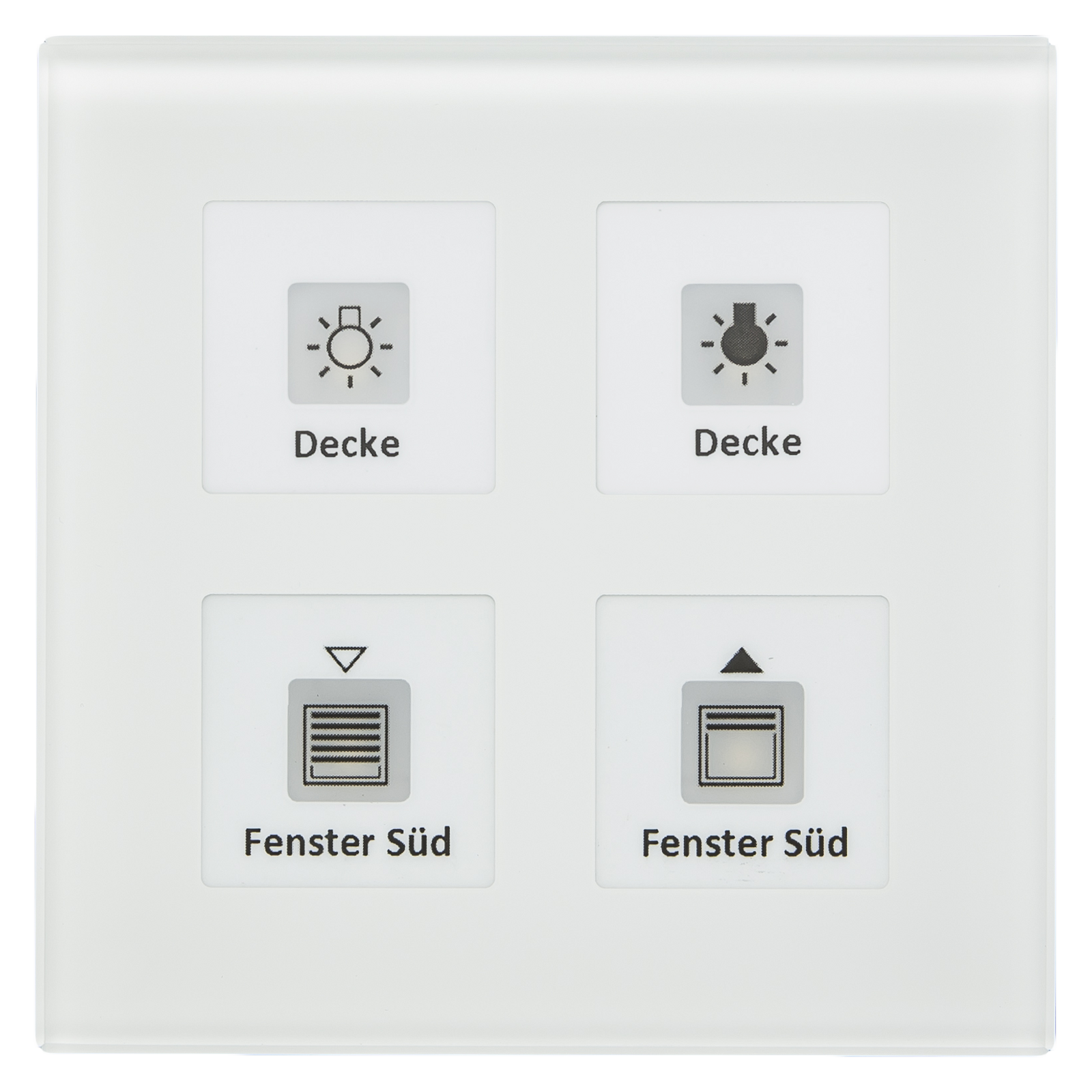

MDT Glass Push Button Plus 4-fold
The MDT Glass Push Button Plus 4-fold offers extensive functionalities for controlling lighting, blinds, and other applications in the KNX environment. This model is available in versions with and without integrated temperature sensor, allowing it to be tailored to the specific requirements of your installation. The switch has programmable sensor areas for 1- or 2-button operation and features bicolored LEDs (white/red) for each sensor zone. The surrounding orientation light can display day and night settings, and the brightness is adjustable in five steps.
The Glass Push Button includes four integrated logical modules that can be used to perform complex functions, such as sending a second object. Additionally, the switch offers a cleaning function that prevents unintended commands during cleaning. An extra switching channel can be activated by simultaneously touching three or more sensor areas, ideal for special functions such as a panic function. The labeling can be customized by placing a label sheet behind the glass front; a laser printer-compatible label sheet is included.
Technical Data
- Dimensions (W x H x D): 92 x 92 x 28 mm (4-fold) / 92 x 163 x 28 mm (8-fold)
- Protection class: IP20, suitable for dry rooms
- Operating temperature range: 0 to +45°C
- Temperature measurement range (temperature sensor models only): 0 to +40°C
- Power supply: KNX bus, typical <0.3W power consumption
- KNX interface: TP-256
- Mounting: Installation in a flush-mounted box (1 box for 4-fold, 2 boxes for 8-fold with 71 mm spacing)
- LED lighting: Bicolored LEDs (white/red) for each sensor zone, adjustable in 5 steps
- Orientation light: Surrounding orientation light with day and night detection
- Number of sensor areas: 4 or 8 depending on model
- ETS compatibility: Supports ETS 3, 4, and 5
- Wiring: KNX bus connection, 0.8 mm Ø solid core
The MDT Glass Push Button Plus is manufactured in Germany according to ISO 9001 standards and comes with a 3-year warranty. It is recommended to use the ETS software for project design and commissioning, available at www.mdt.de/downloads.html.
Important Note: This model is available in versions with and without an integrated temperature sensor. Ensure to choose the appropriate variant based on your installation requirements.
Available Models and Article Numbers
- BE-GT04W.01 Glass Push Button Plus 4-fold White, surrounding orientation light

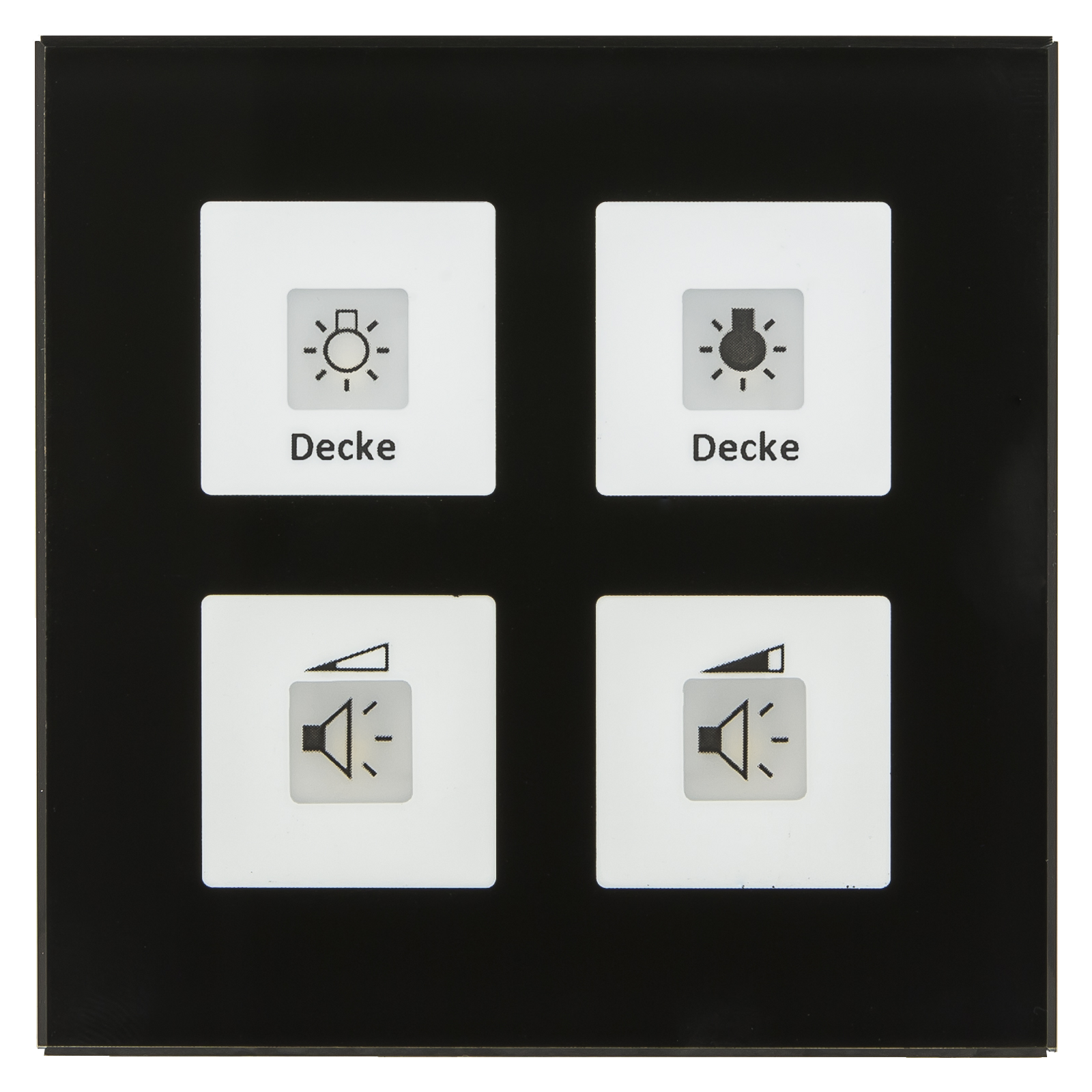

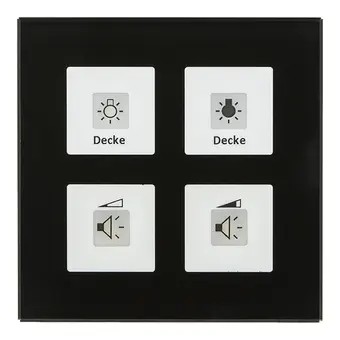

- BE-GT04S.01 Glass Push Button Plus 4-fold Black, surrounding orientation light
- BE-GT08W.01 Glass Push Button Plus 8-fold White, surrounding orientation light
- BE-GT08S.01 Glass Push Button Plus 8-fold Black, surrounding orientation light
- BE-GTT4W.01 Glass Push Button Plus 4-fold White, surrounding orientation light, integrated Temperature Sensor
- BE-GTT4S.01 Glass Push Button Plus 4-fold Black, surrounding orientation light, integrated Temperature Sensor
- BE-GTT8W.01 Glass Push Button Plus 8-fold White, surrounding orientation light, integrated Temperature Sensor
- BE-GTT8S.01 Glass Push Button Plus 8-fold Black, surrounding orientation light, integrated Temperature Sensor
