MDT KNX Glass Push-button II Smart | available with or without temperature sensor

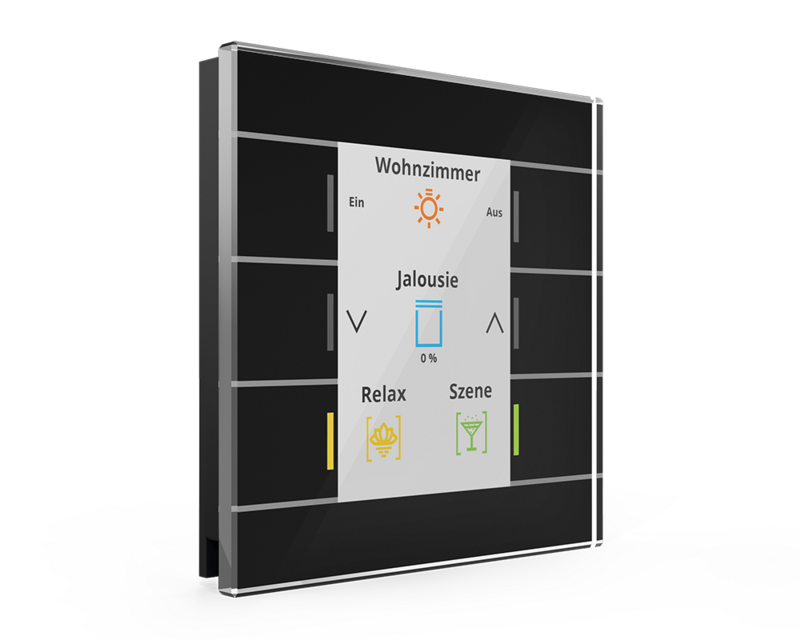

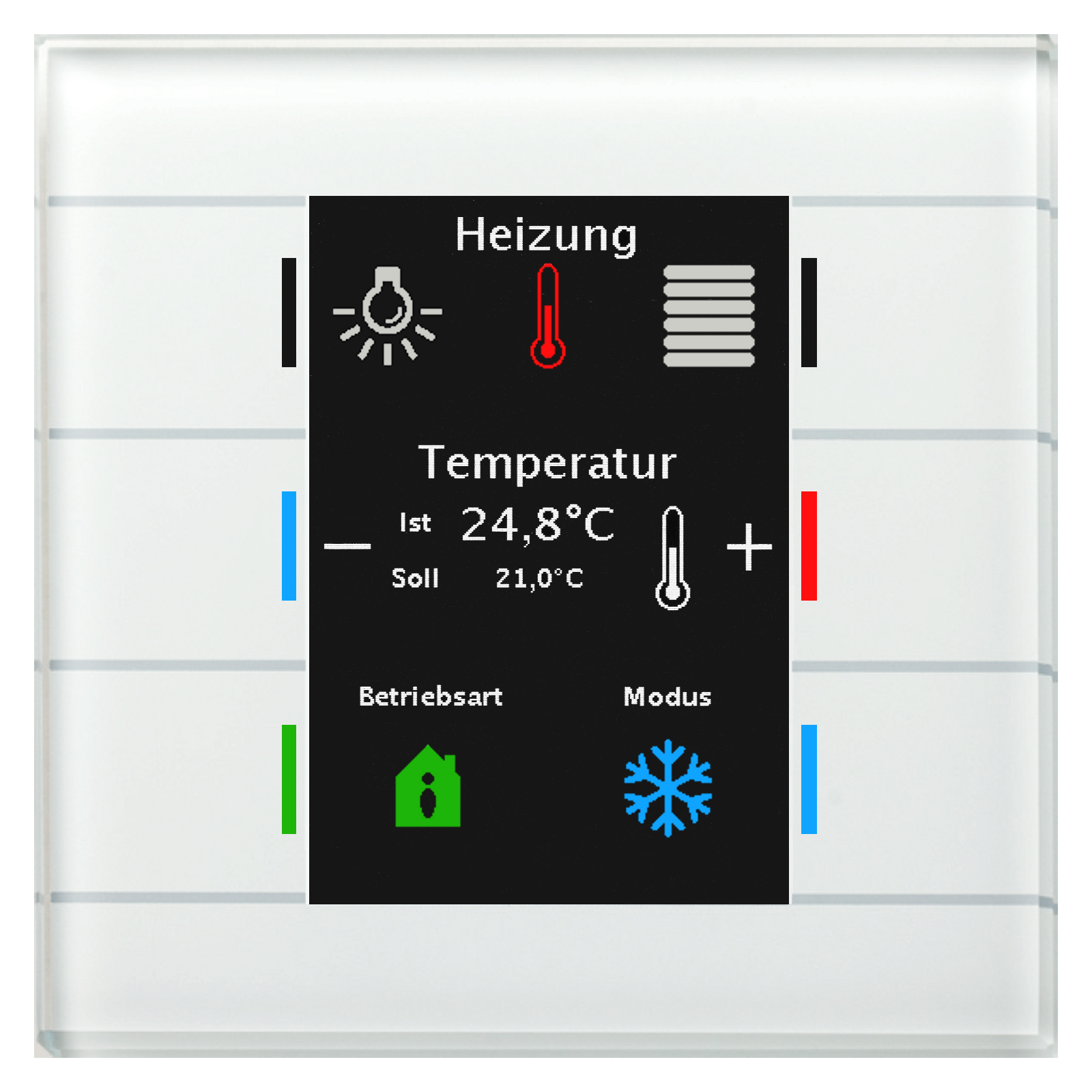

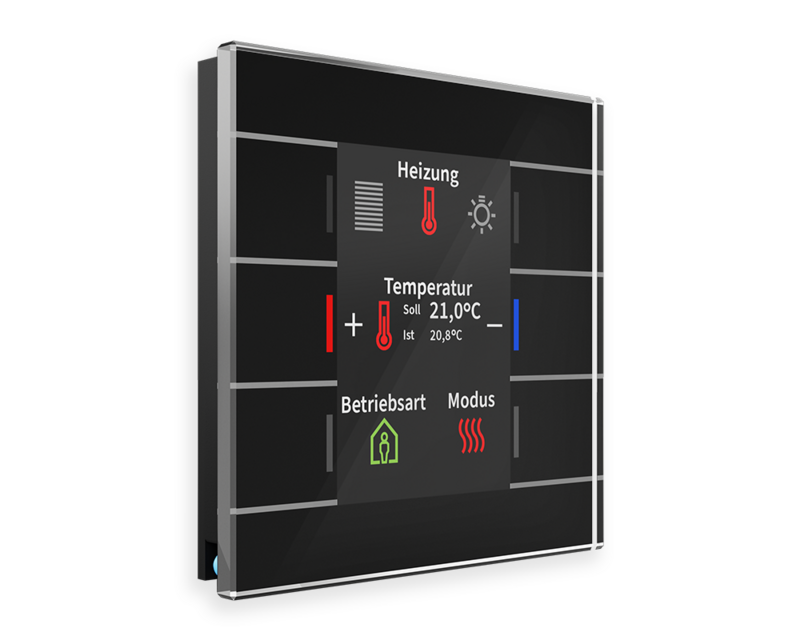

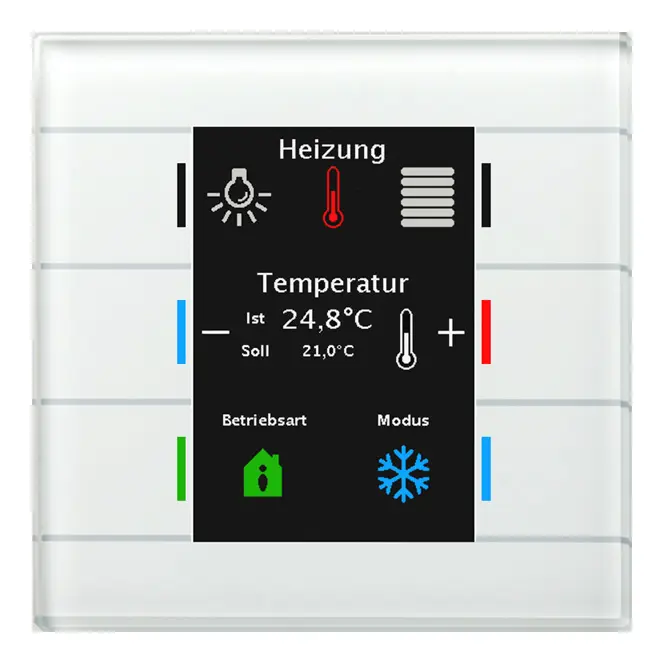

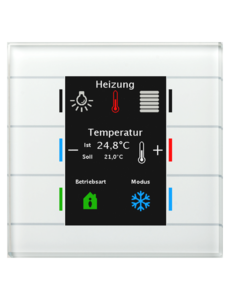

The MDT Glass Push-button II Smart is an advanced KNX control device, designed for use in modern smart home solutions. The device is available in different color variants, namely white or black glass, and with or without an integrated temperature sensor. This device offers up to 12 programmable functions, distributed over 2 or 3 levels, making it ideal for controlling lighting, blinds, climate regulation, and more.

Key Features:

• Available in white or black glass, with or without a temperature sensor
• Active color display with adjustable background color (black or white)
• Up to 12 functions, configurable over 2 or 3 levels for extended control
• RGB status indication per button, individually controllable on each level
• Innovative "slap" function for quick operation of multiple functions
• Displays indoor and outdoor temperature via KNX (for models with a temperature sensor)
• User-friendly ETS configuration for quick programming and installation
• Automatic brightness adjustment of the display via an integrated light sensor or day/night object
• Supports group control with long and extra-long operation times
• Built-in logic modules for advanced functionality

Technical Data:

• Dimensions (W x H x D): 92 mm x 92 mm x 29.2 mm
• Mounting: Flush-mount in a standard installation box
• Number of sensor areas: 6
• Temperature range (if applicable): 0 to +40 °C
• Measurement accuracy: ± 0.5 °C (for models with temperature sensor)
• Power supply: Via KNX bus (typical power consumption < 0.6 W)
• KNX interface: TP-256
• Operating temperature range: 0 to +45 °C
• Protection class: IP 20
• Display: Active color display, RGB status indicators
• Available colors: White glass or black glass
• Recommended installation height: 1.50 to 1.60 meters for operation

Additional Functions:

• Slap function: Control multiple functions by touching 3 or more buttons simultaneously
• Displays up to 6 measured values and detailed information on the display
• 4 built-in logic modules for flexible function configuration
• Can be used as RTC (Room Temperature Controller) in combination with MDT heating actuators (for models with temperature sensor)
• Symbols and text are configurable for each button or function

The MDT Glass Push-button II Smart is ideal for climate control (for models with temperature sensor) in combination with MDT heating actuators. This device, which can be easily configured via ETS, offers great flexibility in modern smart home solutions. The integrated temperature sensor ensures precise climate control and allows both indoor and outdoor temperatures to be displayed.

Available Versions:

• MDT BE-GT20W.02 KNX Glass Push-button II Smart | Standard | white glass
• MDT BE-GT20S.02S KNX Glass Push-button II Smart | Standard | black/black glass
• MDT BE-GT2TW.02 KNX Glass Push-button II Smart | Temperature sensor | white glass
• MDT BE-GT2TS.02S KNX Glass Push-button II Smart | Temperature sensor | black/black glass

Note: This device is available in versions with and without an integrated temperature sensor. When equipped with a temperature sensor, efficient climate regulation can be achieved. The device requires no additional power supply as it is powered via the KNX bus.
