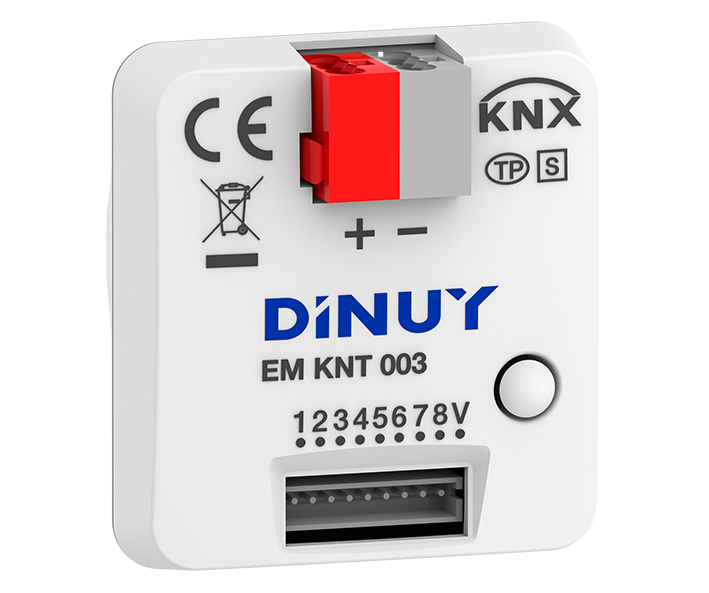

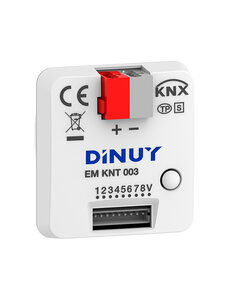

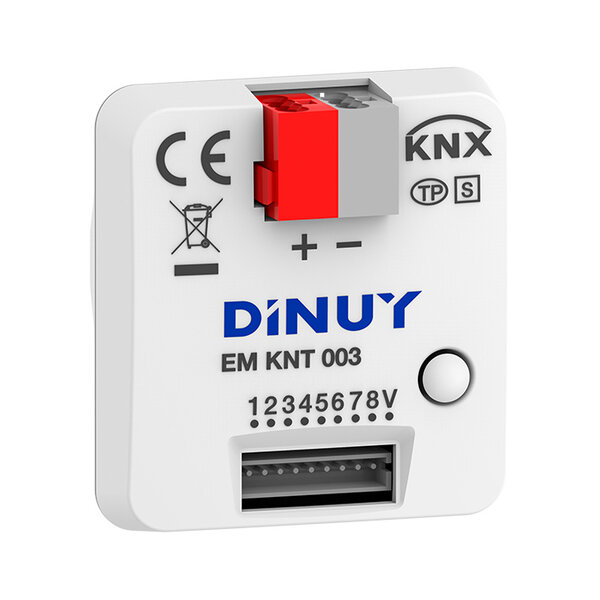

EM KNT 003 Interface w/ 8 bin./analog in, long-dist. bin. in 200m
€75,95 Excl. tax
€135,02 Excl. tax
€91,90 Incl. tax €163,37 Incl. tax. In stock (3)
€91,90 Incl. tax €163,37 Incl. tax. In stock (3)
Interface with 8 binary/analog inputs, supports long-distance connections (up to 200m). Compatible with sensors, switches, or potential-free buttons. Supports dimming, blinds control, and pulse counting. Read more
Specifications
Brand:
Dinuy
Article number:
EM KNT 003
EAN:
8422447017410
Availability:
In stock (3)
Delivery time:
Will be shipped within 1 to 2 working days.
Information
Technical Data of the Interface with 8 Binary/Analog Inputs
The interface with 8 binary/analog inputs offers a flexible solution for integrating sensors, switches, and potential-free buttons into a KNX system. Each input can be configured for different functions such as switching, dimming, pulse counting, or blinds control. The device supports connections up to 200 meters, making it ideal for long-distance applications.
Main Features:
- 8 independent binary/analog inputs.
- Cable extension up to 200m.
- Compatible with sensors, switches, and potential-free buttons.
- Supported functions: switching, dimming, blinds control, scene management, and pulse counting.
- Compact design: 38 x 42 x 15 mm, suitable for installation in a standard mounting box.
Technical Specifications:
- Power supply: 21 ~ 32V DC (via KNX Bus).
- Power consumption: <5mA.
- Connection: KNX Bus terminal.
- Dimensions: 38 x 42 x 15mm.
- Maximum cable length: 200m.
- Operating temperature: -5°C to +45°C.
- Protection class: IP20 (EN60529).
- Compliant with KNX Standard 2.0.
This device meets the requirements of the EMC Directive 2014/30/EU and the Low Voltage Directive 2011/65/EU. It is configured using ETS5 or later.
