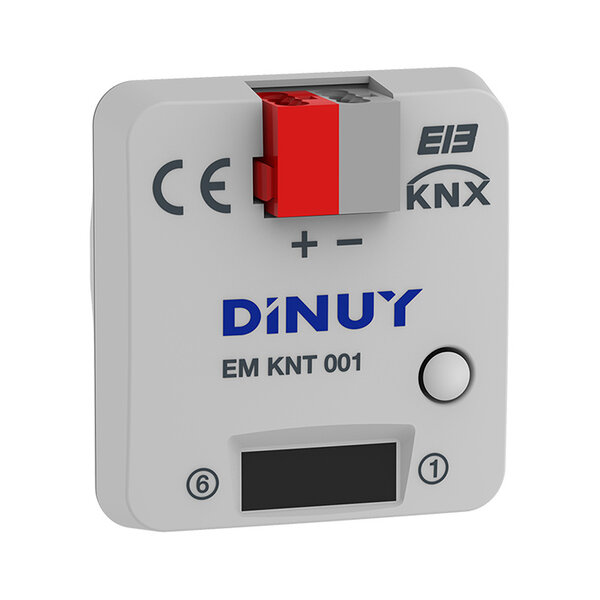

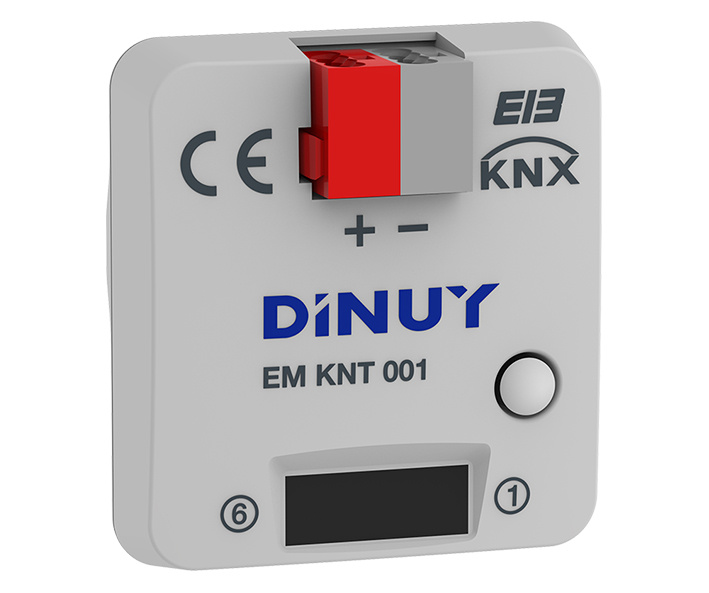

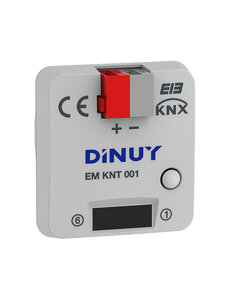

EM KNT 001 Interface with 4 binary inputs/outputs
€64,92 Excl. tax
€115,42 Excl. tax
€78,55 Incl. tax €139,66 Incl. tax. In stock (1)
€78,55 Incl. tax €139,66 Incl. tax. In stock (1)
Interface with 4 channels that can function as binary input or LED output. Potential-free inputs can control switches, dimmers, scenes, blinds, or impulse counters via ETS4 or later. Read more
Specifications
Brand:
Dinuy
Article number:
EM KNT 001
EAN:
8422447013788
Availability:
In stock (1)
Delivery time:
Will be shipped within 1 to 2 working days.
Information
Interface with 4 potential-free binary inputs/outputs
This versatile interface offers four independent channels that can function as either binary inputs or LED outputs. Thanks to the potential-free inputs, conventional switches, dimmers, blinds, and other devices can be easily connected. Configuration is done via ETS4 or later versions, allowing for the programming of various functions such as switching, dimming, scene control, sequential switching, and impulse counting.
Main Features:
- 4 independent channels for binary input or LED output.
- Potential-free inputs for conventional switches or sensors.
- ETS4 configuration for switching, dimming, scenes, and blinds control.
- Flush-mounted in standard universal boxes behind switches.
- No external power supply needed, powered via KNX bus.
- Short-circuit, overload, and reverse polarity protection.
Technical Specifications:
- Power Supply: 21 ~ 32VDC (via KNX bus)
- Power Consumption: < 10mA
- Inputs: 4 channels, potential-free
- Input Voltage: 20VDC
- Output Voltage: 5VDC
- Mounting: Flush-mounted (universal box)
- Dimensions: 38 x 42 x 15mm
- Operating Temperature: 0ºC ~ +45ºC
- Protection Rating: IP20
