RailQUAD Input module with 8 analog-digital inputs
€162,60 Incl. tax €218,55 Incl. tax. Out of stock, but available
Specifications
Information

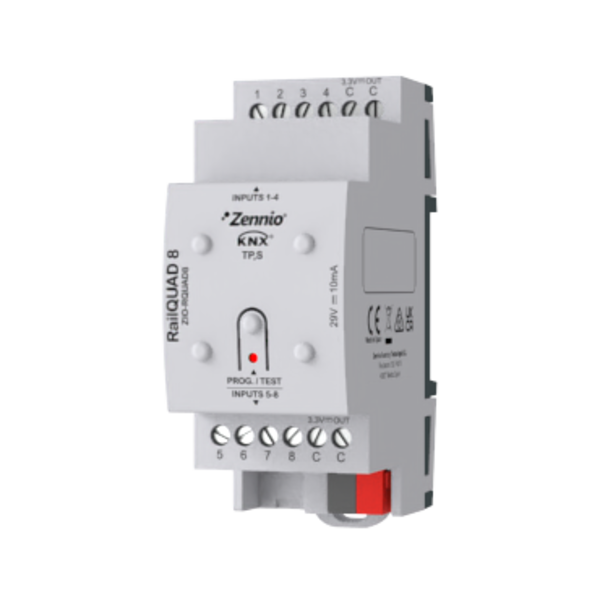

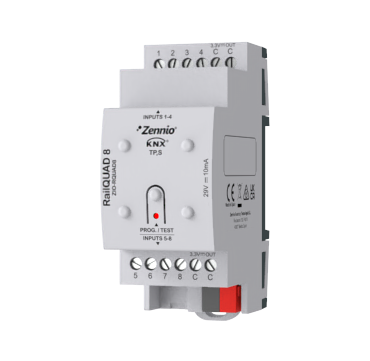

Zennio RailQUAD 8 Input Module (Ref.: ZIO-RQUAD8)
The Zennio RailQUAD 8 is an input module for DIN-rail with 8 analog-digital inputs. This module is compatible with Zennio sensors and offers versatile configuration options, including use as binary input, temperature probe, or motion sensor. Includes 8 integrated thermostats for controlling heating and cooling systems.
Key Features
- 8 analog-digital inputs, configurable as binary input, temperature probe (NTC), or motion sensor
- Compatible with Zennio sensors
- 8 integrated thermostats
- Data saving during KNX bus failure
- Compact design: 67 x 90 x 36 mm (2 DIN units)
- DIN-rail mounting according to IEC 60715 TH35, with fixing clamp
- Compliance with CE, UKCA, and RCM directives
General Specifications
| Device Type | Electric operation control device |
|---|---|
| Power Supply | 29 VDC SELV (typical), range 21-31 VDC |
| Maximum Power Consumption | 6.9 mA / 200.1 mW @ 29 VDC |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -20 to +55 °C |
| Humidity | 5% - 95% (non-condensing) |
| Protection Class | IP20 |
| Dimensions | 67 x 90 x 36 mm (2 DIN units) |
| Installation | Suitable for DIN-rail mounting (IEC 60715) |
Input Specifications
- Number of Inputs: 8
- Inputs per Common: 2
- Voltage: +3.3 VDC
- Current: 1 mA per input
- Switch Type: Dry contact (potential-free)
- Maximum Cable Length: 30 m
- NTC Probe Length: 1.5 m (extendable up to 30 m)
- NTC Accuracy: ±0.5 °C at 25 °C
- Temperature Resolution: 0.1 °C
- Response Time: Maximum 10 ms
Notes
The RailQUAD 8 supports Zennio temperature probes and motion sensors, enabling versatile applications. Its data-saving feature ensures data remains secure during KNX bus failures and is restored upon restart.
Note: Accessories such as temperature probes and motion sensors are sold separately.
