8 fold Binary Inputs 4SU MDRC 230VAC
€204,49 Incl. tax €314,60 Incl. tax. Out of stock, but available
Specifications
Information

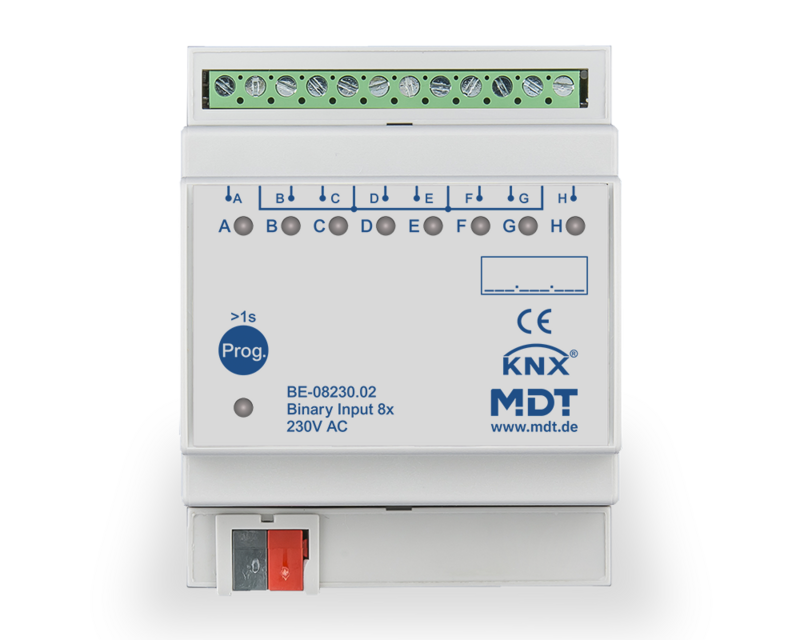

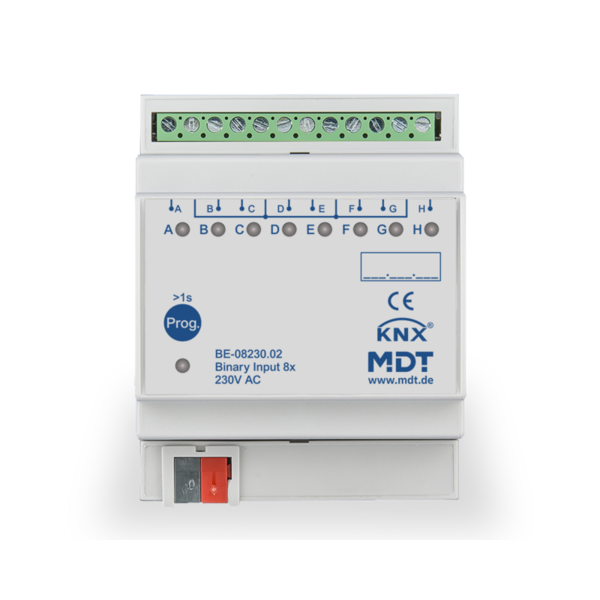

8-Fold Binary Input for KNX - 230VAC
The 8-fold MDT Binary Input makes conventional switches and buttons smart for KNX systems. This version supports 230VAC signals and features four integrated logic modules for extended functionality.
Main Features:
- Connects conventional buttons, switches, window, and auxiliary contacts
- Supports 230VAC signals
- New multi-touch function: sends up to 4 values or DPTs
- Group control with long or extra long press
- 4 integrated logic modules for input evaluation and extra features
- NO or NC contact operation with status indication
- Control of blinds and shutters with 1- or 2-button operation
- Forced settings for each channel
- Scenes and block objects per channel
- Integrated pulse and switch counters with extended features
- Easy installation on DIN-rail (MDRC)
Technical Specifications:
- Inputs: 8
- Signal Voltage: 230VAC
- Input cable length: Max 100m
- KNX Bus Interface: TP-256
- Operating temperature: 0°C to +45°C
- Dimensions: 4SU (DIN-rail mount)
- Protection class: IP20
- Internal contact voltage: 12V
The MDT Binary Input is ideal for integrating conventional switches into an advanced KNX system, offering numerous configuration options and extended automation capabilities.
