4 fold Binary Inputs 2SU MDRC 230VAC
€151,01 Incl. tax €232,32 Incl. tax. Out of stock, but available
Specifications
Information

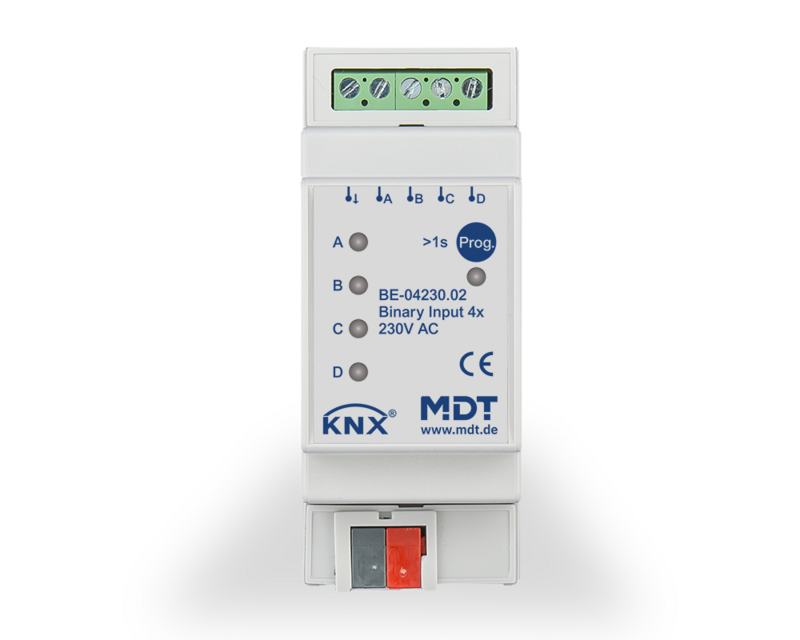

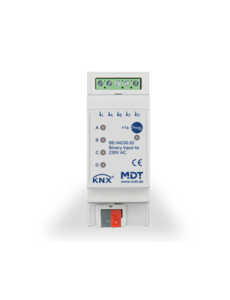

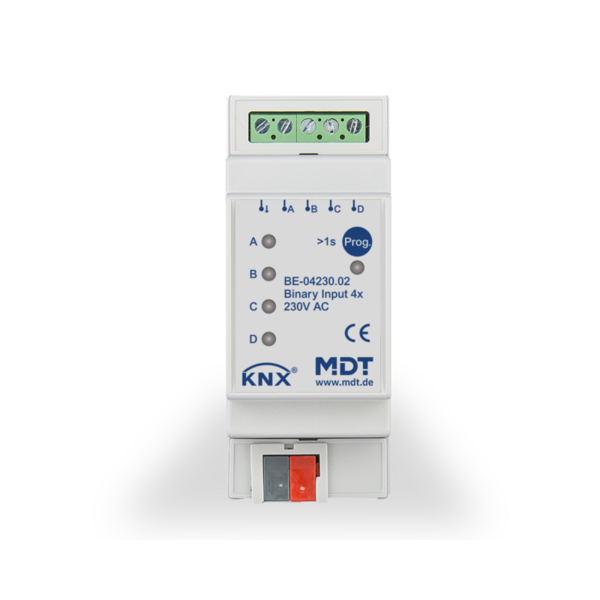

Binary Input 4-fold 230Vac - BE-4230.02
The MDT 4-fold binary input makes conventional switches and contacts “smart” within a KNX system. This input supports 230VAC signals and offers a wide range of functions for lighting control, blinds operation, and more.
Key Features
- Suitable for conventional switches or window/auxiliary contacts
- Multi-touch function: sends up to 4 values/DPTs on the same or different objects
- Innovative group control with long/extra-long button press
- 4 integrated logic modules
- Supports NO or NC contacts, status display
- Control of blinds with 1 or 2 buttons
- Built-in pulse and switching counters (suitable for 30 ms S0 pulses)
- Cyclic sending, sending after reset
- Internally generated contact voltage of 12V
- Produced in Germany, ISO 9001 certified
Technical Specifications
- Number of inputs: 4
- Signal voltage: 230VAC
- Max cable length: 100m
- KNX interface: TP-256
- Available software: ETS 5
- Power supply: KNX bus
- Power consumption: <0.3W
- Operating temperature: 0°C to +45°C
- Enclosure: IP 20
- Dimensions: 2SU (modular DIN-rail device)
The MDT Binary Input BE-04230.02 offers extensive automation capabilities within the KNX system. Download the required software from www.mdt.de/Downloads.html.
