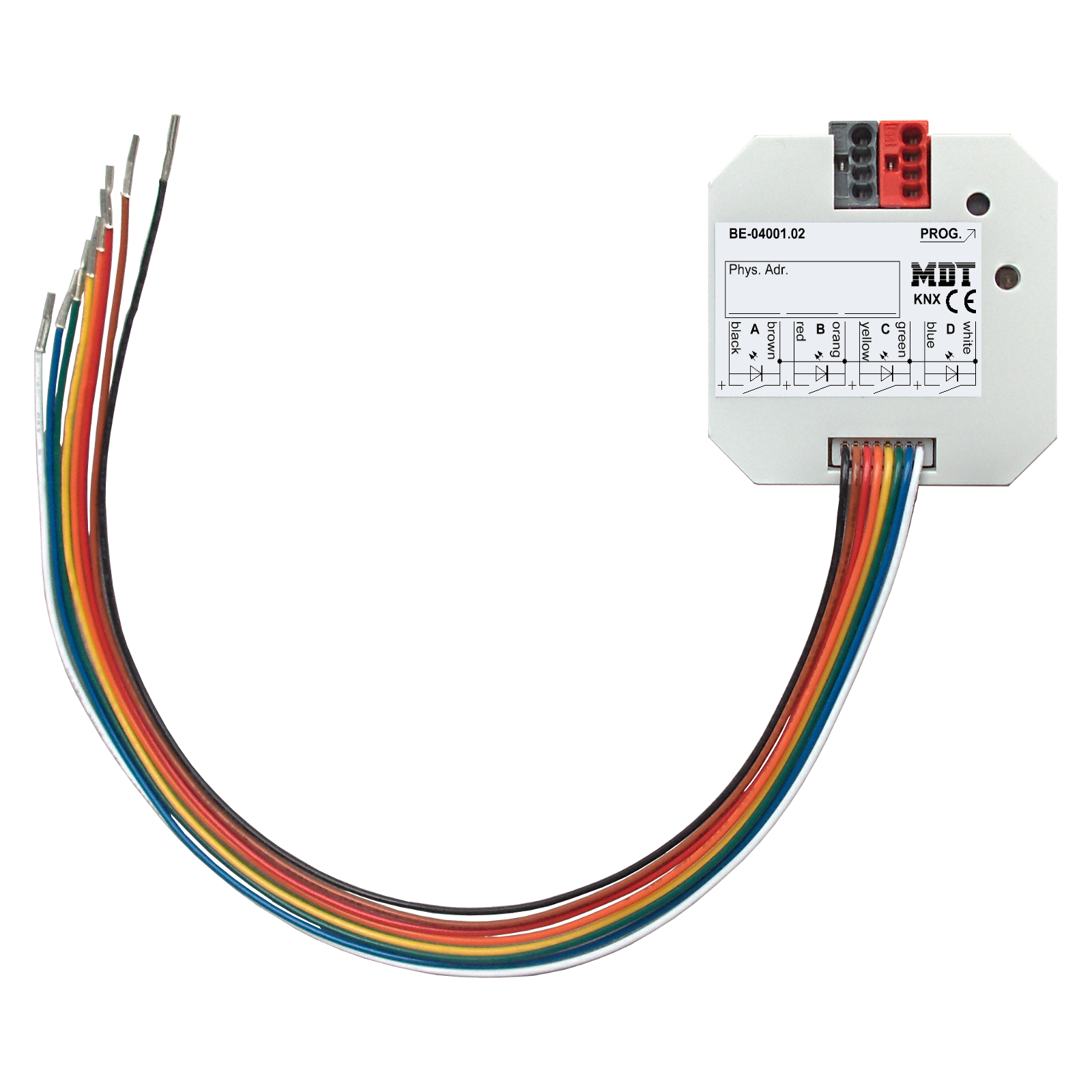

4-fold Push Button Interface Flush, Potential-free, LED Output
€58,20 Incl. tax €89,54 Incl. tax. In stock (4)
Specifications
Information
Universal Interface for KNX - 4-Fold
The Universal Interface is designed to integrate conventional buttons, switches, and contacts with the KNX system, making these devices "smart." This model offers extensive capabilities, including support for LED outputs and four integrated logic modules.
Key Features
- Connection for buttons and auxiliary contacts
- Each input can be set as a 1.5 mA low current output for LEDs
- New multi-touch function, sending up to 4 values/DPTs on the same or different objects
- Innovative group control with long/extra-long button press
- Four integrated logic modules, e.g., for input evaluation
- NO or NC contact operation, programmable button press duration
- Dimming and shutter function for 1- and 2-button operation
- Integrated pulse and switch counters with extensive counting functions
- Cyclic sending of contact state programmable
- Integrated bus coupling unit
- Easy flush-mounted installation (cable length: 22 cm)
Technical Specifications
| Property | Specification |
|---|---|
| Number of channels | 4 |
| Contact voltage | 3.3 VDC internal |
| LED current per channel | ~1 mA |
| KNX interface specification | TP-256 |
| Available software | ETS 5 |
| Permitted wire gauge | 0.8 mm Ø, solid core |
| Power supply | KNX bus |
| Power consumption | typ. <0.25 W |
| Input cable length | 10 m |
| Operating temperature range | 0 to +45°C |
| Dimensions (W x H x D) | 41 mm x 41 mm x 12 mm |
This device is designed for installation in a flush-mounted box or behind a button or switch. It should be installed in dry rooms and offers easy configuration via ETS software.
