2-fold Universal Interface Flush mounted, to connect 230VAC
€79,44 Incl. tax €122,21 Incl. tax. In stock (4)
Specifications
Information

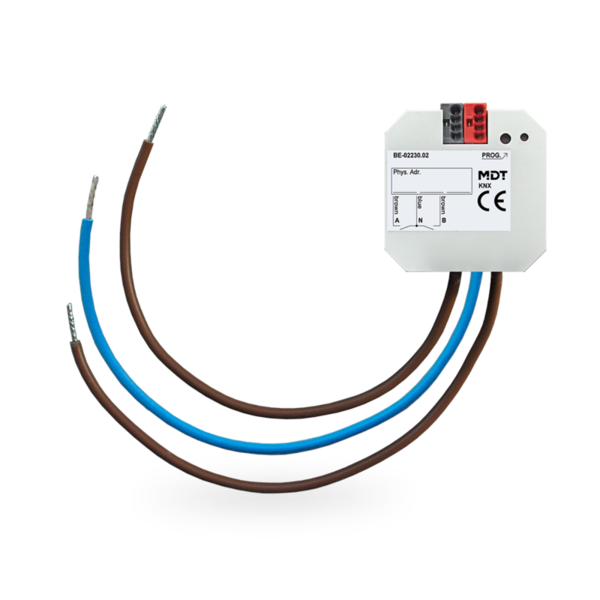

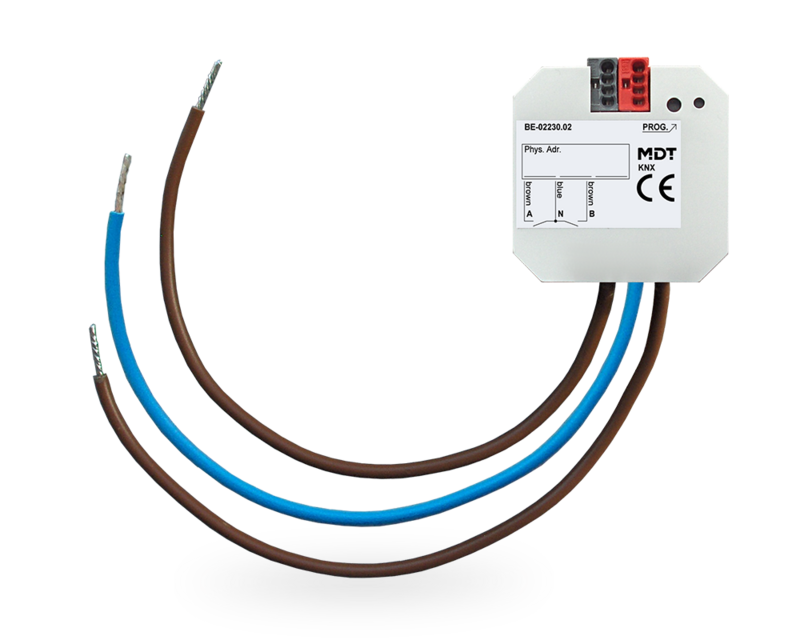

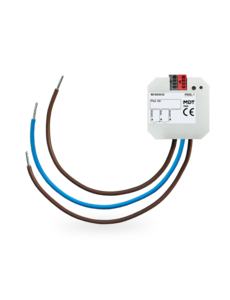

Universal Interface BE-02230.02 2-fold for 230VAC Signals
The Universal Interface BE-02230.02 offers a powerful solution for integrating conventional switches, buttons, or auxiliary contacts into KNX systems. Designed specifically for 230VAC signals, this interface detects status changes at the inputs and sends KNX telegrams based on the configured parameters.
Main Features:
- Connection of push-buttons or auxiliary contacts for 230VAC signals.
- Dimensions: 41 mm x 41 mm x 22 mm, suitable for flush mount installation.
- Multi-touch function: sends up to 4 values/DPTs on the same or different objects.
- Four integrated logic modules for complex control scenarios, such as evaluating window contacts.
- NO or NC contact operation, programmable button actions (short/long).
- Supports dimming and shutter functions for 1- and 2-button operation.
- Integrated pulse and switching counters, with extensive counting functions.
- Integrated bus coupling unit, powered via KNX bus (<0.25W consumption).
- Maximum cable length for inputs: 100 meters.
- Operating temperature range: 0 to +45°C.
- Protection class: IP20.
- Certification: Manufactured in Germany, ISO 9001 certified.
- 3-year warranty.
Technical Specifications:
- Number of channels: 2
- Contact voltage: 230VAC
- Switching voltage threshold: Typical 165VAC
- KNX interface: TP-256
- Available software: ETS 5
- Permitted wire gauge for KNX bus connection: 0.8mm Ø, solid core
- Power consumption: <0.25W via KNX bus
- Enclosure: IP20
- Operating temperature: 0 to +45°C
- Dimensions (W x H x D): 41 mm x 41 mm x 22 mm
With a maximum input cable length of 100 meters and easy-to-configure software via ETS, this interface offers flexibility and reliability for a wide range of smart home applications.
