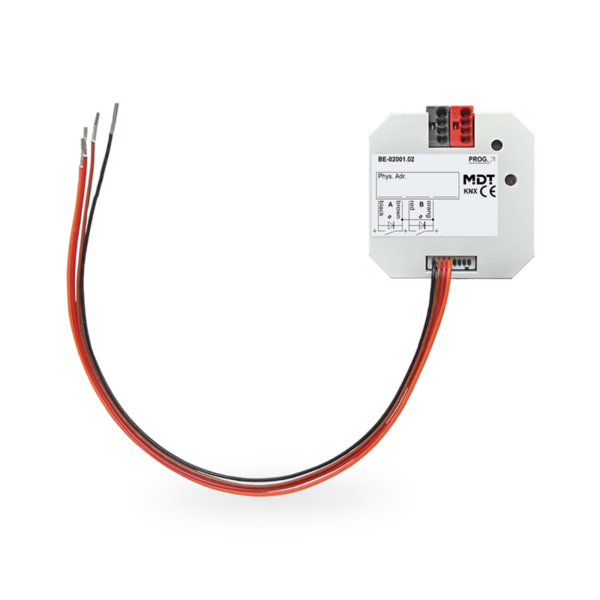

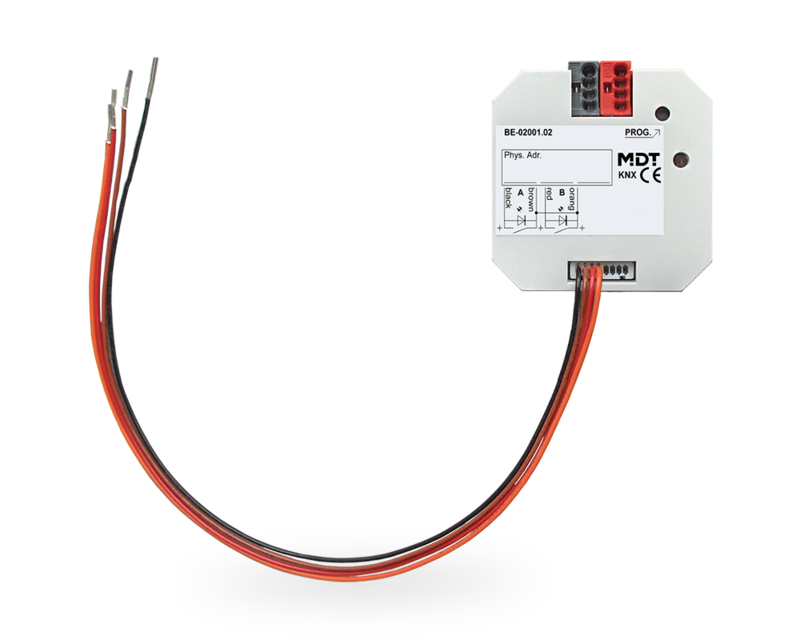

2-way Push Button Interface Flush-mounted, potential-free contacts, LED output

0 Review(s)

€35,10 Excl. tax €54,00 Excl. tax
€42,47 Incl. tax €65,34 Incl. tax. In stock (8)

Unit price: €35,10 / Piece

The Universal Interface BE makes conventional switches and contacts "smart" for KNX systems, supporting 2, 4, or 6 inputs with advanced logic functions. Read more

Specifications

Brand:

MDT

Article number:

BE-02001.02

EAN:

4251916110000

Availability:

In stock (8)

Delivery time:

Will be shipped within 1 to 2 working days.

Information

Datasheet

Universal Interface BE - Innovative KNX Solution for Smart Switches and Contacts

The Universal Interface BE is a versatile and powerful component for connecting conventional push buttons, switches, and other contacts to KNX systems. With versions supporting 2, 4, or 6 inputs, this device offers extensive possibilities for automating and controlling your smart building.

Key Features:

Supports 2, 4, or 6 potential-free contacts.
Each input can be configured as a 1.5 mA low-current output for LEDs (not available in 230VAC models).
New multi-touch function that can send up to 4 values/DPTs to the same or different objects.
Innovative group control with long or extra-long button press.
4 integrated logic modules for evaluating inputs and performing complex logic operations.
NO or NC contact operation with adjustable button press duration.
Dimming and shutter function for 1 or 2 button operation.
Integrated pulse and switching counters with extensive counting functions.
Cyclic sending of contact status, adjustable as needed.
Flush-mounted installation with 22 cm connection cables.
Dimensions: 41mm x 41mm x 12mm (depth may vary depending on model).
Integrated bus coupling unit for easy integration into KNX systems.

Technical Specifications:

Number of channels: 2, 4, or 6 depending on the model.
Contact voltage: 3.3VDC internal (230VAC for specific models).
KNX interface specification: TP-256.
Available application software: ETS 5.
Permitted wire gauge: 0.8mm Ø, solid core for KNX bus connection.
Power supply: KNX bus, typical consumption <0.25W.
Maximum cable length for inputs: 10m (100m for specific models).
Operating temperature range: 0 to +45°C.
Enclosure: IP 20, for dry rooms only.
Dimensions: 41mm x 41mm x 12mm.

The MDT Universal Interface BE is developed and manufactured in Germany, certified according to ISO 9001. This device offers a solid and reliable solution for integrating conventional switches and contacts into modern KNX-based building automation systems. With a 3-year warranty, you are assured of quality and durability.
