SK30-TC-VOC
KNX Temperature and VOC Sensor

Article number:
30513361 (white)
30513362 (anthracite)

What is VOC?
VOC stands for "Volatile Organic Compounds" – gases released from common materials such as paint, cleaning agents, furniture, and construction materials. High VOC levels indoors can cause health issues like headaches, fatigue, or irritation. In HVAC systems (heating, ventilation, air conditioning), VOC sensors are used to monitor indoor air quality and automatically control ventilation to maintain a healthy environment.

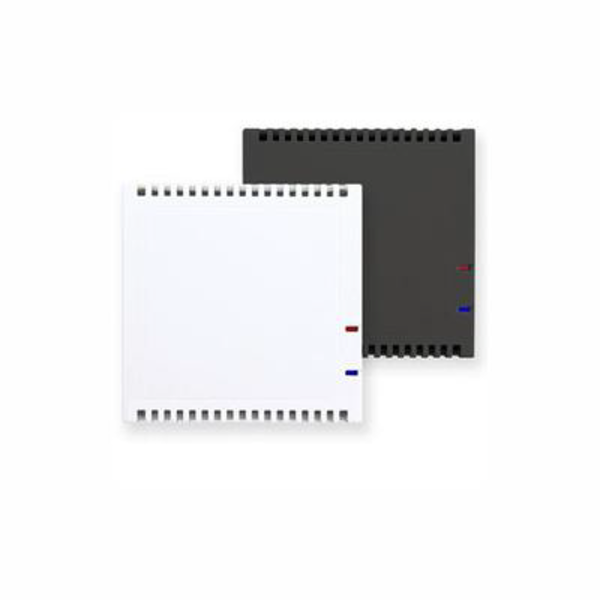

The Arcus-EDS SK30-TC-VOC is a compact KNX sensor (55 mm, IP20) for measuring temperature and VOC levels in indoor spaces. It is designed for smart building automation, offering integrated control and logic functions to manage heating, cooling, and ventilation based on air quality. Two binary inputs/outputs allow external buttons or switches to be connected for flexible control scenarios.

Applications

• Detection and control of room temperature
• Detection of VOC levels (volatile organic compounds)
• Decentralized control of KNX valves or thermal actuators
• Ventilation control based on air quality
• Evaluation of external switches or push buttons

Functions

• Air temperature measurement (sensor inside housing)
• VOC level measurement (sensor inside housing)
• Control functions for heating and cooling (can be combined)
• Setpoint temperatures for Comfort, Standby, Eco, and Protection via KNX HVAC objects
• Setpoint adjustment via KNX objects
• Storage of minimum and maximum temperatures
• Heat and frost alarm
• Thresholds for temperature and VOC levels
• Fan control via VOC thresholds or external inputs
• Adjustment of setpoint and maximum temperature values
• Controller output 0…100% or PWM for thermal actuators
• Valve rinse function
• Second temperature controller as auxiliary function
• Two binary inputs/outputs (floating)
• Status indication of temperature controller via LEDs
• Four logic blocks for linking internal and external signals

Technical Data

• Measurements: temperature, VOC concentration
• Temperature range: -25 .. +80°C
• Resolution: 0.02°C
• Accuracy: ± 0.4°C (5..60°C), otherwise ± 0.8°C
• VOC measurement range: see data sheet 2801-01, page 2
• Binary inputs/outputs: 2 (floating)
• Operating voltage: KNX bus voltage 21 .. 32 VDC
• Power consumption: approx. 240 mW (at 24 VDC)
• Ambient temperature: -25 .. +80°C (operation and storage)
• Ambient humidity: 10 .. 95% r.H. (non-condensing)
• Bus coupler: integrated
• ETS version: ETS 4 or higher (application: HLK305)
• Connection terminals: KNX 2-pole clamps (red/black)
• Protection class: IP20
• Housing: plastic, 55 mm standard frame size

Important Notes

• Intended for indoor use only
• Installation and configuration must be performed by certified KNX professionals
• Use ETS 4 or higher for configuration (application HLK305)
• Correct placement in the room is essential for accurate readings
