SK30-TC-VOC-PB Temperature & VOC Sensor with 2 buttons – 55mm case
€189,35 Incl. tax €253,33 Incl. tax. Out of stock, but available
Specifications
Information
KNX Temperature Sensor with VOC Detection
SK30-TC-VOC-PB

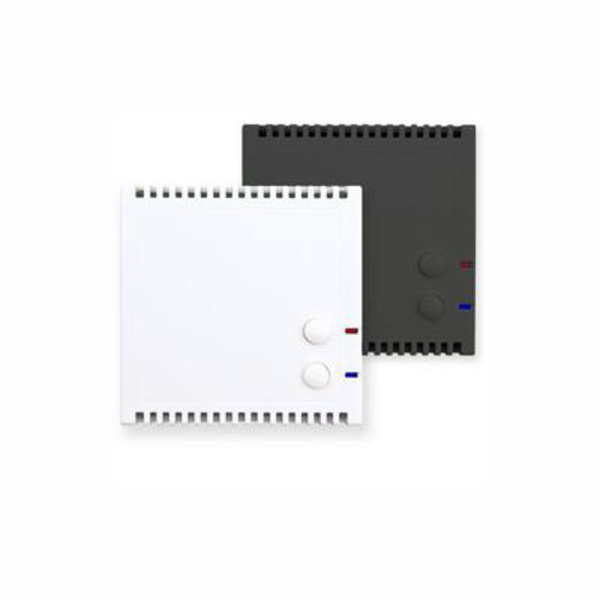

Variants
- SK30-TC-VOC-PB White – Article number: 30513371
- SK30-TC-VOC-PB Anthracite – Article number: 30513372
What is VOC?
VOC stands for "Volatile Organic Compounds". In HVAC systems, VOC levels are used as indicators of indoor air quality. VOCs are emitted by humans, building materials, furniture, and cleaning agents. High VOC concentrations can lead to poor air quality, reduced concentration, and health issues. VOC detection enables automatic ventilation control to ensure clean and healthy indoor air.
Application
The Arcus-EDS SK30-TC-VOC-PB is a compact KNX sensor with integrated temperature and VOC sensors, designed for monitoring indoor air quality and temperature. With two front buttons, logic functions and decentralized control options, this sensor is ideal for use in offices, schools, residential buildings and other intelligent KNX installations where comfort and air quality are essential.
Functions
- Room temperature measurement via internal sensor in the housing
- VOC detection (Volatile Organic Compounds) for air quality evaluation
- KNX control for heating, cooling and ventilation
- Setpoints for Comfort, Stand-by, Economy, and Protection modes
- Setpoint adjustment via KNX objects and/or front buttons
- Minimum and maximum temperature storage
- Heat and frost alarms
- Ventilation control based on VOC levels and external inputs
- Controller output 0–100% or PWM signal for thermal actuators
- Valve rinsing function (anti-limescale/maintenance)
- Secondary temperature controller for auxiliary use
- Two binary inputs/outputs (floating), configurable as input or output
- Front buttons for operation with LED status indication
- Four logic blocks for linking internal and external signals
Technical Data
| Measurements | Temperature, VOC concentration |
|---|---|
| Temperature range | -25 °C to +80 °C |
| Temperature resolution | 0.02 °C |
| Temperature accuracy | ±0.4 °C (5–60 °C), otherwise ±0.8 °C |
| VOC measuring range | See datasheet 2802-01 page 2 |
| Front buttons | 2 pcs |
| Binary I/O | 2 (floating) |
| Power supply | KNX bus voltage 21–32 VDC |
| Power consumption | approx. 240 mW at 24 VDC |
| Operating temperature | -25 to +80 °C |
| Storage temperature | -25 to +80 °C |
| Ambient humidity | 10–95% RH, non-condensing |
| Bus coupler | Integrated |
| Commissioning | Via ETS version 4 or higher (application HLK305) |
| Connections | 2-pin KNX terminals (red/black) |
| Protection class | IP20 |
| Housing | Plastic, 55 mm standard frame size |
Important Notes
- This sensor is intended for indoor use only (IP20).
- To ensure accurate VOC evaluation, regular ventilation is recommended.
- Installation and configuration should only be performed by certified KNX professionals using ETS software.
- Please refer to the full datasheet for VOC specifications and limits: 2802-01
