SK30-TC-CO2 Temperature Sensor CO2 Sensor 55 mm - IP20
€190,94 Excl. tax
€255,43 Excl. tax
€231,04 Incl. tax €309,07 Incl. tax. Out of stock, but available
€231,04 Incl. tax €309,07 Incl. tax. Out of stock, but available
KNX sensor (55 mm, IP20) for measuring temperature and CO2 with control for heating, cooling, and ventilation. Internal sensors, binary I/Os and logic for smart building control. Read more
Specifications
Brand:
Arcus
Article number:
30512361
EAN:
0642125991285
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information

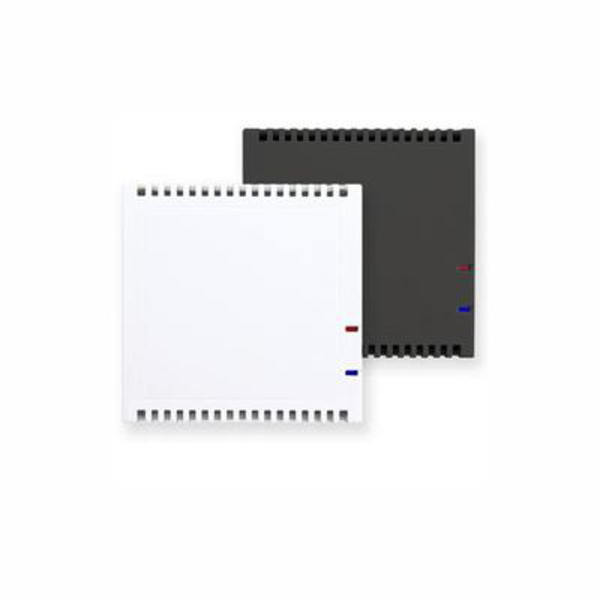

SK30-TC-CO2
KNX Temperature and CO₂ Sensor
Article number:
30512361 (white)
30512362 (anthracite)
The Arcus-EDS SK30-TC-CO2 is a compact KNX sensor (55 mm, IP20) for measuring temperature and CO₂ concentration in indoor environments. It is designed for use in building automation, offering integrated control and logic functions for efficient climate management. With built-in binary inputs and outputs, the device enables decentralized control of KNX valves or thermal actuators, as well as ventilation control based on air quality.
Functions
- Measurement of air temperature (sensor in the housing)
- Measurement of CO₂ concentration (sensor in the housing)
- Control functions for heating and cooling (also combined)
- Setpoint temperatures for Comfort, Standby, Eco and Protection via KNX objects
- Setpoint adjustment via KNX
- Storage of minimum and maximum temperature values
- Heat and frost alarm
- Threshold values for temperature and CO₂ levels
- Fan control via CO₂ thresholds or external inputs
- Control output 0–100% or PWM for thermal actuators
- Valve rinsing function
- Second temperature controller as auxiliary function
- 2 binary inputs/outputs (potential-free)
- Temperature control status display via LEDs
- Four logic blocks for linking internal and external signals
Technical Data
- Measurements: temperature, CO₂ concentration
- Temperature range: 0 .. +50°C
- Temperature resolution: 0.02°C
- Temperature accuracy: ± 0.4°C (5..60°C), otherwise ± 0.8°C
- CO₂ measurement range: 400 – 5000 ppm
- CO₂ accuracy: ± (50 ppm + 3% of the measured value)
- Binary inputs/outputs: 2 (potential-free)
- Operating voltage: via KNX bus (21 .. 32 VDC)
- Power consumption: approx. 240 mW (at 24 VDC)
- Ambient temperature: 0 .. +50°C (operation), -25 .. +60°C (storage)
- Ambient humidity: 0 .. 95% r.H. (non-condensing)
- Bus coupler: integrated
- ETS version: ETS 4 or higher (application: HLK305)
- Connection terminals: KNX 2-pin terminals (red/black)
- Protection class: IP20
- Housing: plastic, 55 mm standard frame size
Important Notes
- The sensor is intended for indoor use only.
- Installation and configuration must be carried out by certified KNX professionals.
- Use ETS 4 or higher to program the device (application HLK305).
- Correct placement in the room is essential for accurate measurements.
