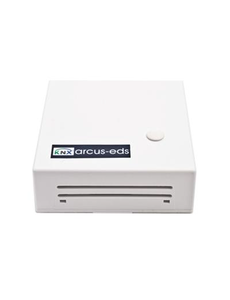

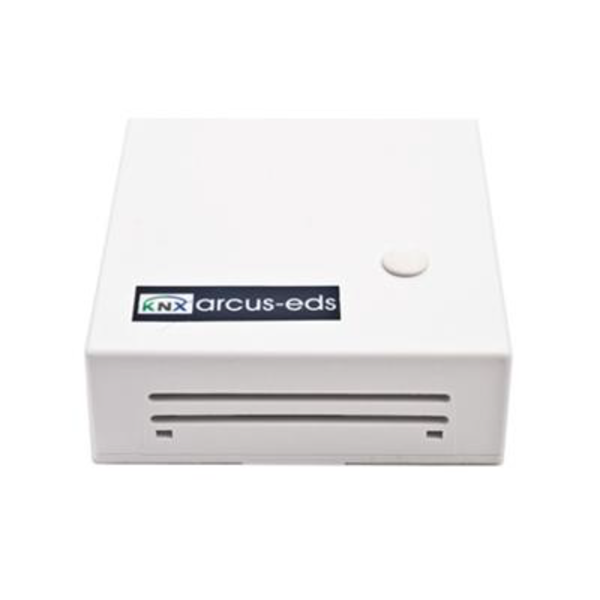

SK20-TC-VOC-2B Temperature & VOC Sensor - surface KNX, IP20
€189,35 Incl. tax €253,33 Incl. tax. Out of stock, but available
Specifications
Information
KNX Temperature and VOC Sensor – Surface Mounted
SK20-TC-VOC-2B – Art. No. 30513261
What is VOC?
VOC stands for "Volatile Organic Compounds". These are substances released by people, furniture, cleaning products, paints, and building materials. In HVAC systems, the VOC level is used as an indicator of indoor air quality. The SK20-TC-VOC-2B detects VOC levels and enables automatic ventilation control to maintain a healthy and comfortable indoor climate.
Application
The Arcus-EDS SK20-TC-VOC-2B is a compact surface-mounted sensor for KNX systems, designed for measuring and controlling indoor temperature and VOC concentration. Suitable for offices, schools, residential buildings, and smart environments where air quality and energy efficiency are key. It includes two configurable binary I/Os and logic functions for versatile HVAC automation.
Functions
- Room temperature measurement via integrated internal sensor
- VOC detection via built-in VOC sensor
- Control functions for heating and cooling (also combinable)
- Setpoints for Comfort, Standby, Economy and Protection modes
- Setpoint changes via KNX objects
- Storage of minimum and maximum temperature values
- Heat and frost alarm
- Configurable temperature limits
- Fan control via external inputs
- Tracking of setpoints and limit values via KNX
- Control output 0–100% or PWM for thermal actuators
- Valve rinse function (maintenance / anti-limescale)
- Second temperature controller as auxiliary control
- Two binary I/Os (potential-free), configurable as input/output
- Four logic blocks for linking internal and external signals
Technical Data
| Measured values | Temperature, VOC concentration |
|---|---|
| Control | Integrated |
| Temperature range | -25 °C to +80 °C |
| Resolution | 0.02 °C |
| Accuracy | ±0.4 °C (5–60 °C), otherwise ±0.8 °C |
| VOC measurement range | See datasheet 2850-01, page 2 |
| Binary inputs/outputs | 2 (potential-free) |
| Power supply | KNX bus voltage 21–32 VDC |
| Power consumption | Approx. 240 mW at 24 VDC |
| Operating temperature | -25 to +80 °C |
| Storage temperature | -25 to +80 °C |
| Ambient humidity | 10–95% RH, non-condensing |
| Bus coupler | Integrated |
| Auxiliary voltage | Not required |
| Commissioning | Via ETS version 4 or higher (application HLK305) |
| Connections | 2-pin KNX terminal (red/black) |
| Protection rating | IP20 |
| Housing | Plastic, white, surface mounted |
| Dimensions | 71 x 71 x 25 mm |
Important Notes
- Designed for indoor use only (IP20).
- Regular ventilation is recommended for accurate VOC detection.
- All functions are configured via ETS software (version 4 or higher).
- Refer to datasheet 2850-01 for VOC specifications and ranges.
- Installation should be carried out by a certified KNX professional.
