SK10-TC-HTF – Temperature sensor with sleeve for precise reading
€171,24 Incl. tax €229,08 Incl. tax. Out of stock, but available
Specifications
Information

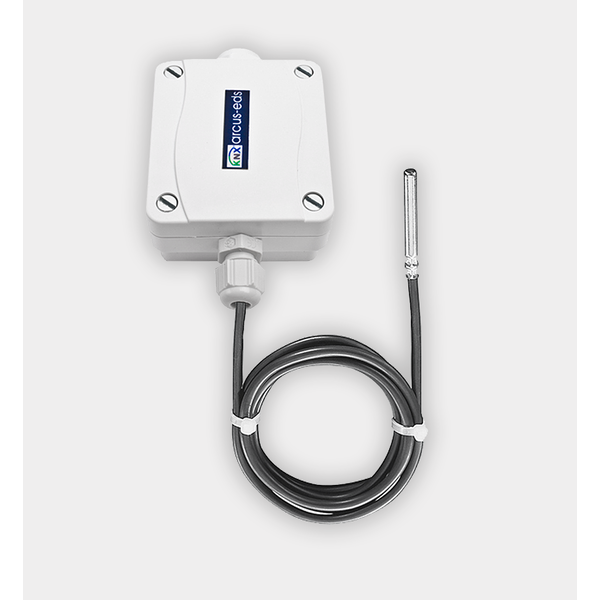

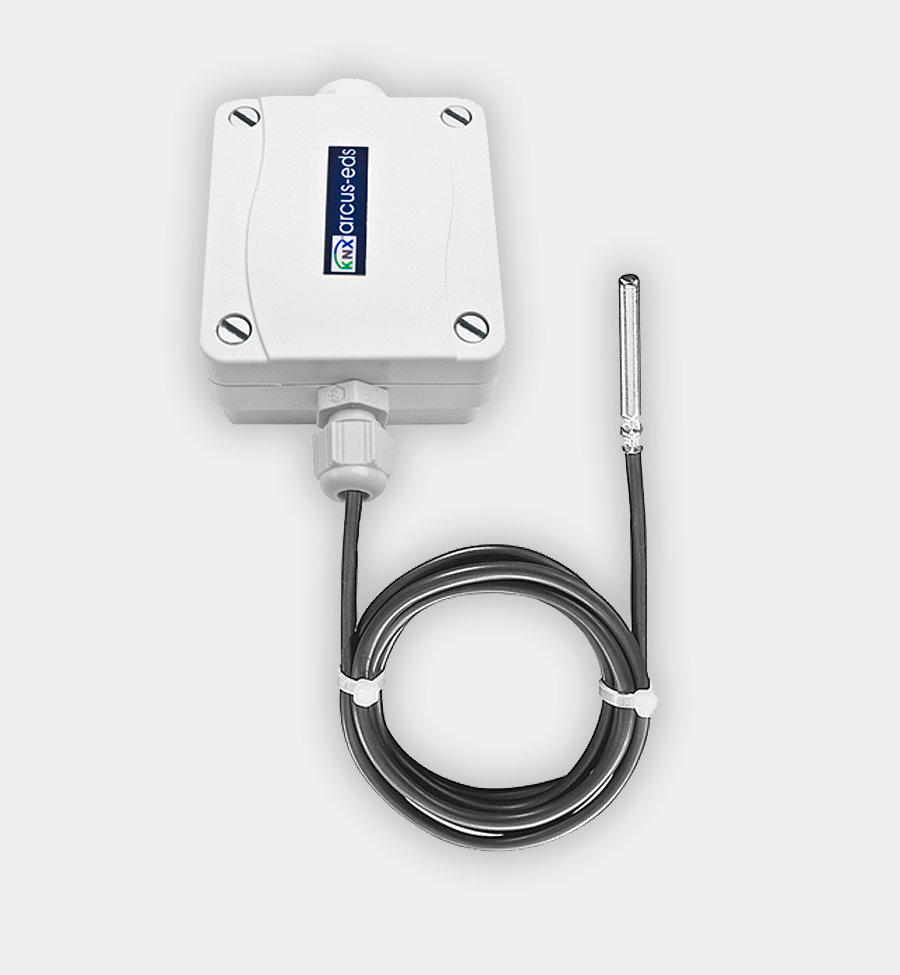

Arcus-EDS SK10-TC-HTF Temperature Sensor with Protective Sleeve for KNX
The SK10-TC-HTF by Arcus-EDS is a high-precision KNX temperature sensor with a protective sleeve, designed for measuring and controlling indoor air temperature in HVAC systems. The sensor comes with an encapsulated probe (PVC, silicone, or PTFE) and is ideal for integration into building automation systems for climate regulation and energy efficiency.
Important: This sensor measures air temperature via a sleeve-type probe and can optionally work with an external temperature input. The integrated controller enables both heating and cooling control directly via KNX.
Applications
- Indoor air temperature monitoring
- Heating and cooling control via KNX
- Fan coil unit control
- HVAC systems with integrated logic
Main Functions
- Temperature measurement via sleeve sensor (optionally weighted with external input)
- Control functions for heating and cooling applications
- Setpoints for Comfort, Standby, Economy, and Frost Protection modes
- Setpoint adjustment via KNX objects
- Minimum and maximum temperature storage
- Heat and frost alarm
- Configurable temperature limits
- Fan control through external inputs
- Control output: 0–100% or PWM signal for thermal actuators
- Valve flushing function
- Second controller as auxiliary temperature controller
- Four logic blocks for internal and external signal processing
Technical Specifications
- Temperature Measurement Range:
- PVC: -35°C to +105°C
- Silicone: -50°C to +180°C
- PTFE: -50°C to +250°C
- Resolution: 0.02°C
- Accuracy: Class B, ±(0.3°C + 0.005 × T)
- Operating Voltage: KNX Bus Voltage 21–32 VDC
- Power Consumption: approx. 240 mW (at 24 VDC)
- Ambient Temperature (module): -25°C to +80°C (operation and storage)
- Ambient Humidity: 0–100% r.h., non-condensing
- Bus Coupler: Integrated
- Auxiliary Power Supply: Not required
- ETS Compatibility: ETS4 or higher (database HLK305)
- Terminal Connections: KNX 2-pole clamps (red/black)
- Protection Class: IP54/IP65 (depending on installation)
- Housing: Plastic
- Dimensions: 72 × 64 × 40 mm
Available Variants
- 30511002 – 1.5 m PVC sleeve
- 30511003 – 1.5 m silicone sleeve
- 30511055 – 1.5 m PTFE sleeve
Brand: Arcus-EDS
