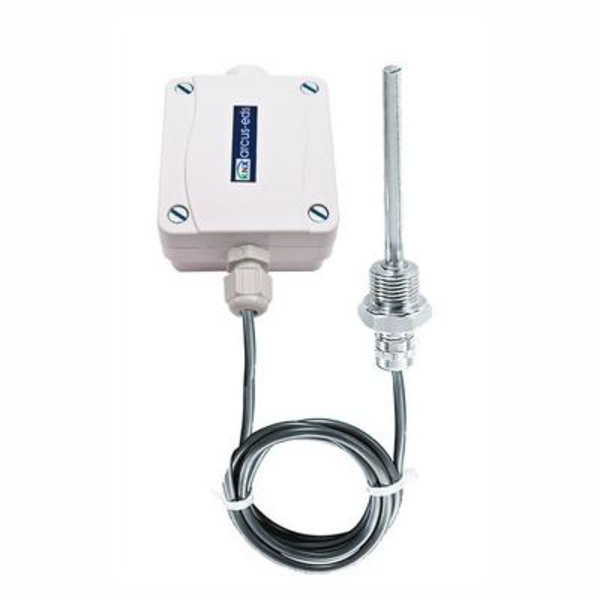

SK10-TC-ESTF – Temp sensor screw-in / immersion sleeve
€180,30 Incl. tax €241,20 Incl. tax. Out of stock, but available
Specifications
Information
Arcus-EDS SK10-TC-ESTF – KNX Temperature Sensor for Air Ducts
The SK10-TC-ESTF is a high-precision KNX temperature sensor from Arcus-EDS, designed for measuring and controlling air temperature in ventilation and HVAC systems. Available in multiple versions (PVC or silicone, 50 mm or 100 mm), this screw-in / immersion sleeve sensor is ideal for reliable HVAC applications with full KNX integration.
Applications
- Measurement and control of air temperature in ducted ventilation systems
- Integration into KNX-based building automation systems
- Suitable for heating and cooling in residential and commercial buildings
Functions
- Air temperature measurement via screw-in or immersion sleeve
- Control functions for heating and cooling (can be combined)
- Selectable setpoints: Comfort, Standby, Economy, and Frost Protection
- Setpoint adjustment via KNX objects
- Storage of minimum and maximum temperature values
- Overheat and frost alarms
- Configurable temperature limits
- Fan control via external inputs
- Setpoint and maximum temperature adaptation
- Output: 0–100% or programmable PWM for thermal actuators
- Valve flush function
- Second temperature controller as auxiliary control
- Four logic blocks for linking internal and external signals
Technical Data
- Measured variable: Temperature
- Control: Integrated
- Temperature range:
- -35 to +105 °C (PVC version)
- -50 to +180 °C (Silicone version)
- Resolution: 0.02 °C
- Accuracy: Class B, ±(0.3 °C + 0.005 × T)
- Operating voltage: KNX bus voltage 21–32 VDC
- Power consumption: approx. 240 mW (at 24 VDC)
- Ambient temperature (module): -25 to +80 °C (operating and storage)
- Humidity: 0–100% r.H. (non-condensing)
- Bus coupler: Integrated
- Auxiliary supply: Not required
- Commissioning: via ETS version 4 or higher (application: HLK305)
- Connection: 2-pole KNX clamps (red/black)
- Protection class: IP54/IP65
- Housing: Plastic, white
- Housing dimensions: 72 × 64 × 40 mm (L × W × H)
Available Versions
- 30511008 – 50 mm PVC
- 30511009 – 100 mm PVC
- 30511010 – 50 mm Silicone
- 30511011 – 100 mm Silicone
Important: The sensor must be installed at a suitable location within the air duct with sufficient airflow. Choose the appropriate sleeve material (PVC or silicone) based on the required temperature range and environmental conditions. Fully KNX-compatible, no external power supply required.
