Neo-TC - Temperature sensor in housing, KNX, aluminium, IP20
€207,48 Incl. tax €277,56 Incl. tax. Out of stock, but available
Specifications
Information
Product Description Neo-TC - Temperature Sensor
The Neo-TC KNX temperature sensor by Arcus-EDS is designed for precise measurement and control of indoor air temperature. This version features an integrated sensor inside the housing and is made of high-quality, sanded aluminium in a square shape. The design fits standard flush-mounted boxes (60/68 mm) in dry indoor environments.

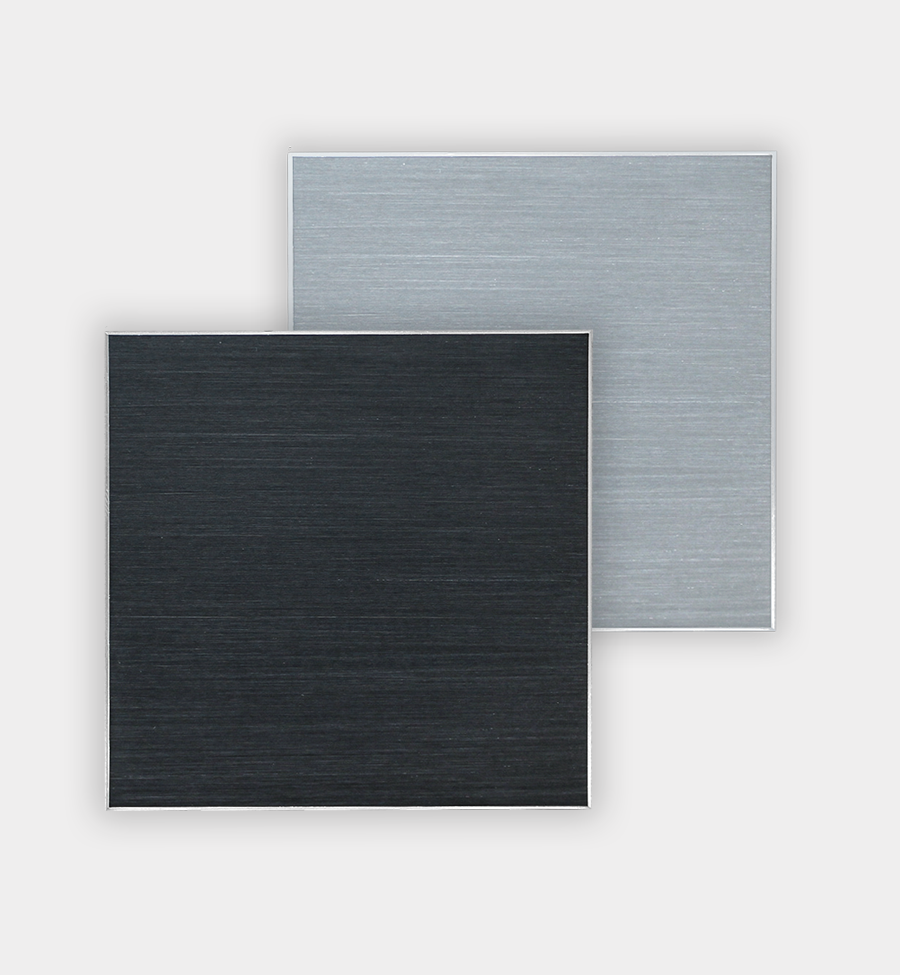

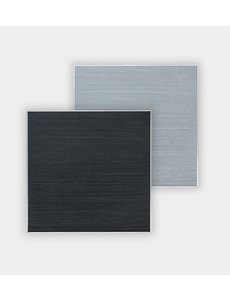

The sensor is available in the following two variants:

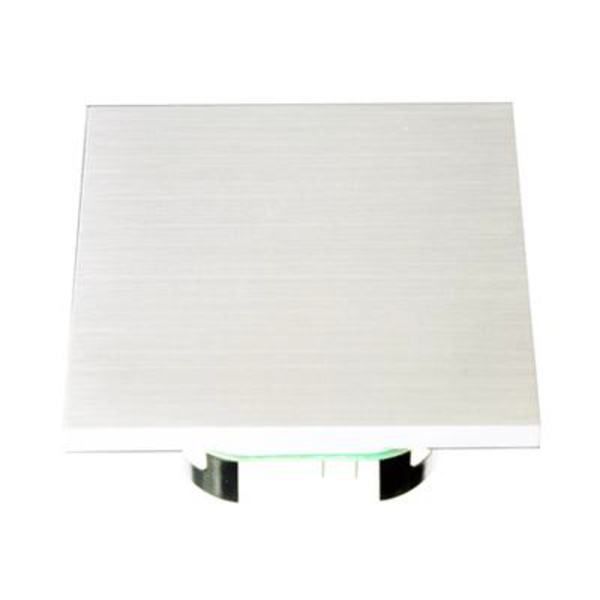

- 30511583 – Aluminium, square, sanded (natural finish)

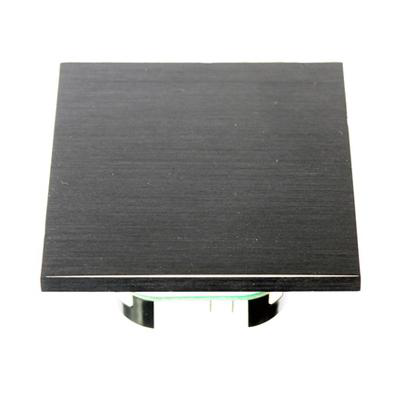

- 30511584 – Aluminium, square, sanded, black anodized
The sensor is ideal for use in KNX-controlled heating, cooling and ventilation systems. It offers extensive control functions, logical linking capabilities and support for binary I/O signals, making it suitable for both residential and commercial KNX installations.
Applications
- Measuring and controlling indoor temperature
- Decentralized control of KNX valves or thermal actuators
- Decentralized ventilation control
- Evaluation of external switches and push buttons
Key Features
- Sensor inside housing, optionally weighted with external sensor
- Control functions for heating and cooling (can be combined)
- Setpoints for Comfort, Standby, Economy, and Protection via KNX HVAC objects
- Setpoint adjustment via objects
- Storage of minimum and maximum temperatures
- Heat and frost alarm
- Configurable temperature limits
- Fan control via external inputs
- 0–100% controller output or programmable PWM for thermal actuators
- Valve rinse function
- Second temperature controller as auxiliary
- Four binary inputs/outputs (floating)
- Four logic blocks for internal and external signal linking
Technical Specifications
| Temperature Measurement | Yes |
| Control | Integrated |
| Temperature Range | -25 to +80 °C |
| Resolution | 0.02 °C |
| Accuracy | ±0.4 °C (5–60 °C), otherwise ±0.8 °C |
| Binary Inputs/Outputs | 4 (floating) |
| Operating Voltage | KNX bus voltage 21–32 VDC |
| Power Consumption | approx. 240 mW at 24 VDC |
| Ambient Temperature | Operation: -25 to +80 °C, Storage: -25 to +80 °C |
| Humidity | 0–100% r.h., non-condensing |
| Bus Coupler | Integrated |
| Auxiliary Power Supply | Not required |
| ETS Compatibility | From ETS 4, application HLK305 |
| Connection Terminals | KNX 2-pin (red/black) |
| Protection Class | IP20 |
| Housing | Aluminium, sanded, square (80 x 80 x 6 mm) |
Important Note
This sensor is intended for use only in dry indoor environments. Installation must be done in a standard flush-mounted box. When used with external temperature sensors, additional measurement points can be integrated into the control system.
