Sleeve Probe Temperature HTF-PT1000 – PVC, Silicone, PTFE -50..+250°C
€17,77 Incl. tax €23,79 Incl. tax. Out of stock, but available
Specifications
Information

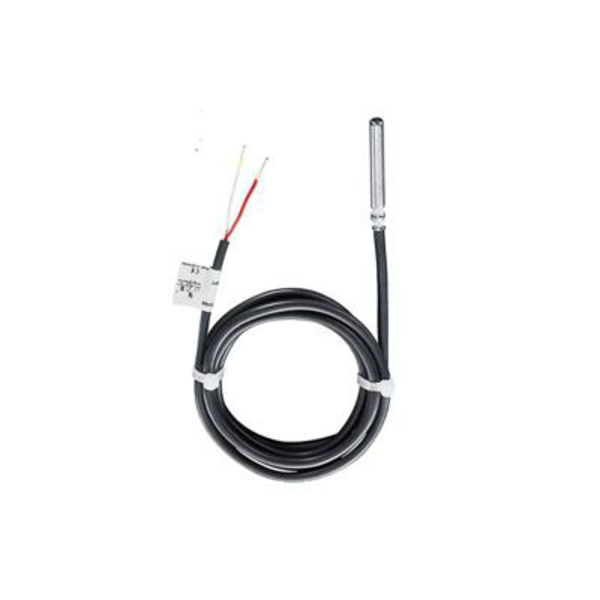

Sleeve Probe Temperature HTF-PT1000
Description
The HTF-PT1000 temperature sensor from Arcus-EDS is a robust and precise sleeve probe with a stainless steel sensing tube. The sensor features an integrated PT1000 element (class B according to DIN EN 60751) and is designed for reliable temperature measurement in technical installations and industrial environments.
Applications
- HVAC systems (heating, ventilation, air conditioning)
- Building automation (e.g. KNX integration)
- Industrial process monitoring
- Measurement and control technology
Technical data
| Sensor: | PT1000 (DIN EN 60751, class B) |
| Sensing sleeve: | Stainless steel (V2A) |
| Sleeve length: | approx. 50 mm |
| Sleeve diameter: | 6 mm |
| Connection cable: | 1.5 meters, fixed connection |
| Protection class: | IP54/IP65 (depending on installation) |
Available variants
| Variant | Article number | Cable type | Temperature range |
|---|---|---|---|
| HTF PT1000 PVC | 90100002 | PVC cable 1.5 m | -35 °C to +105 °C |
| HTF PT1000 Silicone | 90100003 | Silicone cable 1.5 m | -50 °C to +180 °C |
| HTF PT1000 PTFE | 90100055 | PTFE cable 1.5 m | -50 °C to +250 °C |
Note
The protection class IP54/IP65 depends on correct installation and sealing of the cable entry. The sensor is not suitable for direct immersion in liquids. When selecting a variant, consider the required temperature range and the chemical resistance of the cable material.
