Surface Probe OFTF-PT1000 – Surface-mounted, -30..+105 °C
€31,31 Incl. tax €41,89 Incl. tax. Out of stock, but available
Specifications
Information

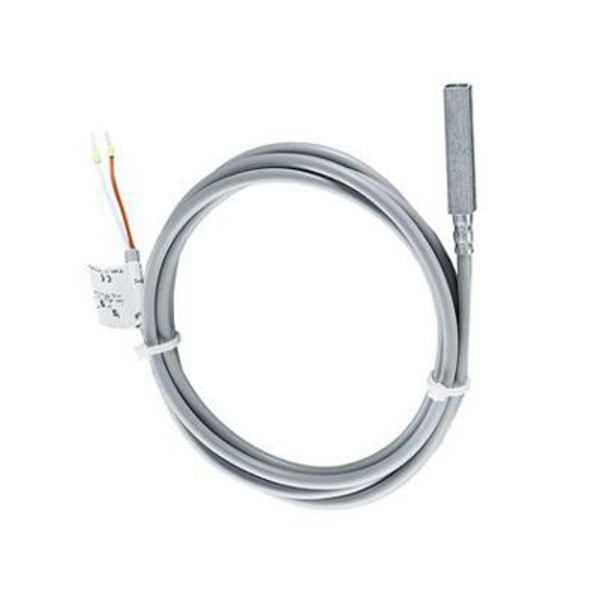

OFTF-PT1000 Surface Probe
Arcus-EDS Article No. 90100001
Description
The OFTF-PT1000 surface probe from Arcus-EDS (article number 90100001) is a reliable temperature sensor for surface applications, suitable for use on pipes, housings, or flat surfaces. The sensor features a PT1000 measuring element (DIN EN 60751, class B) and is equipped with a stainless steel contact area and a 1.5-meter PVC connection cable. Its compact design and easy mounting make it ideal for use in building automation and industrial systems.
Applications
- Surface temperature measurement on pipes and housings
- HVAC systems and building automation (e.g. KNX)
- Process monitoring and temperature control
- Compact solutions for retrofit or surface mounting
Technical Specifications
| Article number: | 90100001 |
| Sensor: | PT1000 (DIN EN 60751, class B) |
| Measuring range: | -30 °C to +105 °C |
| Sensor housing: | Stainless steel contact surface |
| Mounting type: | Surface-mounted (e.g. on pipe or enclosure) |
| Connection cable: | 1.5 meter PVC cable, 2-wire |
| Protection class: | IP54 / IP65 (depending on mounting and sealing) |
| Environmental conditions: | Indoor use or protected environments |
Important Note
Proper thermal contact with the surface is essential for accurate readings. Use suitable thermal paste or mounting material to ensure reliable operation. The specified protection class (IP54/IP65) applies only with correct installation and sealed cable entry. This sensor is not suitable for direct immersion in liquids.
