KNX Drossel-DR16: Choke for KNX bus decoupling, up to 1600 mA
€71,13 Excl. tax
€95,16 Excl. tax
€86,07 Incl. tax €115,14 Incl. tax. Out of stock
€86,07 Incl. tax €115,14 Incl. tax. Out of stock
Choke for electrically decoupling the KNX bus from the power supply. Handles up to 1600 mA. DIN rail mounting with reset button and status LED. Read more
Specifications
Brand:
Siemens
Article number:
66000016
EAN:
642125987981
Availability:
Out of stock
Delivery time:
Currently unknown. We recommend contacting us for the most up-to-date information regarding the expected delivery time of this product.
Information
Datasheet

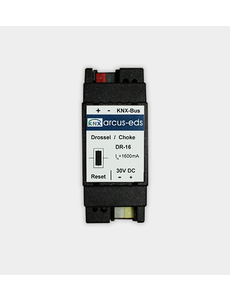

KNX-Drossel-DR16 – Choke for Bus Decoupling
Item number: 66000016
EAN code: 642125987981
The KNX-Drossel-DR16 from Arcus-EDS is a robust choke designed to electrically decouple the KNX bus from the power supply. This component is essential for KNX installations that require stable, interference-free communication between devices. By using this choke, the power supply is effectively separated from the data communication layer, ensuring reliable system operation and protecting the bus line.
Key Features
- Electrical decoupling of the KNX bus and power supply
- Maximum current capacity: 1600 mA
- Reset button to temporarily disconnect bus power (approx. 10 seconds)
- Status LED for reset indication
- Compact DIN rail mounting design (35 mm)
Technical Specifications
| Rated voltage: | 30 VDC |
| Rated current: | 1600 mA |
| Input: | EIB 2-pole terminal (white/yellow) |
| Output: | EIB 2-pole terminal (red/black) |
| Reset function: | Manual reset via push button, LED indicator |
| Operating temperature: | -25 .. +55 °C |
| Storage temperature: | -25 .. +85 °C |
| Mounting: | DIN rail (35 mm), REG housing 2TE |
| Housing: | Black plastic |
| Protection rating: | IP20 |
Note
Important: This choke should only be used with a suitable KNX power supply. The reset button briefly disconnects the bus voltage to restart connected KNX devices.
Item Information
- Manufacturer: Arcus-EDS GmbH
- Item number: 66000016
- EAN code: 642125987981
