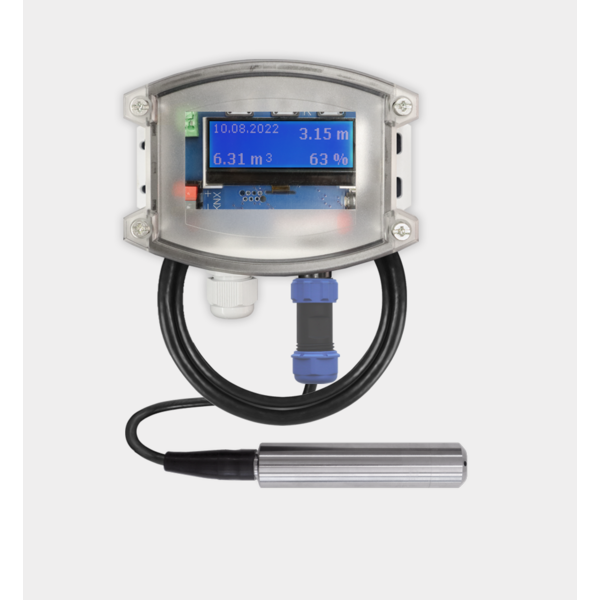

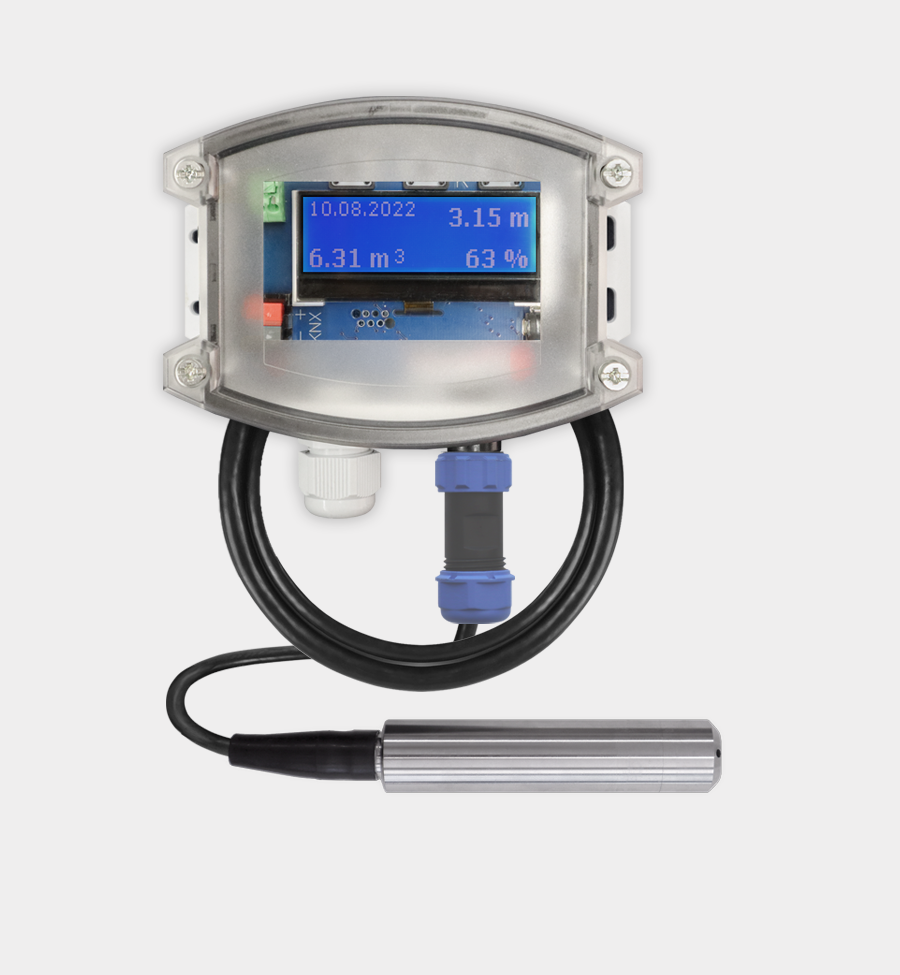

SK80-F-T-PMO-10 Hydrostatic Fill Level Sensor up to 10 m
€472,74 Excl. tax
€632,43 Excl. tax
€572,02 Incl. tax €765,24 Incl. tax. Out of stock, but available
€572,02 Incl. tax €765,24 Incl. tax. Out of stock, but available
Hydrostatic fill level sensor with temperature detection for oil. Measures up to 10 m. Includes 15 m cable. KNX integration, IP65, configurable locally or via ETS. Read more
Specifications
Brand:
Arcus
Article number:
30807380
EAN:
0642125991520
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
KNX Fill Level Sensor for Oil
SK80-F-T-PMO-10 - Art. No. 30807380
Application
The Arcus SK80-F-T-PMO-10 (Art. No. 30807380) is an advanced hydrostatic fill level sensor with integrated temperature measurement, specifically designed for accurately measuring the fill level of oil-based liquids up to a maximum of 10 meters. This sensor is ideal for applications such as storage tanks, industrial liquid reservoirs, and technical installations where reliable and continuous level monitoring is essential.
Features
- Hydrostatic measurement of fill level based on liquid column pressure
- Integrated temperature measurement
- Modbus communication via KNX
- Measurement in volume (m³), distance (mm), and percentage (%)
- Adjustable limit values (upper/lower) with potential-free switching output
- Flexible transmission options: none, cyclical, or on change
- 1 mm resolution with 0.5% full-scale accuracy
- Fully configurable using ETS software
Technical Data
| Article Number | 30807380 |
|---|---|
| Measurement Principle | Hydrostatic, with temperature detection |
| Application | Oil |
| Maximum Fill Height | 10 meters |
| Sensor Cable Length | 15 meters (extendable up to 40 meters) |
| Sensor Measuring Range | HS 10: 0 – 10,000 mm |
| Accuracy | 0.5% of full scale (FS) |
| Resolution | 1 mm |
| Measured Values | Fill level (m³), distance (mm), percentage (%) |
| Transmission Options | No sending, cyclical sending, sending on change |
| Limit Values | Upper and lower thresholds, configurable output |
| Switching Output | Potential-free, 20 mA / 5 V .. 230 V AC/DC |
| Power Supply | KNX bus voltage 21 – 32 V DC, 20 mA |
| Power Consumption | 400 mW |
| Bus Coupler | Integrated |
| Protection Class | IP65 |
| Ambient Temperature (module) | Operation: -20 to +55 °C / Storage: -20 to +85 °C |
| Ambient Temperature (sensor) | Hydrostatic sensor: 0 to +60 °C |
| Ambient Humidity | 0 – 95% RH, non-condensing |
| Connections | 2-pin KNX terminal (red-black) |
| Housing | Plastic, grey with transparent cover |
| Mounting | With 2–4 screws |
| Dimensions | 120 × 90 × 50 mm |
| Commissioning | Via ETS software with application program SK80_F.knxprod |
Important Notes
- The sensor is delivered unparameterized.
- All functions and communication settings must be configured using ETS.
- Parameters not related to KNX communication can also be set locally by opening the cover.
- It is recommended to use original extension cables (15 m, 30 m, or 40 m) for longer installation distances.
- Refer to the corresponding datasheet: 3730_e2_SK80-F.pdf
