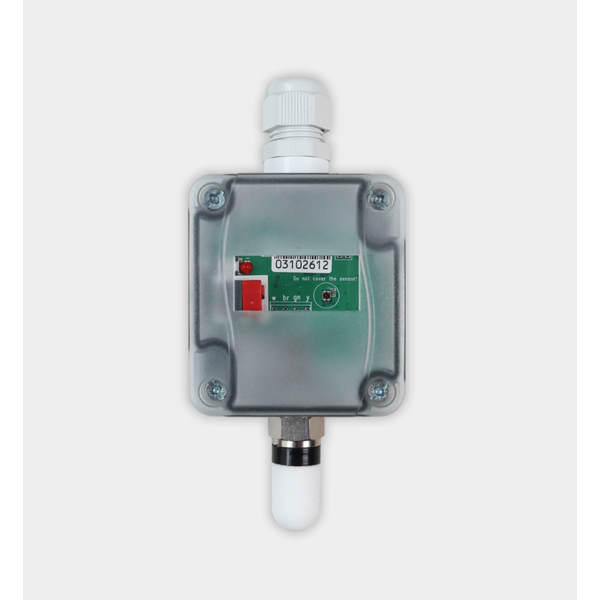

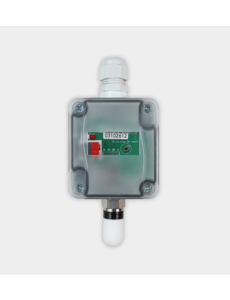

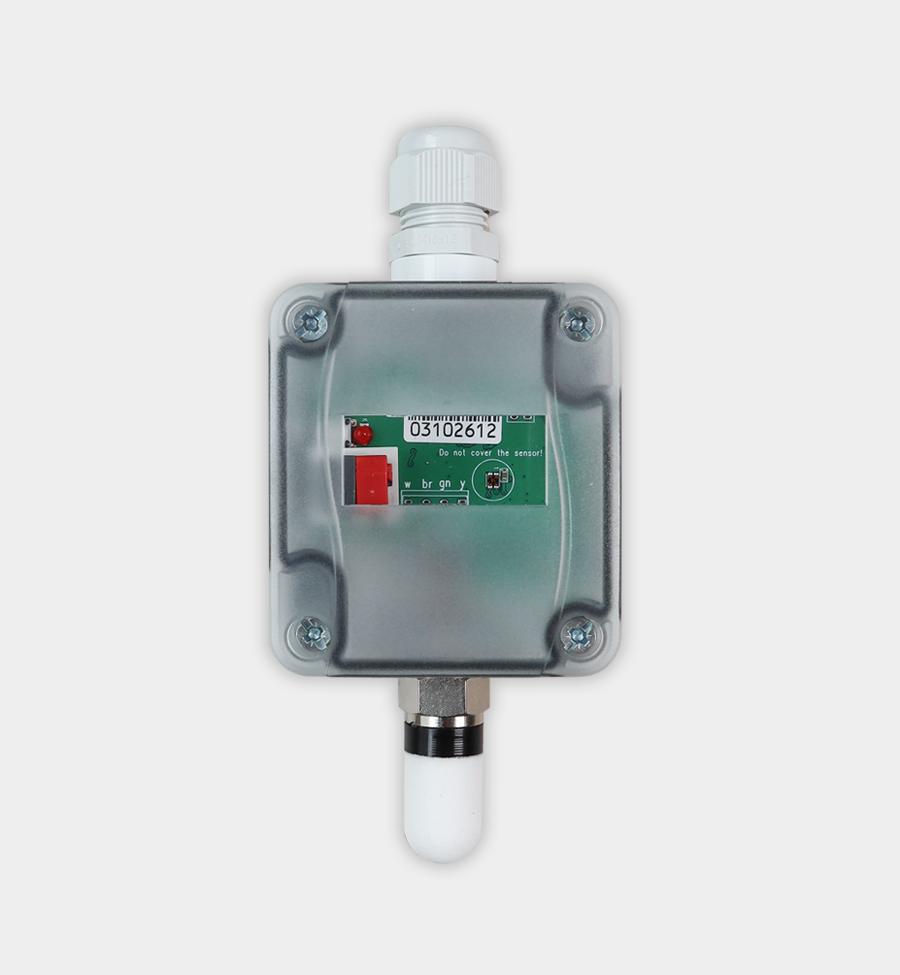

SK10L-THC-L-AFF; KNX sensor for temperature, humidity and brightness
€289,02 Incl. tax €386,64 Incl. tax. Out of stock, but available
Specifications
Information
Product Description – Arcus-EDS SK10L-THC-L-AFF
Item No. 30534153
The SK10L-THC-L-AFF from Arcus-EDS (item number 30534153) is an advanced KNX sensor for measuring and controlling temperature, humidity, and brightness indoors – with optional outdoor use. It includes integrated sensors and offers extensive functionality for HVAC and building automation systems.
Applications
- Climate control in buildings
- Dew point monitoring and condensation prevention
- Humidity and ventilation control
- Lighting control based on brightness
- Integration with KNX systems
Features
- Temperature measurement (internal sensor)
- Relative humidity measurement
- Brightness detection (3 to 220,000 lux)
- Calculated values: absolute humidity, dew point, enthalpy
- Control functions for heating and cooling
- Setpoint switching: Comfort, Standby, Economy, Protection
- Heat and frost alarm
- Min/max temperature memory
- Fan control via humidity thresholds or external inputs
- Dew point detection with alarm/control
- Controller output: 0–100% or programmable PWM
- 4 logic blocks for internal/external KNX signal processing
Technical Specifications
- Item Number: 30534153
- Temperature Range: -25°C to +80°C
- Resolution: 0.02°C
- Accuracy: ±0.4°C (5–60°C), otherwise ±0.8°C
- Humidity Range: 0–100% RH
- Humidity Resolution: 0.02% RH
- Humidity Accuracy: ±3% RH (20–80%, 25°C), otherwise ±5%
- Brightness: 3–220,000 lux, accuracy ±20%
- Power Supply: KNX bus voltage 21–32 VDC
- Power Consumption: approx. 240 mW (at 24 VDC)
- Ambient Temp.: -25°C to +80°C (operating and storage)
- Ambient Humidity: 0–100% RH, non-condensing
- Bus Coupler: integrated
- Auxiliary Supply: not required
- Dimensions: 72 x 64 x 45 mm
- Housing: Plastic with transparent cover
- Connection: KNX 2-pole clamps (red/black)
- ETS Version: ETS4 or higher (application HLK305)
Protection and Installation
Important note: The device features a robust housing with IP54/65 protection, making it suitable for both indoor and outdoor use, provided it is correctly installed and sealed as specified.
