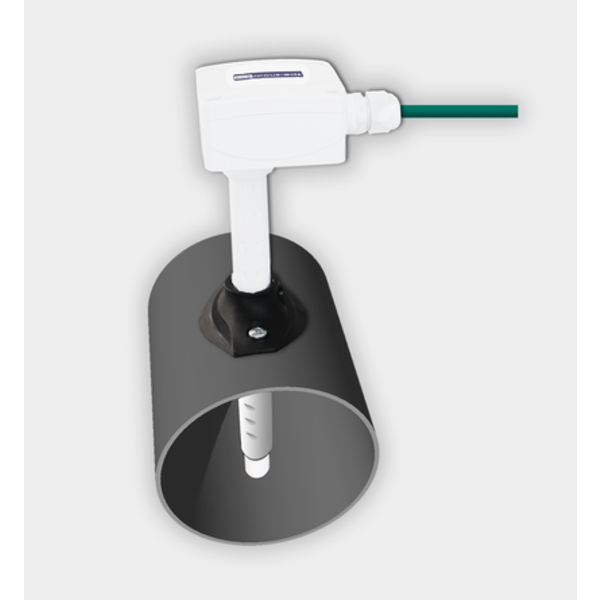

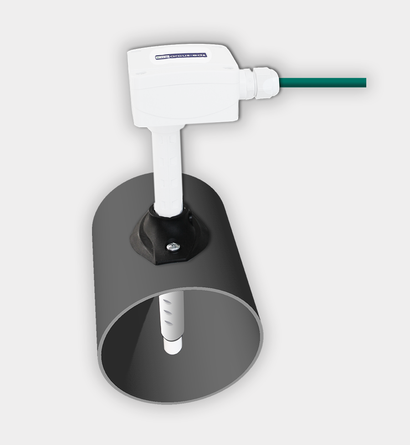

SK10-THC-KFF – KNX duct sensor for temperature/humidity

Item no: 30531057

The SK10-THC-KFF by Arcus-EDS is a KNX sensor for temperature and relative humidity, designed for installation in ventilation ducts with an inner diameter from Ø150 mm. It features integrated measurement and control functions and is suitable for HVAC applications in building automation. Its robust housing and IP54/65 rating make it resistant to demanding conditions.

Applications

• Measurement and control of temperature and humidity in ducts
• Indoor climate control in HVAC systems
• Dew point monitoring to prevent condensation
• Fan and humidity control via KNX

Main features

• Air temperature measurement (sensor on housing)
• Relative humidity (sensor on housing)
• Calculated values: absolute humidity, dew point, enthalpy
• Control functions for heating and cooling (combined if needed)
• Selectable setpoints: Comfort, Standby, Economy, Protection
• Setpoint adjustment via KNX objects
• Recording of minimum and maximum temperature
• Heat and frost alarms
• Threshold monitoring for temperature and humidity
• Fan control via humidity thresholds or external inputs
• Dew point detection with alarm and regulation
• Adjustable setpoints and limit functions
• Controller output: 0–100% or programmable PWM
• Valve flushing function
• Secondary temperature controller (auxiliary)
• 4 logic blocks for internal/external KNX signals

Technical specifications

• Measured values: Temperature, relative humidity
• Calculated values: Absolute humidity, dew point, enthalpy
• Temperature range: -25°C to +80°C
• Resolution temperature: 0.02°C
• Accuracy temperature: ±0.4°C (5–60°C), otherwise ±0.8°C
• Humidity range: 0–100% RH
• Humidity resolution: 0.02% RH
• Accuracy humidity: ±3% (20–80%, 20°C), otherwise ±5%
• Power supply: KNX bus voltage 21–32 VDC
• Power consumption: approx. 240 mW (at 24 VDC)
• Ambient temperature: -25°C to +80°C (operation/storage)
• Ambient humidity: 0–100% RH, non-condensing
• Bus coupler: integrated
• Auxiliary voltage: not required
• Connections: KNX 2-pole clamp (red/black)
• Housing: Plastic
• Dimensions: 72 × 64 × 40 mm
• Minimum duct diameter: Ø150 mm
• Protection rating: IP54/65
• Commissioning: via ETS version 4 or higher (application HLK305)

Protection and installation

Important note: The SK10-THC-KFF is intended for installation in air ducts with a minimum diameter of 150 mm. With its IP54/65 rating, it is suitable for demanding indoor use if properly installed and sealed according to the manual.
