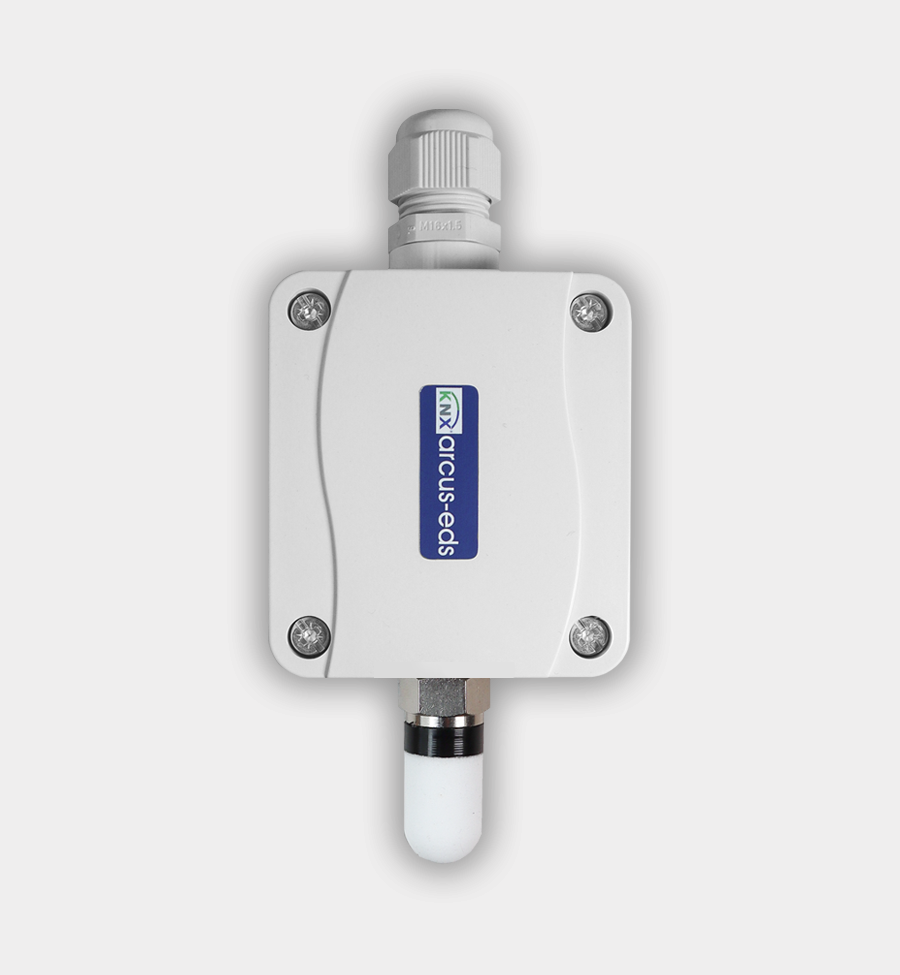

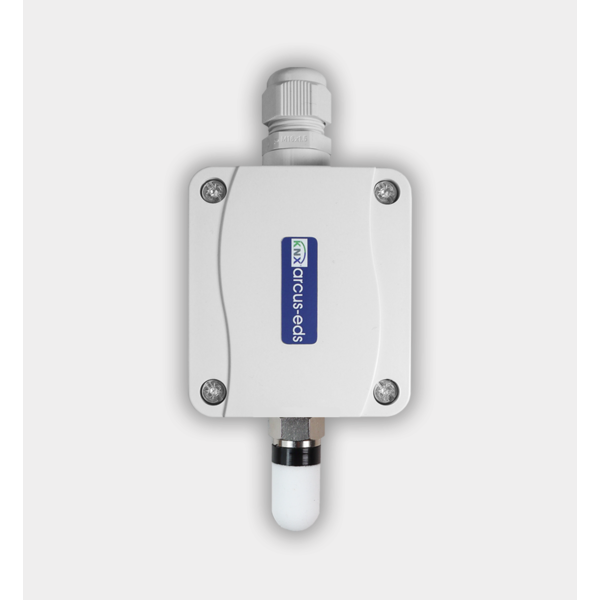

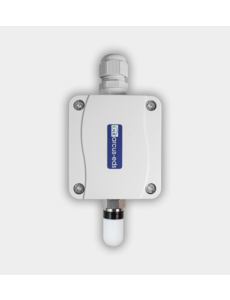

SK10-THC-AFF KNX sensor temperature/humidity with IP65 and logic
€171,47 Excl. tax
€229,39 Excl. tax
€207,48 Incl. tax €277,56 Incl. tax. Out of stock, but available
€207,48 Incl. tax €277,56 Incl. tax. Out of stock, but available
Surface-mounted KNX device for temperature and humidity with housing sensor, dew point, enthalpy calculation, IP65 protection and logic. Read more
Specifications
Brand:
Arcus
Article number:
30531053
EAN:
642125988582
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
SK10-THC-AFF (item no. 30531053)
Surface-mounted KNX sensor for temperature and humidity
The Arcus-EDS SK10-THC-AFF (item number 30531053) is a surface-mounted KNX sensor for accurate measurement of temperature and relative humidity in indoor or sheltered outdoor environments. The sensors are integrated into the housing and the device provides advanced calculations such as absolute humidity, dew point, and enthalpy. It is designed for HVAC control, ventilation management, and automated indoor climate systems via KNX.
- Temperature range: -25 °C to +80 °C
- Temperature resolution: 0.02 °C | Accuracy: ±0.4 °C (5–60 °C), otherwise ±0.8 °C
- Relative humidity: 0–100% r.H. | Resolution: 0.02% r.H. | Accuracy: ±3% (20–80%), otherwise ±5%
- Calculated values: absolute humidity, dew point, enthalpy
- Control output: 0–100% or adjustable PWM signal for thermal actuators
- Logic functions: 4 logic blocks with AND, OR, NOT, XOR, plus mathematical and conditional logic
- Additional features: setpoint control (Comfort, Standby, Economy, Protect), min/max value storage, frost/heat alarm, ventilation control via humidity thresholds and external inputs
- Protection class: IP65 (sensor side), IP54 (electronics)
- Power supply: via KNX bus, 21–32 VDC | Consumption: approx. 240 mW (at 24 VDC)
- ETS configuration: from ETS 4 | Application: HLK305
- Bus coupler: integrated | Bus connection: KNX 2-pole terminals (red/black)
- Mounting: Surface-mounted, sensor nose facing downward
- Housing material: plastic | Dimensions: 72 × 64 × 40 mm
- Ambient temperature: -25 °C to +80 °C (operation and storage)
- Ambient humidity: 0–100% r.H., non-condensing
Important mounting note: The sensor must be installed with the sensor nose pointing downward so that condensation can drip off and accurate readings are ensured.
