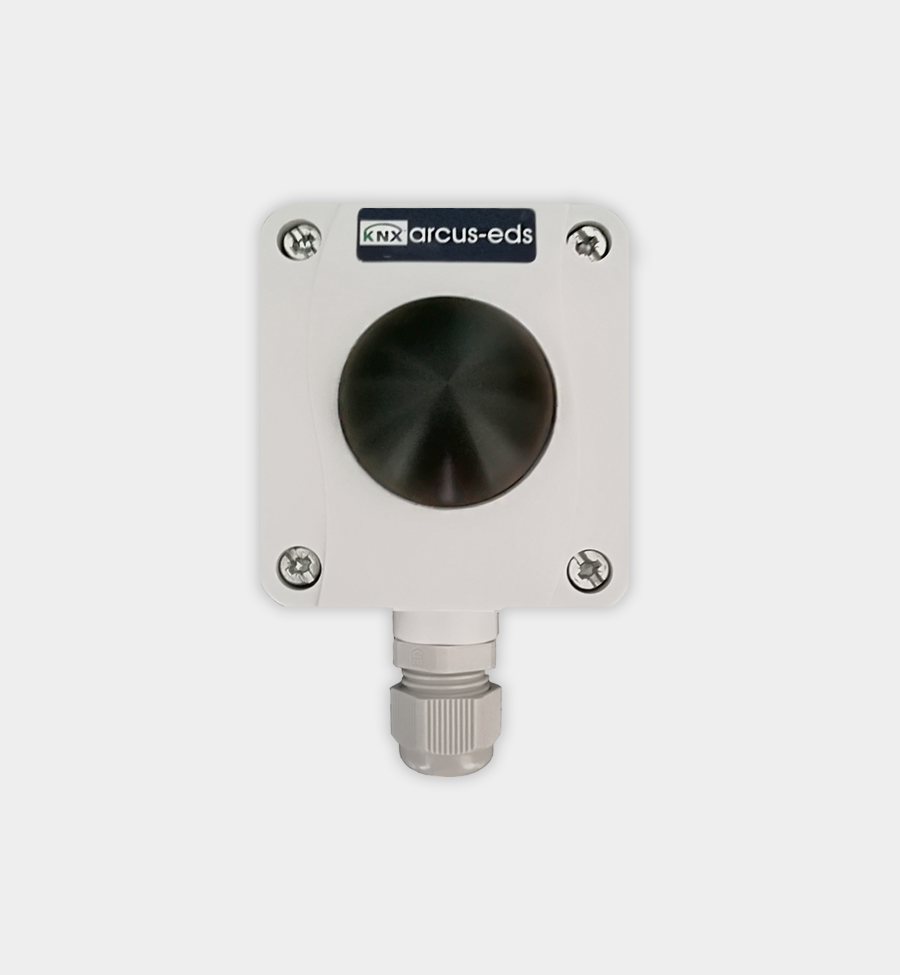

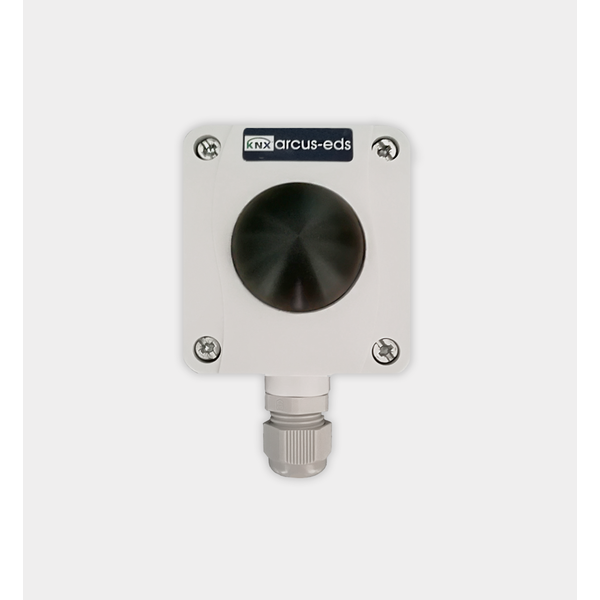

SK10-TC-RSTF – KNX surface sensor for radiant heat (IP54/65)
€178,96 Excl. tax
€239,41 Excl. tax
€216,54 Incl. tax €289,69 Incl. tax. Out of stock, but available
€216,54 Incl. tax €289,69 Incl. tax. Out of stock, but available
KNX surface-mounted radiant heat sensor for precise room temperature control. Includes alarms, setpoints and logic via ETS. Read more
Specifications
Brand:
Arcus
Article number:
30516061
EAN:
642125990950
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
SK10-TC-RSTF – KNX surface-mounted radiant heat sensor (IP54/65)
Part No. 30516061
The SK10-TC-RSTF from Arcus-EDS (part number 30516061) is a KNX temperature sensor with radiant heat detection for surface mounting. Designed for precise control of indoor climate using longwave infrared radiation. Ideal for KNX-based HVAC systems.
Main Features
- Measures radiant heat (dark radiation)
- Can be weighted with external mixed temperature
- Heating and cooling control functions (can be combined)
- Setpoints for Comfort, Standby, Economy and Protection
- Adjustable limits and setpoints via KNX objects
- Heat and frost alarms, storage of min/max temperatures
- Fan control via external inputs
- Controller output 0–100% or PWM for thermal actuators
- Valve rinse function, secondary auxiliary controller
- Four logic blocks for internal/external signal linking
Technical Specifications
| Measurement | Temperature (radiant heat) |
| Control | Integrated |
| Temperature Range | -5 °C to +60 °C |
| Resolution | 0.02 °C |
| Accuracy | Class B, ±(0.3 °C + 0.005 × T) |
| Operating Voltage | KNX Bus 21–32 V DC |
| Power Consumption | approx. 240 mW at 24 V DC |
| Operating Temp. | -5 °C to +60 °C |
| Storage Temp. | -25 °C to +80 °C |
| Humidity | 0–100% RH, non-condensing |
| Protection Class | IP54 / IP65 |
| Housing | Plastic, surface-mount (72 × 64 × 40 mm) |
| Configuration | via ETS version 4 or higher (App HLK305) |
| Connection | KNX 2-pole clamps (red/black) |
Note
This sensor does not measure air temperature, but radiant heat emitted by surfaces, providing a more realistic indication of thermal comfort. Configuration via ETS version 4 or higher is required.
