SK10L-TC-L KNX sensor lux measurement (IP54) with PT1000 input
€216,54 Incl. tax €289,69 Incl. tax. Out of stock, but available
Specifications
Information
SK10L-TC-L
Item no.: 30514100
KNX brightness sensor with lux detection and external PT1000 temperature input

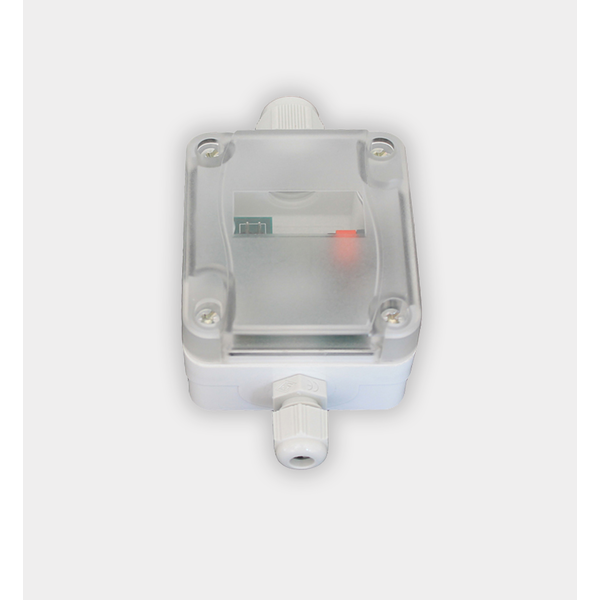

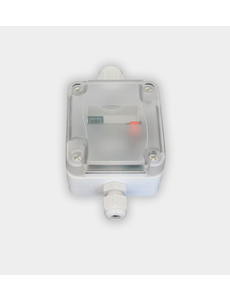

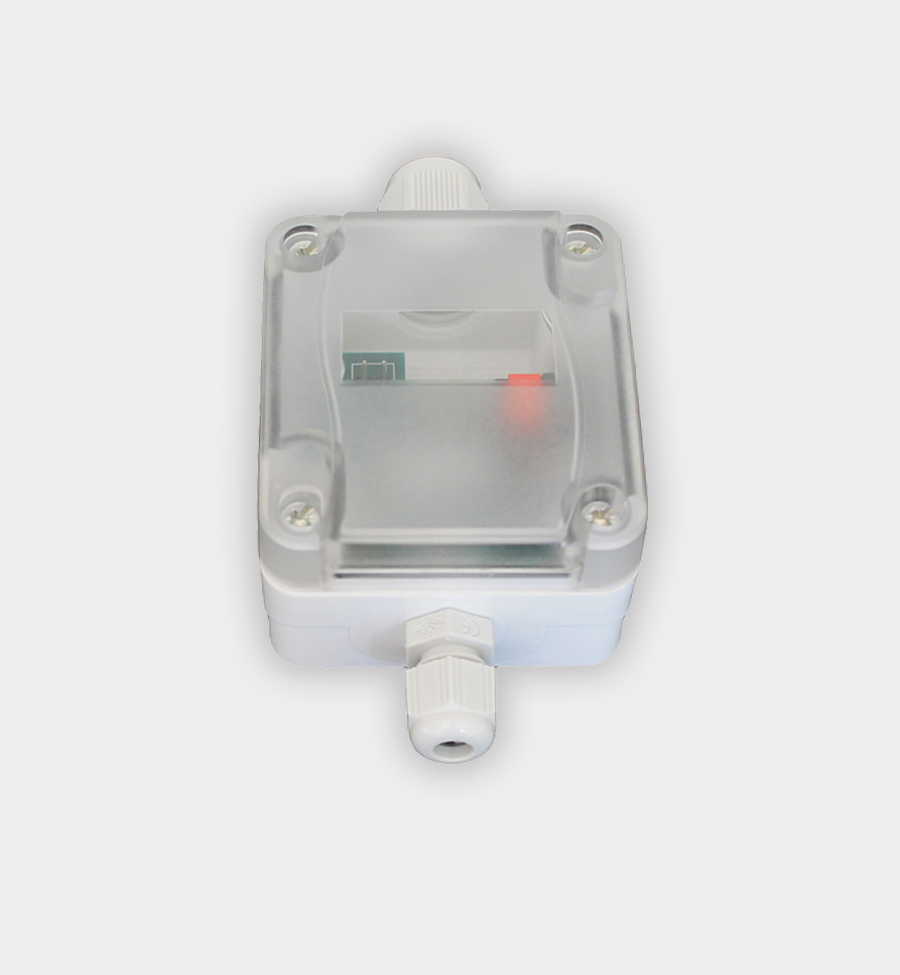

The Arcus-EDS SK10L-TC-L is a surface-mounted KNX sensor with integrated lux measurement and a connector for an external PT1000 temperature probe (not included). Designed for lighting and HVAC automation in buildings.
- Measured values: brightness via built-in sensor, temperature via external PT1000
- Brightness range: 3 to 220,000 lux | Accuracy: ±20%
- Temperature range: -50 to +400 °C (depends on sensor)
- Temperature resolution: 0.02 °C | Accuracy: defined by PT1000
- Control functions: heating/cooling, setpoints (Comfort, Standby, Economy, Protect), fan control, min/max memory, heat/frost alarm
- Outputs: 0–100% or configurable PWM output for thermal actuators
- Logic: 4 logic blocks with AND, OR, NOT, XOR, math and conditionals
- Bus coupling: integrated | Voltage: KNX bus 21–32 VDC | Power: approx. 240 mW
- Housing: plastic with transparent cover | Protection class: IP54/65
- Dimensions: 72 × 64 × 45 mm | Mounting: surface
- Environment: -25 °C to +80 °C | 0–100% r.H., non-condensing
- ETS configuration: from ETS 4 | Application: HLK305
Important note: The PT1000 probe is not included and must be connected externally. Avoid direct sunlight or drafts on the housing for reliable lux readings.
