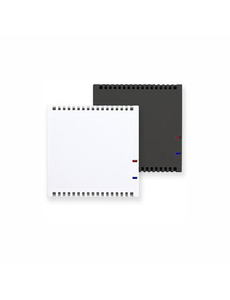

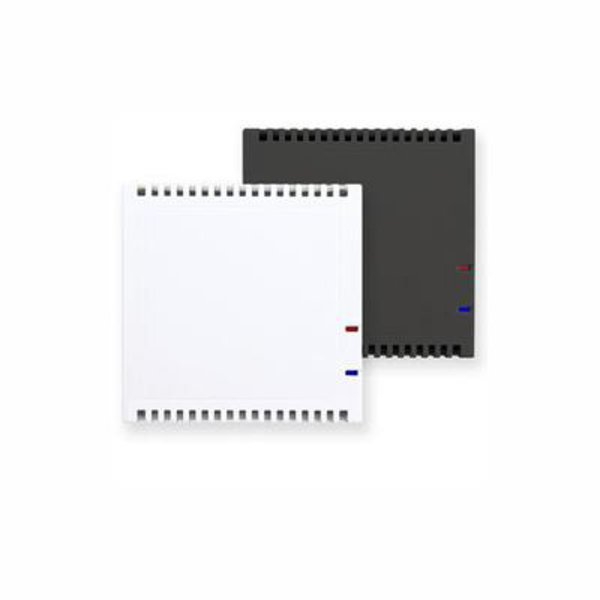

SK30-TC Temperature Sensor KNX indoor, sensor inside housing IP20
€153,11 Incl. tax €204,84 Incl. tax. Out of stock, but available
Specifications
Information
SK30-TC Temperature Sensor for KNX – Indoor Mounting
Article number white: 30511361
Article number anthracite: 30511362
EAN codes: 642125989169 (white), 642125989190 (anthracite)
The SK30-TC by Arcus-EDS is a compact and multifunctional KNX temperature sensor for indoor use. The temperature sensor is integrated into the housing (IP20) and accurately measures room temperature. It supports heating, cooling, and ventilation control, and features binary I/Os, alarms, and logic blocks for advanced automation.
Applications
- Room temperature monitoring and control
- Decentralized control of thermal actuators or KNX valves
- Decentralized ventilation control
- Evaluation of external switches or push buttons
Main Features
- Air temperature measurement via integrated sensor
- Optional weighted combination with external temperature
- Control functions for heating and cooling (can be combined)
- Setpoints for Comfort, Standby, Economy and Frost Protection via KNX HVAC objects
- Setpoint changes via KNX objects
- Logging of min/max temperatures
- Heat and frost alarms
- Temperature limits
- Fan control via external inputs
- Setpoint and max value adaptation
- Control output 0–100% or PWM signal for actuators
- Valve rinsing function and auxiliary temperature controller
- 2 binary inputs/outputs (floating)
- Status display via LEDs
- 4 logic blocks for linking internal/external signals
Technical Specifications
| Measurement: | Temperature |
| Control: | Integrated |
| Temperature range: | -25 .. +80 °C |
| Resolution: | 0.02 °C |
| Accuracy: | ± 0.4 °C (5–60 °C), else ± 0.8 °C |
| Binary I/O: | 2 (floating) |
| Operating voltage: | KNX bus voltage 21 .. 32 VDC |
| Power consumption: | approx. 240 mW (at 24 VDC) |
| Operating/storage temperature: | -25 .. +80 °C |
| Humidity: | 0 .. 100% r.H, non-condensing |
| Bus coupler: | Integrated |
| Commissioning via: | ETS version 4 or higher (HLK305) |
| Terminals: | KNX 2-pole clamps (red/black) |
| Protection class: | IP20 |
| Housing: | Plastic |
| Dimensions: | 55 mm standard frame size |
Note
Important: The SK30-TC is designed for fixed installation in dry indoor areas. Proper programming via ETS 4 or higher is required for full functionality.
Manufacturer Information
- Brand: Arcus-EDS
- Product line: KNX indoor climate sensors
