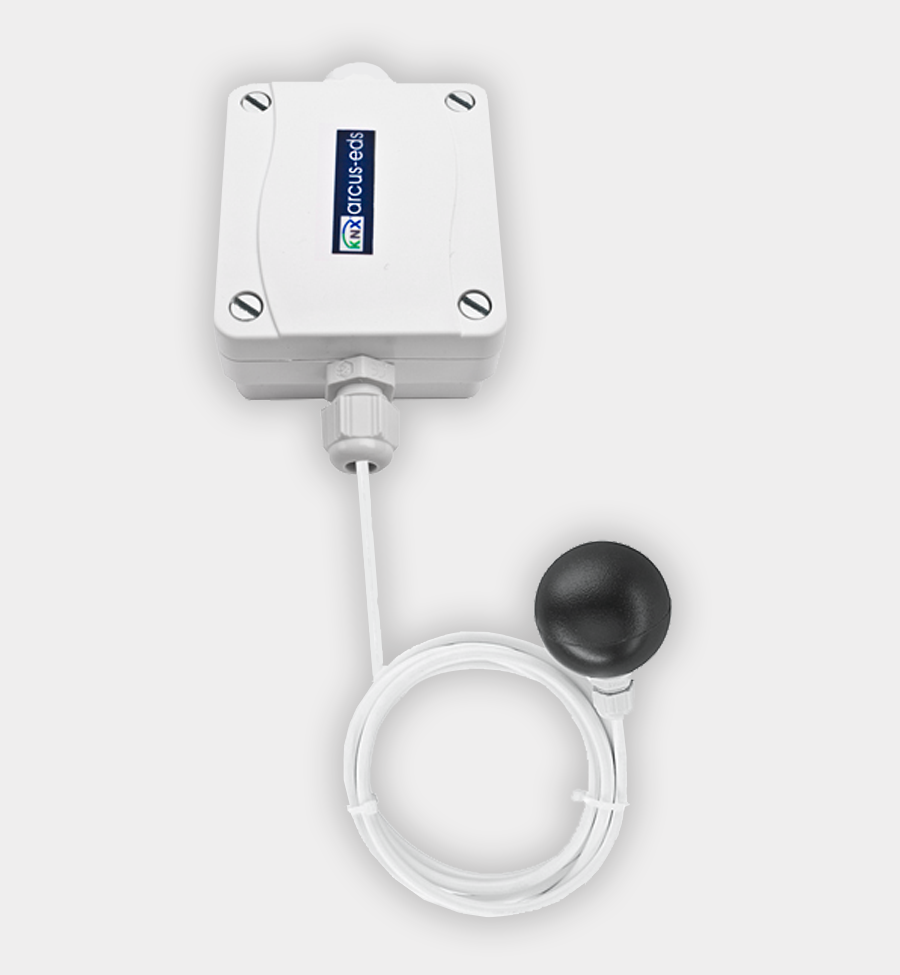

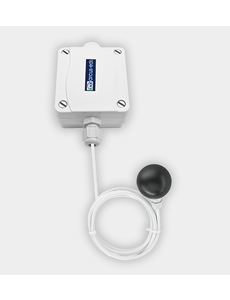

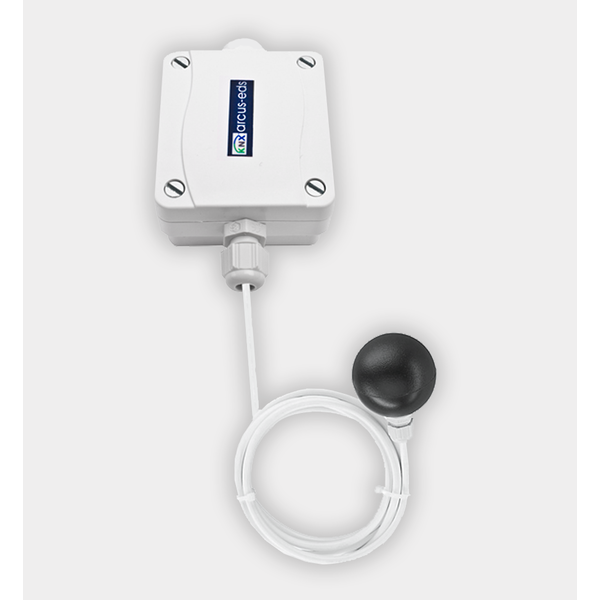

SK10-TC-RPTF2 – KNX infrared sensor for radiant heat
€163,98 Excl. tax
€219,37 Excl. tax
€198,42 Incl. tax €265,44 Incl. tax. Out of stock, but available
€198,42 Incl. tax €265,44 Incl. tax. Out of stock, but available
KNX temperature sensor with radiant heat probe for precise indoor control. Supports heating, cooling, alarms, and logic functions via ETS. Read more
Specifications
Brand:
Arcus
Article number:
30511051
EAN:
642125988551
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.
Information
SK10-TC-RPTF2 – KNX Infrared Sensor for Radiant Heat (Part No. 30511051)
The SK10-TC-RPTF2 is a KNX temperature sensor with radiant heat detection, designed for accurate indoor climate control using infrared thermal radiation. It supports heating, cooling, alarms, and logic functions via ETS.
Main Features
- Measures radiant heat via infrared sensor (non-contact)
- Weighted with external mixed temperature if needed
- Comfort, Standby, Economy, Protection modes via KNX objects
- Stores minimum/maximum temperatures, heat and frost alarm
- Adjustable setpoints and temperature limits
- 0–100% output or PWM control for thermal actuators
- Fan control via external inputs, valve rinsing function
- Secondary (auxiliary) controller available
- Four logic blocks for internal and external signal linking
Technical Specifications
| Measurement | Temperature (infrared-based) |
| Control | Integrated |
| Temperature Range | -5 °C to +60 °C |
| Resolution | 0.02 °C |
| Accuracy | Class B, ±(0.3 °C + 0.005 × T) |
| Operating Voltage | KNX Bus 21–32 V DC |
| Power Consumption | approx. 240 mW at 24 V DC |
| Ambient Temperature | -25 °C to +80 °C |
| Relative Humidity | 0–100% RH, non-condensing |
| Protection Class | IP54 / IP65 |
| Housing | Plastic (72 × 64 × 40 mm) |
| Configuration | via ETS version 4 or higher (App HLK305) |
| Connection | KNX 2-pole terminal (red/black) |
Note
This sensor does not measure air temperature but radiant heat from surfaces, providing a more realistic indicator of thermal comfort. Configuration via ETS version 4 or higher.
