SK10-TC-ETF7 – Temperature sensor – fast response time, screw-in
€285,39 Incl. tax €381,80 Incl. tax. Out of stock, but available
Specifications
Information

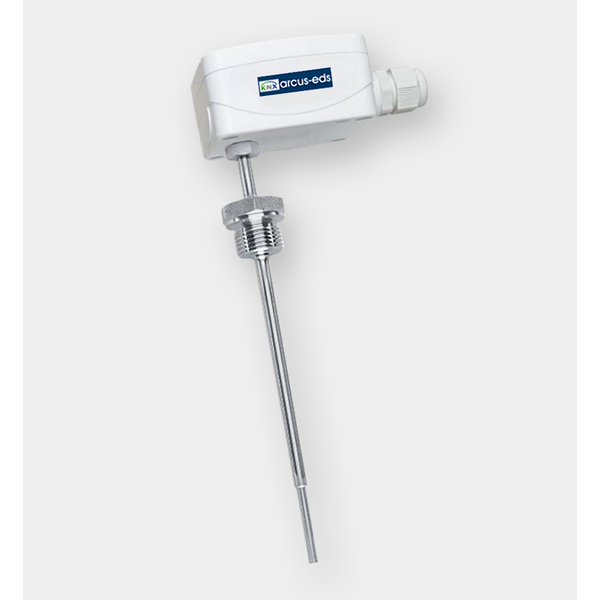

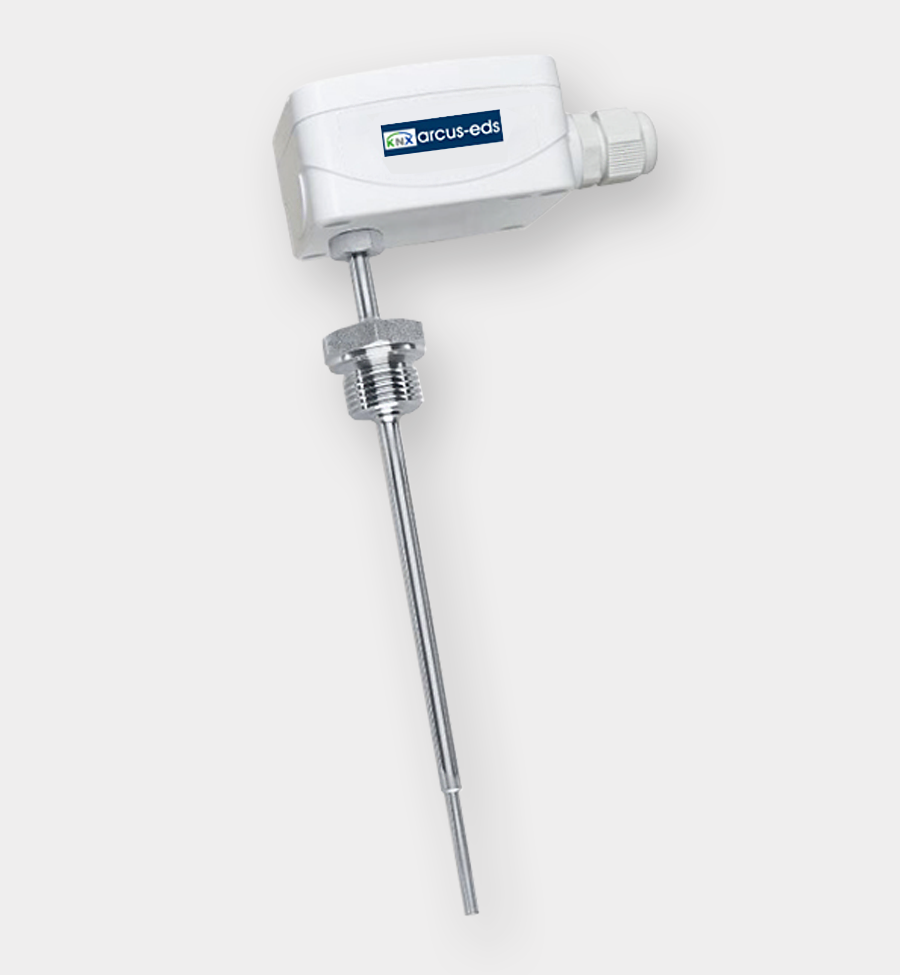

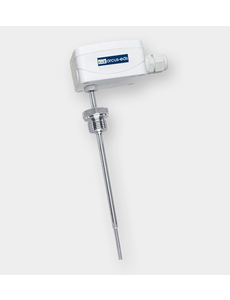

Temperature Sensor SK10-TC-ETF7 – KNX Screw-in Sensor with Fast Response
The SK10-TC-ETF7 temperature sensor from Arcus-EDS is a high-quality KNX sensor designed for measuring and controlling indoor air temperature. Thanks to its very fast response time and robust screw-in or immersion sleeve design, the sensor is ideal for HVAC applications. It integrates seamlessly into both heating and cooling control systems, including alert functions for heat and frost.
Important note:
The sensor measures air temperature using an internal probe located in the housing. When connected to an external sensor (optional), a weighted temperature value can be calculated. This allows for precise control based on multiple measurement points.
Applications:
- Indoor air temperature control via KNX
- HVAC systems for heating and cooling
- Building automation with alarm functions
- Fan control based on temperature
Functions:
- Air temperature measurement via internal sensor
- Weighted value calculation with optional external sensor
- Control functions for heating and cooling (combinable)
- Setpoint temperatures for Comfort, Standby, Economy and Protection via KNX HVAC objects
- Setpoint adjustment via objects
- Storage of minimum and maximum temperature values
- Heat and frost alarm
- Configurable temperature limits
- Fan control via external inputs
- Setpoint and maximum temperature adaptation
- Controller output 0…100% or PWM (programmable) for thermal actuators
- Valve rinse function
- Second temperature controller as auxiliary control
- Four logic blocks for linking internal and external signals
Technical Data:
| Measurement | Temperature |
|---|---|
| Control | Integrated |
| Temperature Range | -30 .. +150°C |
| Resolution | 0.02°C |
| Accuracy | Class B, ±(0.3°C + 0.005*T) |
| Operating Voltage | KNX Bus Voltage 21 .. 32VDC |
| Power Consumption | approx. 240mW (at 24VDC) |
| Ambient Temperature (Operation) | -25 .. +80°C |
| Ambient Temperature (Storage) | -25 .. +80°C |
| Ambient Humidity | 0 .. 100% RH, non-condensing |
| Bus Coupler | Integrated |
| Auxiliary Supply | Not required |
| Commissioning with ETS | ETS Version 4 or higher (HLK305) |
| Connection Terminals | KNX 2-pole clamps (red/black) |
| Protection Class | IP54/IP65 |
| Housing (KNX module) | Plastic |
| Dimensions (housing) | 72 x 64 x 40 mm |
Available lengths:
- 100 mm (Article No. 30511034)
- 150 mm (Article No. 30511035)
- 200 mm (Article No. 30511036)
Brand: Arcus-EDS
