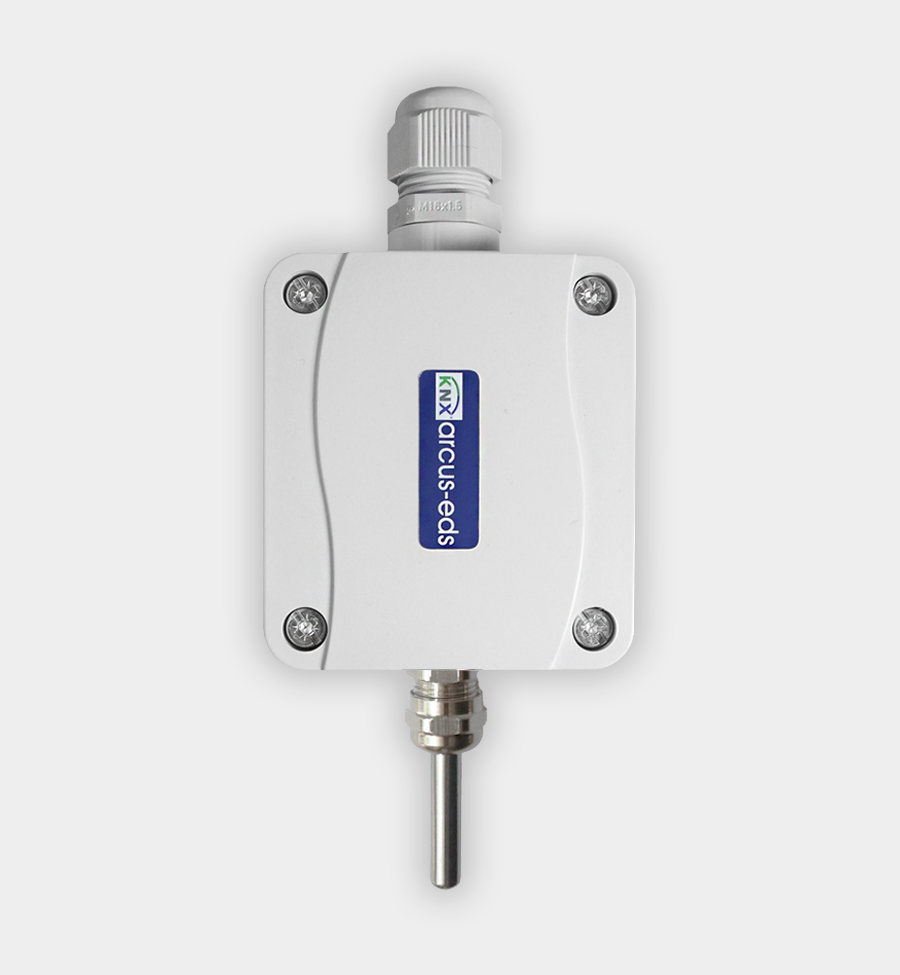

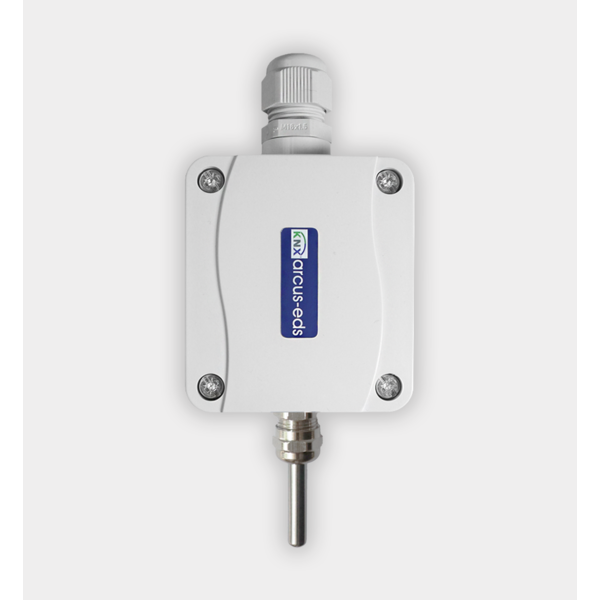

SK10-TC-ALTF2 KNX surface sensor pipe, IP54, sensor on housing
€180,30 Incl. tax €241,20 Incl. tax. Out of stock, but available
Specifications
Information
KNX Temperature Sensor for Indoor Use
SK10-TC-ATF2 (Art. No. 30511007)
The SK10-TC-ATF2 from Arcus-EDS (article number 30511007) is a compact and versatile KNX temperature sensor designed for indoor environments. The temperature probe is mounted directly on the housing, enabling precise ambient temperature measurements for HVAC control. With built-in logic blocks, alarms, and regulation functions, the sensor is ideal for smart building automation.
Applications
- Measuring and controlling room temperature in indoor spaces
- HVAC systems with automatic switching between heating and cooling
- Building automation in offices, residential, or technical spaces
- Fan control and temperature-based alarms
Functions
- Ambient temperature measurement via housing-mounted sensor
- Combined control for heating and cooling
- Selectable setpoints: Comfort, Standby, Economy, Protection
- Setpoint adjustment via KNX objects
- Storage of minimum and maximum temperatures
- Configurable heat and frost alarms
- Settable temperature limits
- Fan control via external inputs
- Controller output: 0…100% or PWM for thermal actuators
- Valve flush function (anti-calcification)
- Second controller available as auxiliary
- Four logic blocks for linking internal and external signals
Technical Specifications
| Article Number | 30511007 |
| Measured Quantity | Temperature |
| Sensor Location | On housing |
| Application Area | Indoor use |
| Temperature Range | -50 to +90 °C |
| Resolution | 0.02 °C |
| Accuracy | Class B, ±(0.3 °C + 0.005*T) |
| Control | Integrated |
| Power Supply | KNX Bus 21 to 32 VDC |
| Power Consumption | Approx. 240 mW (at 24 VDC) |
| Ambient Temperature | -25 to +80 °C (operation and storage) |
| Humidity | 0 to 100% RH, non-condensing |
| Bus Coupler | Integrated |
| Auxiliary Power | Not required |
| Commissioning | From ETS Version 4 (HLK305) |
| Terminals | KNX 2-pole clamps (red/black) |
| Protection Class | IP54 / IP65 |
| Housing Material | Plastic |
| Dimensions | 72 x 64 x 40 mm |
Important Note
Note: This sensor is designed for indoor applications. It measures air temperature through its housing. For accurate readings, avoid mounting it near direct heat sources or drafts.
