KNX water meter - KNX-IMPZ-WZ-M

219,12 Excl. tax €293,14 Excl. tax
€265,14 Incl. tax 354,70 Incl. tax.
Out of stock, but available
Unit price: €219,12 / Piece
KNX water meter with certified NZR Modularis WZK-M/WZW-M for cold (30 °C) or hot (90 °C) water. Includes pulse output, KNX interface and logger. Installation length 80–130 mm. Read more

Specifications

Brand:
Arcus
Article number:
60201-75124015
EAN:
642125988100
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.

Information

Datasheet

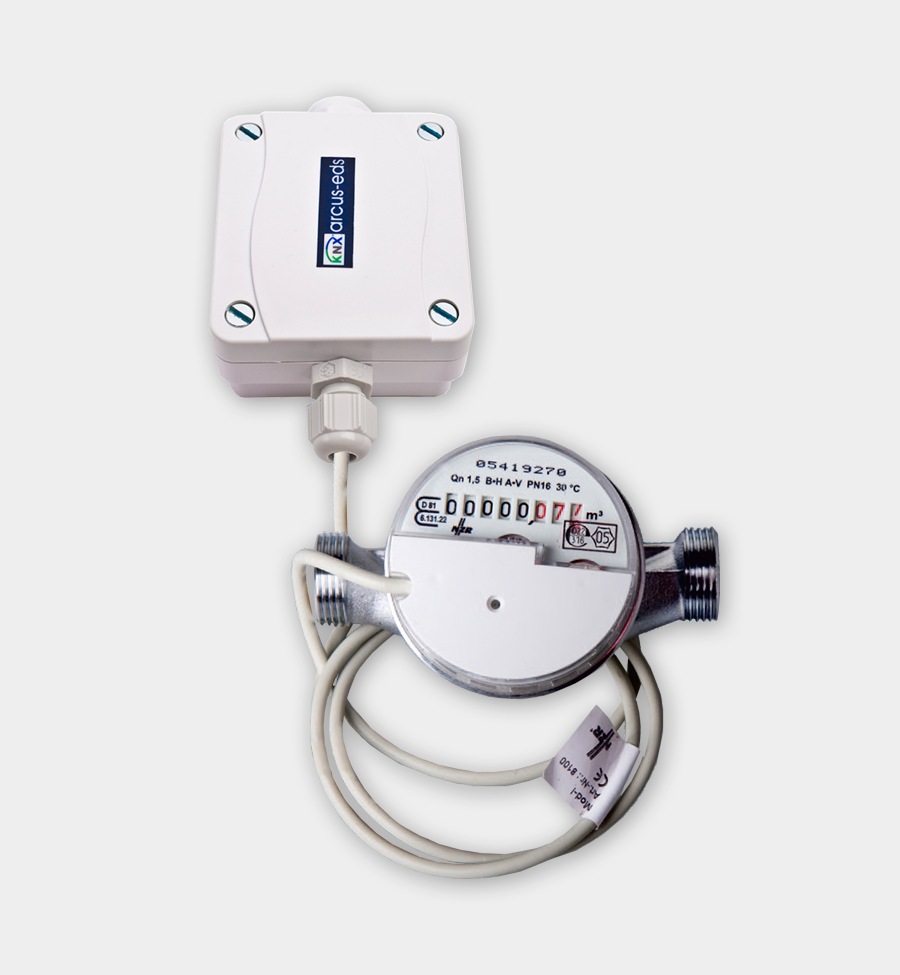

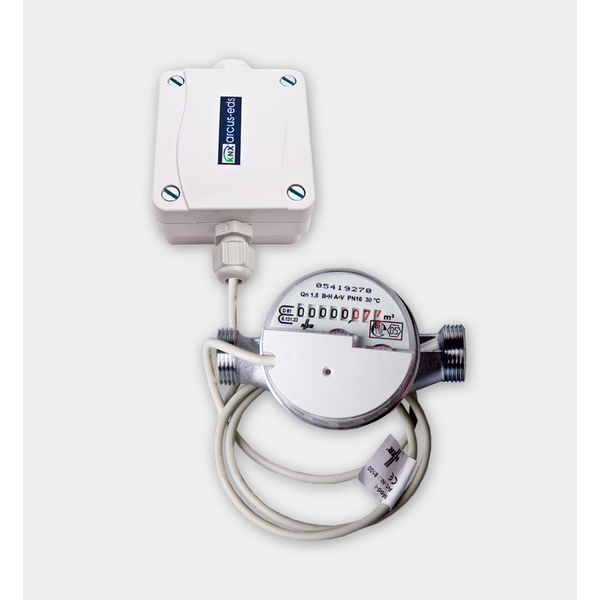

Arcus KNX-IMPZ-WZ-M – KNX Water Meter with NZR Modularis WZK-M / WZW-M

The Arcus KNX-IMPZ-WZ-M is a smart KNX water meter designed for accurate measurement and monitoring of water consumption in residential and commercial environments. It is based on a certified NZR Modularis water meter (type WZK-M for cold water or WZW-M for hot water), featuring an integrated pulse module and a KNX-compatible data logger with battery backup.

Models are available for cold water up to 30 °C or hot water up to 90 °C, with installation lengths of 80 mm, 110 mm, or 130 mm. The device comes in a durable plastic housing for wall mounting and complies with protection class IP54/IP65.

Available Models:

  • WZK-M cold water (30 °C) – 80 mm | Article no: 60201-75124015
  • WZK-M cold water (30 °C) – 110 mm | Article no: 60201-75124025
  • WZK-M cold water (30 °C) – 130 mm | Article no: 60201-75124115
  • WZW-M hot water (90 °C) – 80 mm | Article no: 60201-75124515
  • WZW-M hot water (90 °C) – 110 mm | Article no: 60201-75124525
  • WZW-M hot water (90 °C) – 130 mm | Article no: 60201-75124615

Example Variant: WZK-M (30 °C – 130 mm)

This model is suitable for cold water (max. 30 °C) and has a 130 mm installation length. With a nominal flow rate of 2.5 m³/h and a maximum flow of 5 m³/h, it is ideal for larger connections (DN 20). The integrated pulse module and KNX interface enable detailed consumption tracking and integration into building automation systems via ETS.

Applications:

  • Individual water metering per apartment or unit
  • KNX-based remote consumption monitoring
  • Real-time flow and usage analysis
  • Ideal for smart homes, residential complexes and utility buildings

Key Features:

  • Certified NZR Modularis water meter (30 °C or 90 °C)
  • Built-in pulse output module
  • KNX bus interface with battery-buffered data memory
  • Readout of total volume, flow, timestamps, and consumption values
  • Compact plastic housing (72 × 64 × 40 mm), wall mounting
  • Protection class IP54/IP65 (depending on placement)

Technical Specifications (summary):

  • Temperature rating: 30 °C (cold water) or 90 °C (hot water)
  • Installation lengths: 80 / 110 / 130 mm
  • Flow rate: 1.5 or 2.5 m³/h nominal, up to 5 m³/h max
  • Connection diameter: DN 15 or DN 20
  • Signal output: Pulse + KNX data interface

KNX-Readable Data Points:

  • Serial number
  • Total consumption (m³)
  • Current flow rate (m³/time unit)
  • Current date and time
  • Last and next logging timestamps
  • Consumption values and resets

Installation Note:

For correct installation and configuration, please refer to the official technical documentation from NZR. Visit www.nzr.de or consult the KNX document 5300_dx_WZ-M.pdf.
