KNX Soil Moisture and Temperature Sensor

325,95 Excl. tax €417,88 Excl. tax
€394,40 Incl. tax 505,63 Incl. tax.
Out of stock, but available Manual
Unit price: €325,95 / Piece
KNX sensor for soil moisture and temperature with maintenance-free Watermark® probe. Ideal for demand-based irrigation control. Read more

Specifications

Brand:
Arcus
Article number:
30805001
EAN:
642125987769
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.

Information

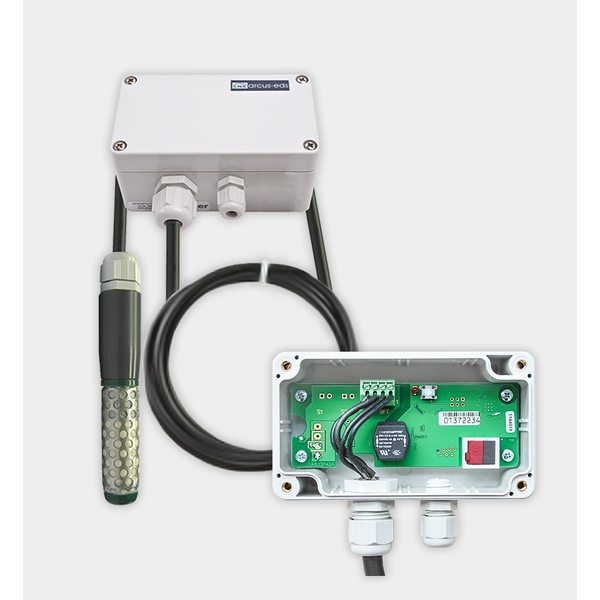

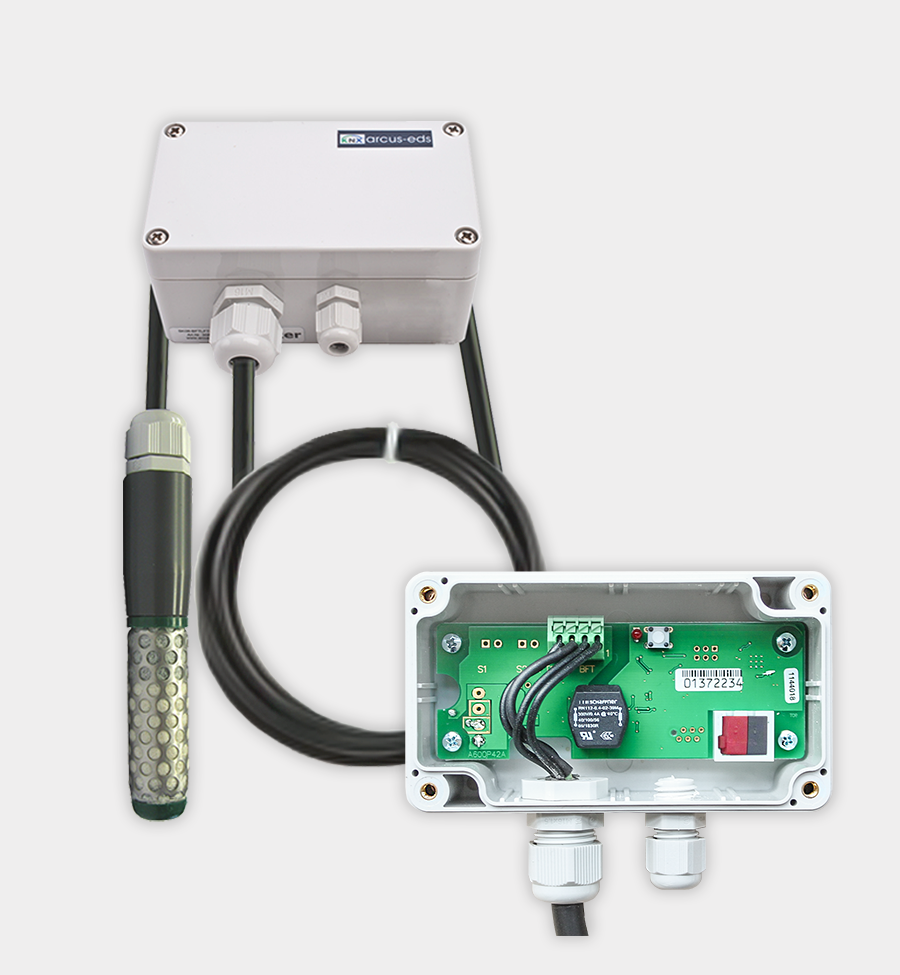

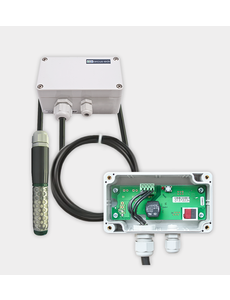

Arcus SK08-BFT-WMT KNX Soil Moisture and Temperature Sensor

The SK08-BFT-WMT by Arcus is a high-performance KNX sensor designed to measure soil moisture and soil temperature. It features a built-in, maintenance-free Watermark® sensor that provides accurate and reliable data—ideal for use in agriculture, horticulture, and automated irrigation systems.

Main Features

  • Soil moisture range: 1 to 2000 hPa (1 – 200,000 Pa)
  • Resolution soil moisture: 0.01 hPa / 1 Pa
  • Accuracy soil moisture: ±1 hPa
  • Soil temperature range: -25°C to +45°C
  • Soil temperature accuracy: ±1°C
  • Maintenance-free Watermark® sensor (PT1000)
  • 5-meter connection cable (other lengths available)
  • KNX bus voltage: 21–32 VDC
  • Power consumption: approx. 240 mW (at 24 VDC)
  • Commissioning via ETS: Arc_S8.vd5 (Product: S8-BFT)

Applications

Ideal for smart irrigation systems where soil moisture data is used to control watering cycles. The rugged IP54/IP65-rated housing makes it suitable for both indoor and outdoor use.

Technical Specifications

  • Operating temperature (housing): -20 .. +55°C
  • Storage temperature (housing): -20 .. +85°C
  • Operating temperature Watermark®: -25 .. +45°C
  • Storage temperature Watermark®: -30 .. +55°C
  • Ambient humidity: 0 .. 95% RH (non-condensing)
  • Housing dimensions: 115 x 65 x 55 mm (L x W x H)
  • Housing material: ABS plastic, grey
  • Protection class: IP54/IP65
  • Installation: Surface mounting with 2 screws
  • Connections: KNX 2-pole terminal (red/black)

Note

Important: The sensor is supplied with a maintenance-free Watermark® soil moisture probe and a 5-meter connection cable. Additional cable lengths are available under Section Z – Components / Replacement Parts.
