KNX temperature, humidity, and VOC duct sensor
€261,83 Incl. tax €350,28 Incl. tax. Out of stock, but available
Specifications
Information
Product Description

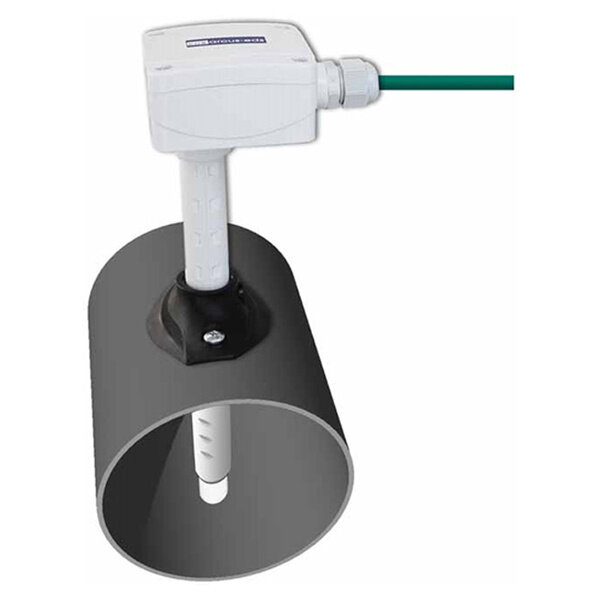

The SK10-THC-VOC-KF by Arcus-EDS is an advanced KNX sensor for monitoring and controlling temperature, relative humidity, and VOC concentration (volatile organic compounds) in ventilation systems. Designed for installation in air ducts with a minimum internal diameter of 150 mm, it features a durable plastic mounting flange.
With integrated calculation and control functions, this device is ideal for HVAC applications where air quality and energy efficiency are critical. The sensor enables automated climate regulation via KNX bus communication and includes alarm functions for threshold exceedance.
Main Features
- Measurement of temperature, relative humidity, and VOC
- Control functions for heating, cooling, and ventilation
- Calculation of absolute humidity, dew point, and enthalpy
- VOC detection for identifying odors and harmful emissions
- Duct mounting with plastic flange
- Protection class IP54/65 – dust and splash resistant
- Robust plastic housing
Measurement Ranges
- Temperature: 0 to +50 °C
- Relative humidity: 0 to 95% r.H.
- VOC: 450 to 2000 ppm (volatile organic compounds)
Technical Specifications
| Article number | 30533001 |
| EAN code | 0642125990127 |
| Bus voltage | 21 – 32 VDC via KNX |
| Power consumption | approx. 240 mW at 24 VDC |
| Operating temperature | -25 to +80 °C |
| Ambient humidity (non-condensing) | 10 to 95% r.H. |
| Bus coupler | Integrated |
| Commissioning | Via ETS version 4 or higher (application HLK305) |
| Connection terminals | KNX 2-pin (red/black) |
| Housing dimensions | 72 x 64 x 40 mm |
| Housing material | Plastic |
Note
This sensor is intended for indoor installation in air ducts with a minimum diameter of 150 mm. Not suitable for outdoor use or direct water exposure. The VOC sensor is designed to improve indoor air quality but is not a substitute for certified air quality monitoring.
