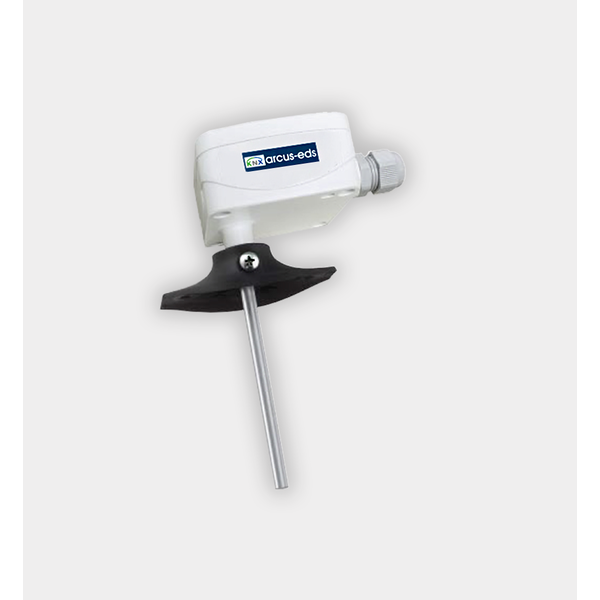

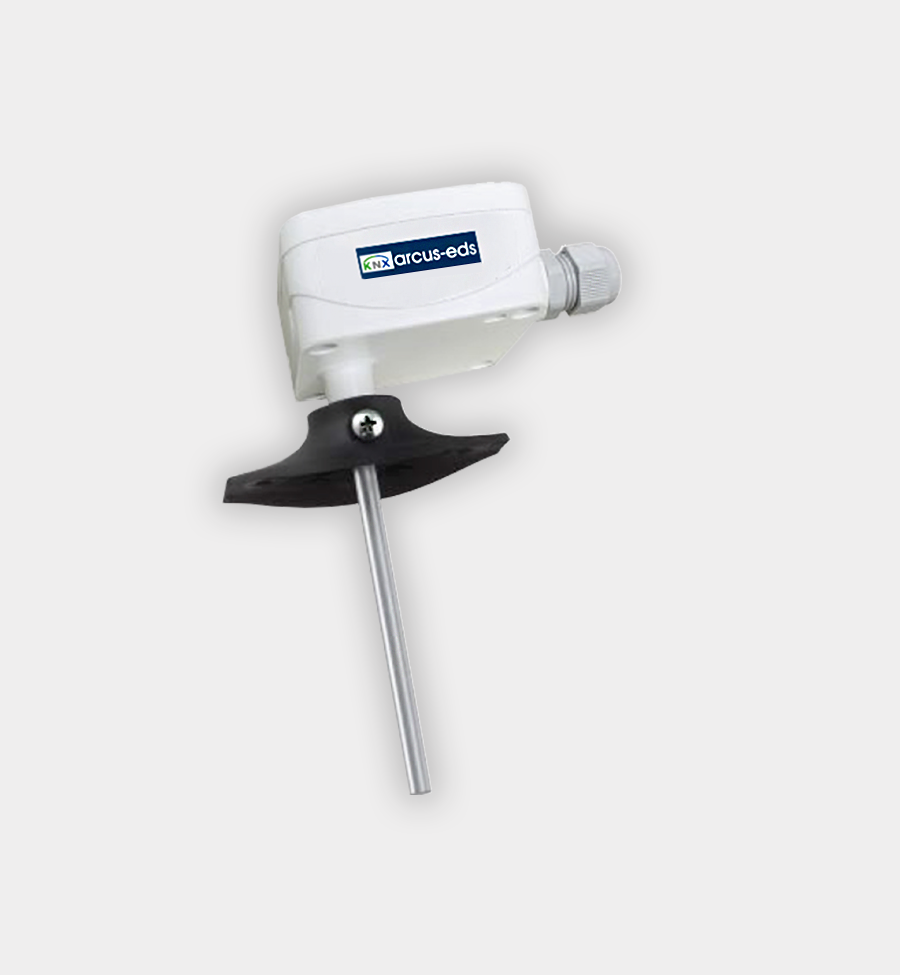

SK10-TC-KTF1 – Duct temperature sensor, incl. mounting flange
€189,35 Incl. tax €253,33 Incl. tax. Out of stock, but available
Specifications
Information
SK10-TC-KTF1 – KNX Duct Temperature Sensor with Flange and Fast Response
The SK10-TC-KTF1 by Arcus-EDS is a precise and reliable KNX sensor designed for measuring and controlling air temperature inside ventilation ducts. Thanks to its fast response time, integrated control functionality, and supplied mounting flange, it is ideal for HVAC applications in building automation systems. The device is fully configurable via ETS software.
Important Note:
The sensor measures the air temperature using an internal probe in the housing. If an external sensor is connected, a weighted temperature value can be calculated, enabling precise regulation based on multiple measurement points.
Applications:
- Temperature regulation in air ducts
- HVAC systems for heating and cooling
- Building automation via KNX
- Fan control based on air temperature
- Temperature monitoring with threshold values and alarm functions
Functions:
- Air temperature measurement (sensor inside housing)
- Optional weighted value using external sensor
- Control functions for heating and cooling (can be combined)
- Setpoint options for Comfort, Standby, Economy, and Protection via KNX HVAC objects
- Setpoint adjustment via KNX objects
- Storage of minimum and maximum temperature values
- Heat and frost alarm
- Adjustable temperature limits
- Fan control via external inputs
- Adaptation of setpoints and limit values
- Controller output 0…100% or programmable PWM for thermal actuators
- Valve rinse function
- Second controller available as auxiliary controller
- Four logic blocks for linking internal and external signals
Technical Data:
| Measured Value | Temperature |
|---|---|
| Control | Integrated |
| Temperature Range | -30 .. +150 °C |
| Resolution | 0.02 °C |
| Accuracy | Class B, ±(0.3 °C + 0.005*T) |
| Operating Voltage | KNX Bus Voltage 21 .. 32 VDC |
| Power Consumption | approx. 240 mW (at 24 VDC) |
| Ambient Temperature (Operation) | -25 .. +80 °C |
| Ambient Temperature (Storage) | -25 .. +80 °C |
| Ambient Humidity | 0 .. 100% RH, non-condensing |
| Bus Coupler | Integrated |
| Auxiliary Supply | Not required |
| Commissioning via ETS | Version 4 or higher (HLK305) |
| Connections | KNX 2-pole terminal (red / black) |
| Protection Class | IP54 / IP65 |
| Housing (KNX module) | Plastic |
| Housing Dimensions | 72 x 64 x 40 mm |
Available Probe Lengths:
- 50 mm (Art. No. 30511037)
- 100 mm (Art. No. 30511038)
- 150 mm (Art. No. 30511039)
- 200 mm (Art. No. 30511040)
- 250 mm (Art. No. 30511041)
- 300 mm (Art. No. 30511042)
- 400 mm (Art. No. 30511043)
Brand: Arcus-EDS
