12-fold switch actuator AMI, current measurement 16/20AC-load 200µF
€416,06 Incl. tax €640,09 Incl. tax. Out of stock, but available
Specifications
Information

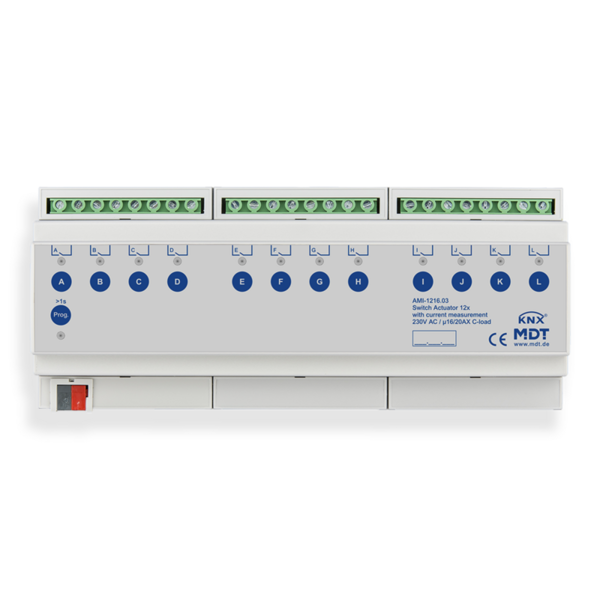

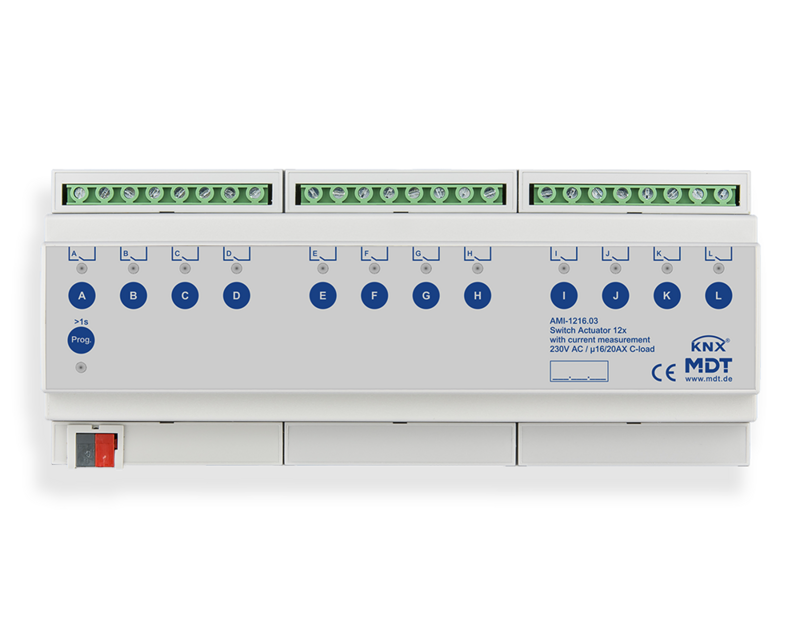

Switch Actuator AMI current measurement | series .03 - 12-fold
The Switch Actuator AMI current measurement | series .03 provides reliable current measurement for industrial applications with up to 12 independently switchable channels. This actuator measures currents up to 20 amps per channel and offers integrated energy measurement (Wh/kWh) and status monitoring functions. Thanks to the integrated True RMS current measurement, loads such as C-loads up to 200 µF can be handled effortlessly. The fast reaction time of less than 1 second in Master/Slave operation makes this device ideal for demanding applications.
Technical Specifications
- Number of outputs: 12
- Current measurement range: 10 mA ... 20 A
- Measurement inaccuracy: 2%
- Sampling rate: 2000 measurements / 500 ms
- Output switching ratings:
- Ohmic load: 16/20 A
- Capacitive load: 200 µF
- Inrush current: Max. 600 A / 150 µs
- Maximum lamp loads: 3680 W (incandescent lamps), 2000 W (halogen lamps, electronic transformers)
- KNX interface: TP-256 with long frame support
- Operating temperature range: 0 °C ... +45 °C
- Dimensions: 12 SU (MDRC)
- Enclosure: IP20
The actuator is designed for fixed mounting on a 35 mm DIN rail in dry indoor environments. The extended status and time functions allow specific logic and time-based switching to be programmed via the ETS software. The device also offers features such as priority and forced operation, as well as the ability to adjust behavior during bus voltage failure.
Important note: Mixed operation of nominal and safety extra low voltage (SELV) within the actuator is not permitted!
