4-fold switch actuator AMI with current measurement 16/20AC load 200µF
€248,53 Incl. tax €382,36 Incl. tax. Out of stock, but available
Specifications
Information

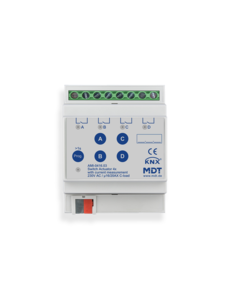

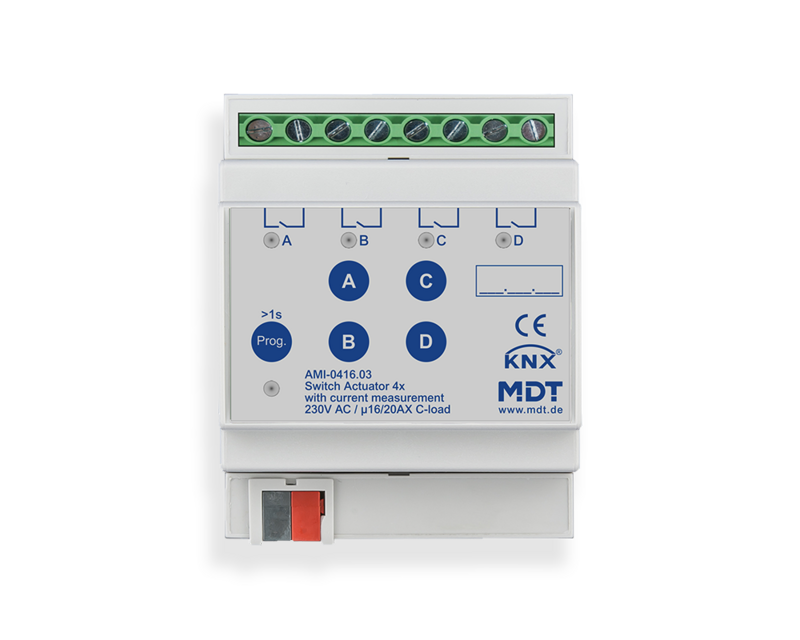

Switch Actuator AMI current measurement | series .03 (AMI-0416.03) - 4-fold Actuator
The Switch Actuator AMI current measurement | series .03 (AMI-0416.03) is a versatile and robust 4-fold actuator designed for industrial applications. With precise current measurement up to 20 amperes per channel and an integrated energy meter, this device provides comprehensive control and monitoring of electrical currents.
Key Features
- Integrated True RMS current measurement (range: 10 mA to 20 A)
- Built-in energy meter (Wh/kWh) for accurate monitoring
- Fast response (<1s) in Master/Slave operation
- Manual operation via push buttons and LED indicators per channel
- Time functions such as on/off delay and staircase lighting function
- Threshold switch function and consumption threshold value
- Logical linking of binary data, 8 scenes per channel
- Operating hours meter and extended status functions
- Adjustable behavior on bus voltage failure/return
Technical Specifications
- Output switching ratings: Ohmic load 16/20 A, Capacitive load 200 µF
- Maximum inrush current: 600 A / 150 µs, 300 A / 600 µs
- Maximum lamp loads: Incandescent lamps 3680 W, Halogen lamps 230 V 3680 W, Halogen lamps with electronic transformer 2000 W, Fluorescent lamps not compensated 3680 W, Parallel compensated fluorescent lamps 2500 W
- Output life expectancy (mechanical): 1,000,000 operations
- Total current carrying capacity: 64 A
- KNX interface: TP-256 with long frame support, from ETS 5
- Power supply: 230 V AC, KNX bus power
- Enclosure: IP20
- Installation: 35 mm DIN rail, 4 SU width
- Operating temperature range: 0°C to +45°C
The Switch Actuator AMI current measurement | series .03 (AMI-0416.03) is designed for fixed mounting on a 35 mm DIN rail in dry indoor spaces. The device is configured via ETS software and offers extensive options for time functions, logical links, and status notifications.
Important Note: Mixed operation of nominal and safety extra-low voltage (SELV) within the actuator is not permitted!
