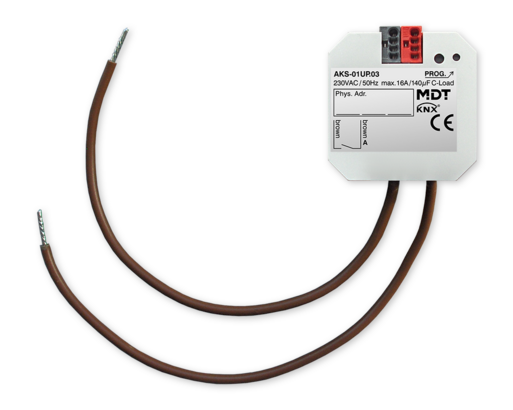

1 fold Switch Actuator AKS compact Flush mounted 16A C-load

74,10 Excl. tax €114,00 Excl. tax
€89,66 Incl. tax 137,94 Incl. tax.
Out of stock, but available Manual
Unit price: €74,10 / Piece
The AKS 1-fold flush-mounted switch actuator switches up to 16 A at 230 V AC via KNX. Programmable functions, logic, and timing settings are available via ETS. Available in 1- and 2-fold versions. Read more

Specifications

Brand:
MDT
Article number:
AKS-01UP.03
EAN:
4251916130756
Availability:
Out of stock, but available
Delivery time:
Will be shipped within approximately 8 working days.

Information

Datasheet

AKS 1-fold Flush-Mounted Switch Actuator, 230 V AC, 16 A

The AKS series flush-mounted switch actuators from MDT are designed for switching electrical loads via KNX. This 1-fold switch actuator can switch up to 16 A at 230 V AC and offers extensive programmable functions that can be configured via ETS.

Main Features:

  • Bistable relay for high inrush currents, suitable for switching high loads (C-Load).
  • Individually programmable channels via ETS.
  • Logical functions, status feedback, blocking functions, central switching functions.
  • Comprehensive timing functions such as switch-on/off delays and staircase lighting functions.
  • Scene functions available.
  • Retention of relay positions during bus voltage failure, individually configurable upon bus power return.

Technical Specifications:

  • Dimensions (W x H x D): 41 mm x 41 mm x 22 mm
  • Number of outputs: 1
  • Maximum switching capacity: 16 A at 230 V AC
  • Maximum inrush current: 600 A / 150 µs, 250 A / 600 µs
  • Maximum load: 2500 W (incandescent lamps), 1500 W (halogen lamps, electronic transformers)
  • Max. number of electronic ballasts: 20
  • Enclosure: IP20
  • Operating temperature range: 0 ... 45 °C
  • Power supply: KNX Bus
  • Power consumption KNX bus: typ. < 0,3 W
  • Protection: 16 A fuse

For project design and commissioning of the MDT Switch Actuator AKS, ETS is required. You can download the database from the MDT website.
